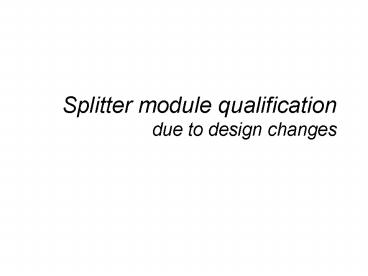

Splitter module qualification due to design changes

1
Splitter module qualificationdue to design
changes
2
Splitter module
Splitter component
Fiber input
Fiber output
3
Splitter component
Adhesive
Adhesive
Input Fiber Array
Output Fiber Array
Splitter chip
Splitter housing
4
Optical SplitterPossible major modifications

• Scenarios
• PLC chip
• Input Fiber array
• Output Fiber array
• The housing structure and interface adhesives
  remain the same
• The qualification tests are performed at the
  component, not module, level
• The combination of a fiber array (input or
  output) and PLC chip will be treated as a new
  device, and will be qualified as option A in the
  splitter/module design changes

5
All required optical measurements include

• Optical band-pass from 1260 to 1625 nm
• Insertion loss
• Uniformity (derived from the insertion loss
  measurement)
• Return loss of the input port
• Directivity
• Polarization Dependent Loss
• all at 1310nm, 1490 nm, 1550nm, 1625nm
• Polarization Mode Dispersion at 1550nm (due to
  lack of calibration standards at the other
  wavelengths)

6
Qualification due to Fiber Array change
(scenarios 2 and 3) input and/or output fiber
array

• 7 1x32 and 7 1x16 splitters for each group
  (component level)
• 11 units for each group if a single product is
  qualified
• Initial characterization
• Insertion loss
• Qualification per GR 1221 groups B and E
  (partial)
• Final characterization
• Insertion loss

7
Qualification due to Fiber array changeGR 1221
Environmental testing
Group Test Initial Measurem. Interim Measurem. Final Measurem.
E partial Temp Cycling -40 to 85 oC, 500 cycles Section 6.2.7 Cyclic moisture resistance portion not required NA 100 cycles 500 cycles
B High Temperature Storage (Damp Heat) 85 oC, 85 RH, 2000 hrs Section 6.2.5 500 hrs 1000 hrs 2000 hrs
8
Qualification due to PLC chip change(scenario 1)
GR 1209 Seven (7) 1x32 and seven (7) 1x16 splitter components or 11 if a single product is qualified Initial optical characterization Optical bandpass from 1260 to 1625 nm, Insertion loss, Uniformity, Return loss of the input port, Directivity, Polarization Dependent Loss _at_ 1310nm, 1490 nm, 1550nm, 1625nm and Polarization Mode Dispersion at 1550nm. Sequential environmental testing with active monitoring of IL (per slide 9) Final characterization Optical bandpass from 1260 to 1625 nm, Insertion loss, Uniformity, Return loss of the input port, Directivity, Polarization Dependent Loss _at_ 1310nm, 1490 nm, 1550nm, 1625nm and Polarization Mode Dispersion at 1550nm.
GR 1221 Seven (7) 1x32 and seven (7) 1x16 splitter components or 11 if a single product is qualified Initial optical characterization Optical bandpass from 1260 to 1625 nm, Insertion loss, Uniformity, Return loss of the input port, Directivity, Polarization Dependent Loss _at_ 1310nm, 1490 nm, 1550nm, 1625nm and Polarization Mode Dispersion at 1550nm. Group B High temperature storage (Damp heat) for 2,000 hours Interim measurements at 500, and 1,000 hours Section 6.2.5 Final optical characterization Insertion loss, Return Loss
9
Qualification due to PLC chip changeGR 1209 test
requirements
Test Condition Section
Temperature-humidity aging 7 days _at_ 85 oC, 85 RH 5.4.1.1
Temperature cycling 10 cycles from -40 to 85 oC 5.4.1.5
Temperature humidity cycling 42 cycles from -40 to 85 oC 5.4.2.2
Water immersion 7 days at 42 oC 5.4.2.3
Mechanical tests Fiber integrity, mechanical shock and vibration None 5.4.1.3 5.4.1.2 5.4.3.1 to 5.4.3.4
10
Qualification due to PLC chip change(scenario 1)
Group Test Initial Measurem. Interim Measurem. Final Measurem.
B High Temperature Storage (Damp Heat) 85 oC, 85 RH, 2000 hrs Section 6.2.5 500 hrs 1000 hrs 2000 hrs
11
Qualification due to splitter/module design
changes

• Option A
• Splitter not qualified
• Module remains the same
• Options B
• Splitter qualified by any supplier
• Module not qualified
• Option C
• Splitter not qualified
• Module not qualified
• Complete test program

12
Option AModule previously qualified, new
splitter component
GR 1209 1x32 (7) Modules (7) Hot Spares 1x16 (7) Modules (7) Hot Spares or 11 Modules (11) Hot Spares if a single product is qualified Initial optical characterization Optical bandpass from 1260 to 1625 nm, Insertion loss, Uniformity, Return loss of the input port, Directivity, Polarization Dependent Loss _at_ 1310nm, 1490 nm, 1550nm, 1625nm and Polarization Mode Dispersion at 1550nm. Sequential environmental testing with active monitoring of IL (as outlined in GR) Fiber integrity test will not be performed, since they are affected by the module design Final characterization Optical bandpass from 1260 to 1625 nm, Insertion loss, Uniformity, Return loss of the input port, Directivity, Polarization Dependent Loss _at_ 1310nm, 1490 nm, 1550nm, 1625nm and Polarization Mode Dispersion at 1550nm.
GR 1221 Five groups of seven (7) 1x32 and seven (7) 1x16 splitter modules, or as specified in section below or 11 splitter modules if a single product is qualified Initial optical characterization For groups A, B, C Optical bandpass from 1260 to 1625 nm, Insertion loss, Uniformity, Return loss of the input port, Directivity, Polarization Dependent Loss _at_ 1310nm, 1490 nm, 1550nm, 1625nm and Polarization Mode Dispersion at 1550nm For groups D, E Insertion loss Qualification of groups A, B, C, D and E Final characterization Insertion Loss
13
Option A GR 1209 test requirementsModule
previously qualified, new splitter component
Test Condition Section
Temperature-humidity aging 7 days _at_ 85 oC, 85 RH 5.4.1.1
Temperature cycling 10 cycles from -40 to 85 oC 5.4.1.5
Temperature humidity cycling 42 cycles from -40 to 85 oC 5.4.2.2
Water immersion 7 days at 42 oC 5.4.2.3
Mechanical tests Fiber integrity, mechanical shock and vibration None, since these tests are affected by the module design 5.4.1.3 5.4.1.2 5.4.3.1 to 5.4.3.4
14
Option A GR1221Module previously qualified,
new splitter component
Group Condition Section Hot Spares
A High-Temp. Storage - Dry Heat 6.2.4 0
B High-Temp. Storage - Damp Heat 6.2.5 0
C Low-Temp. Storage 6.2.6 0
D Mechanical shock followed by variable frequency vibration 6.2.1 6.2.2 2
E Cyclic moisture resistance followed by temperature cycling (500 cycles) 6.2.7 6.2.8 2
15
Option B GR 1209New Module, splitter
previously qualified
GR 1209 1x32 (7) Modules 1x16 (7) Modules or 11 Modules if a single product is qualified Initial optical characterization Insertion loss and return loss Sequential environmental testing with active monitoring of IL (as outlined in GR per slide 15) Fiber integrity test Final characterization Insertion loss and return loss.
GR 1221 No additional samples will use the same samples already tested per GR1209 Qualification as per group D, mechanical shock followed by variable frequency vibration (per slide 15)
16
Option B GR 1209New Module, splitter
previously qualified
Test Condition Section
Initial optical measurements Insertion and return loss _at_ 1310, 1490, 1550 and 1625 nm
Temperature-humidity aging 7 days _at_85 oC, 85 RH GR1209 5.4.1.1
Temperature humidity cycling 42 cycles from -40 to 85 oC GR1209 5.4.2.2
Mechanical shock followed by variable frequency vibration GR1221 6.2.1 6.2.2
Fiber integrity Fiber Flex Fiber Twist Fiber Side Pull Fiber/cable retention GR1209 5.4.3.1 5.4.3.2 5.4.3.3 5.4.3.4
Final optical measurements Insertion and return loss _at_ 1310, 1490, 1550 and 1625 nm
If the initial and final optical measurements
dont conform to the specifications, all required
optical measurements should be performed
