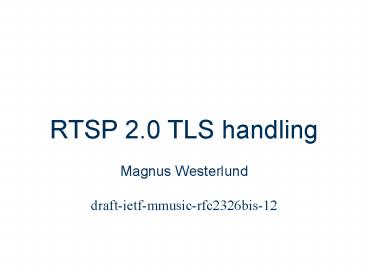

RTSP 2.0 TLS handling

1
RTSP 2.0 TLS handling

• Magnus Westerlund
• draft-ietf-mmusic-rfc2326bis-12

2
Real-Time Streaming Protocol

• Signalling protocol for controlling streaming
  sessions, i.e. the network remote control.
• Media normally goes in its own transport session
  over UDP. Exception is the interleaved mode,
  which is last resort fall back solution.
• Has a rtsps URI scheme to indicate the
  requirement to use TLS protected signalling.
• Normal TLS usage is defined in section 18.2
• Uses the guidelines from RFC 2818

3
RTSP and Proxies

• Some environement requires proxies
• Firewalls need to open pinholes for the media
• Logging or content filtering of some media
  content
• Many of these cases can accept a trust model
  where the proxy is trusted. This due to the close
  association with it, like your companies.
• Defined a mechanism for handling multiple TLS
  hops by either
• have the proxy relay the next hop server
  certificate to the client and have it approve the
  certificate.
• let the proxy determine which certificates to
  accept
• accept any certificate (Debugging only)

4
TLS connect walkthrough

1. Client connects with TLS and send Request to
   proxy.
2. Proxy Connects with TLS to server and get server
   side certificate.
3. Proxy responds to request with 470 (Connection
   Authorization Required), and include certificate.
4. Client checks certificate, and accepts it by
   including a hash of the certificate and proxy URI
   in the Accept-Credentials header and resend the
   request.
5. Proxy matches hash with connection and forwards
   request in TLS.

Server
2.
5.
Proxy
1.
3.
4.
Client
5
Open Issue in Accept-Credentials

• The Accept-Credentials header is sent as part of
  the request when needed.
• Each entry within the Accept-Credentials headers
  has an intended proxy.
• Should that proxy remove the entry intened for
  itself before forwarding the request?
• Doing the above procedure rather then having them
  go end to end would
• Reduce bandwidth in requests
• Slightly increase processing load
• Hide earlier TLS hops from later RTSP agents
• The Via header shows route, however it allows for
  a proxy to hide topology
• Any security implications?

6
Request for Review

• Document is getting close to WG last call in
  MMUSIC WG
• Want to have review on the security mechanisms
  before that to avoid to late suprises
• Please review section 18 and send comments to
  authors and MMUSIC WG.
