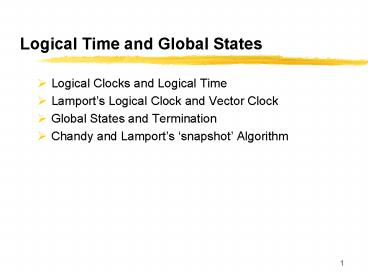

Logical Time and Global States

1
Logical Time and Global States

• Logical Clocks and Logical Time
• Lamports Logical Clock and Vector Clock
• Global States and Termination
• Chandy and Lamports snapshot Algorithm

2
Logical Time and Logical Clock

• Logical time Vs. absolute time (from UTC)
• To obtain the absolute time Require frequent
  clock synchronization. Frequent clock
  synchronization incurs heavy overheads, i.e.,
  short synchronization period gt many
  synchronization messages
• For many systems, it is sufficient that a group
  of related machines in the system agree on the
  same logical time, i.e., for events ordering
• In many applications (i.e., non-real-time), it is
  not essential that the logical time agrees with
  the absolute time as announced on the broadcast
  stations
• Also, for two processes, if they are unrelated,
  their occur times are unrelated
• Event ordering
• If two events occurred at the same process pi,
  they occurred in the order in which pi observes
  them, i.e., e1 then e2
• If a message is sent between two processes, the
  event of sending the message occurs before the
  receipt of the message, i.e., send before receive
• Partial ordering gt NOT total ordering, also
  called casual ordering

3
Logical Time and Logical Clock

• Lamport causal ordering x-P-gty means x happened
  before y in process P
• happened-before (HB) -gt (precedence
  relationship)
• HB1 If for process P x-P-gty, then x-gt y.
• HB2 For the same message m, send(m)-gtreceive(m)
• HB3 If x, y, and z are events, x-gty, y-gtz then
  x-gtz (transitive)
• I.e. a -gtc b-gt d
• How about the event order between a and e?
  Nothing can be said
• They can be done in any order or even in parallel
  a e (i.e., partial order)

p1
b
a
m1
p2
c
d
m2
e
f
p3
4
Logical Time and Logical Clock

• Logical clock are used to capture happened-before
  ordering
• If e is defined to be happened-before e, i.e., e
  -gt e gt L(e) lt L(e)
• I.e., L(e) the logical clock value at the occur
  time of event e
• A logical clock needs not bear any particularly
  relationship with physical clock but it needs to
  be monotonic (i.e., increasing)
• Each process/computing unit just keeps its own
  (local) clock Cp to timestamp events
• The timestamp is monotonic and the initial value
  may be zero (or any number/integer)
• What is the maximum bound of a logical clock
  integer?
• Does it need to be reset at after reaching the
  maximum value?
• Notation Use Lp(a) and Lp(b) to timestamp events
  a and b happen in process p and L(b) for event b
  at whatever process it occurred
• If a happens before b in the same process, Lp(a)
  lt Lp (b)
• If a and b represent the sending and receiving of
  a message, respectively, L(a) lt L(b)
• For all distinctive events a and b, L(a) ltgt L(b)

5
Logical Time and Logical Clock

• Logical clock update and transmission rules
• Logical clock rule 1
• Lp is incremented before each event is issued at
  p Lp Lp1
• Logical clock rule 2
• When p sends a message m, it piggybacks on m the
  value t Lp
• On receiving (m, t), a process q computes
  Lqmax(Lq, t) and then applies rule 2 before
  timestamping the event receive(m)
• Why increment the value by 1 instead of a larger
  number or even a negative number?
• All clocks run at the same rate, every time
  increases the value by one
• Could they run at different rates? One clock
  advances by 1 before each event but others
  advance by 10 before each event
• Could they run at variable rate? Sometimes faster
  and sometimes slower
• A process consists of a sequence of events gt a
  sequence of states
• After finishing an event, the process enters a
  state
• Each process state is associated with a logical
  clock (a timestamp)
• e -gt e gt L(e) lt L(e) but the converse is not
  always true. L(e) lt L(e) ???

6
Lamports Logical Clocks
Note there is no increment after receiving the
messages. Is it a problem? What are the rates of
the logical clocks?
Fr. Tanenbaum

• Three processes, each with its own local clock
• Note, the logical clocks run at different rates.
  Between two events, the physical clock tick must
  at least advance once

7
Lamports Logical Clocks

• Lamports algorithm corrects the clocks
• Lamports algorithm can only achieve partial
  ordering
• Non-related events are unordered. What are
  non-related events?
• What are related events?

Fr. Tanenbaum
8
Lamports Logical Clocks
Fr. Tanenbaum
The positioning of Lamports logical clocks in a
distributed system (middleware)
9
Total Order and Logical Clock

• Partial order to total order (changing a set of
  partial orders to a total order)
• Total order e1-gte2-gt -gten (all pair of events
  are ordered)
• Assign a unique timestamp to each process
  (following the Lamports algorithm in timestamp
  assignment, e-gte gtTS(e) lt TS(e))
• For any two events (even unrelated), you can
  determine their orderings based on the timestamps
  assigned
• Why? I.e., comparing their timestamps for data
  synchronization
• Totally ordered logical clocks (how? Adding
  process id)
• For pairs of distinct events, we take process id
  in setting the timestamps
• If a is an event occurring at pa with local
  timestamp Ta, and b is an event occurring at pb
  with local timestamp Tb
• Define the global logical timestamp for those
  events as (Ta, a) and (Tb, b), respectively
• (Ta, a) lt (Tb, b) if and only if either Ta lt Tb
  or (Ta Tb and pa lt pb)
• Note this method is just to serialize the
  ordering of a set of events. Event a may not
  really execute before event b in real time
• Making each process has a unique time-stamp
  (total order)
• TS(Pa) gt TS(Pb) or TS(Pa) lt TS(Pb) but NOT TS(Pa)
  ltgt TS(Pb)

10
Example Totally-Ordered Multicasting

• Multicast A message is sent to multiple
  receivers
• Totally-ordered multicast all multicast messages
  are delivered in the same order to each receiver
• For example, to improve query performance, a bank
  may place copies of an account database in two
  different cities, say A and B
• A customer in B wants to add 100 to his account
  that currently contains 1,000 (update 1)
• At the same (similar) time, a bank employee in A
  initiates an update by which the customers
  account is to increase with 1 interest (update
  2)
• Both updates should be carried out at both copies
  (in A and B) of the database (no locking or
  synchronization)
• If update 2 is performed before update 1 in A,
  the A database records 1,110
• If update 1 is performed before update 2 in B,
  the B database records 1,111
• An inconsistency occurs if the two updates are
  not performed in the same order at the two sites
• Solution Using the Lamports algorithm to assign
  logical times to implement totally-ordered
  multicast (for update messages), so that the
  update operations are performed in the same order
  at each copy. How?

11
Example Totally-Ordered Multicasting

• Updating a replicated database and leaving it in
  an inconsistent state.

To ensure the two updates are performed in the
same order at each site. How?
12
Example Totally-Ordered Multicasting

• Each update generates two updates to update the
  two copies of the record
• We have four combinations of the execution orders
  at the two sites

• Execution order I
• City A
• Update 2 gt 1010
• Update 1 gt 1110
• City B
• Update 1 gt 1100
• Update 2 gt 1111
• Execution order II
• City A
• Update 1 gt 1100
• Update 2 gt 1111
• City B
• Update 2 gt 1010
• Update 1 gt 1110

• Execution order III
• City A
• Update 2 gt 1010
• Update 1 gt 1110
• City B
• Update 2 gt 1010
• Update 1 gt 1110
• Execution order IV
• City A
• Update 1 gt 1100
• Update 2 gt 1111
• City B
• Update 1 gt 1100
• Update 2 gt 1111

13
Totally-Ordered Multicasting Using Logical Time

• For a group of processes, multicasting messages
  to each other, we assume
• Each message is time-stamped with the current
  logical time of its sender
• The sender is also a receiver of its own sending
  message
• The messages from the same sender are received in
  the order they were sent, and no messages are
  lost
• When a process receives a message, it is put into
  a local queue, ordered according to its timestamp
• The receiver multicasts an acknowledgement to the
  other processes. The timestamp assigned to the
  acknowledgement according to the Lamports
  algorithm and is larger than the timestamp of the
  original message

14
Totally-Ordered Multicasting Using Logical Time

• A process can deliver a queued message to the
  application it is running only when the message
  is at the head of the queue and has been
  acknowledged by each other process
• Thus, all the processes will eventually have the
  same copy of the local queue ordered by Lamports
  timestamps
• The Lamports algorithm ensures that no two
  messages have the same timestamp, and the
  timestamps reflect a consistent global order of
  the events, e-gte gt TS(e) lt TS(e)
• Therefore, all messages are delivered in the same
  order everywhere. That is, we have established
  totally-ordered multicasting
• Problems The delay in update and higher
  communication overhead
• How to solve the problem of loss of messages?

15
Totally-Ordered Multicasting Using Logical Time

• Site B
• Receive Update 1
• Generate M1 and sends to site A and itself
• Receive Ack 1 from A
• Receive M2 containing Update 2
• Generate Ack 2 and sends to site A
• Compare the timestamps of M2 with Update 1
• Process Update 1
• Site A
• Receive Update 2
• Receive M1 containing Update 1
• Generate Ack 1 and send to site B
• Generate M2 and sends to site B and itself

Local queue Update 1 Ack 1,A Update 2
Local queue Update 1 Ack 1,A Update 2
16
Vector Clock

• Shortcoming of Lamports algorithm L(e) lt L(e)
  cannot conclude e-gt e
• Using a unique (total order) timestamp from the
  Lamports algorithm cannot solve this problem.
  Why?
• In the previous example, we serialize a set of
  events and the sequence order may not be the same
  as their execution orders following the absolute
  time
• Causality can be captured by vector timestamp
  (clock)
• If L(e) lt L(e) then e-gt e
• How to achieve this?
• What are the differences in implications between
• (1) If L(e) lt L(e), then e-gt e
• (2) If e-gt e, then L(e) lt L(e)
• With (1), by checking the time-stamps, the system
  can determine the event orders. Note for some
  cases, the events are unordered
• (2) is to assign time-stamps to the events based
  on their event orders
• Vector clock for a system with N processes is an
  array of N integers for each process
• Each process Pi keeps its own vector clock Vi to
  timestamp its local events
• Processes piggyback vector timestamps on the
  messages they send

17
Vector Clock

• Rules
• VC1 Initially Vi j 0 for i, j 1, 2, , N
• VC2 Just before pi timestamps an event, it sets
  Vi i Vi i 1
• VC3 pi includes the value t Vi i in every
  message it sends
• VC4 When pi receives a timestamp t in a message,
  it sets Vi j max(Vi j, tj), for j 1,
  2, N (merge operation)
• Two properties
• For a vector clock Vi , Vi i is the number of
  events that pi has time-stamped (why?)
• Vi j (j ltgt i) is the number of events that have
  occurred at pj that pi has recorded (why?)
• Based on a message m, a timestamp vt of m tells
  the receiver how many events in other processes
  have preceded m and on which m may causally
  depends on

18
Vector Clock

• V V iff Vj Vj for j 1 , 2, , N
• V lt V iff Vj lt Vj for j 1, 2, , N
• V lt V iff V lt V and V ltgt V
• e-gte gt V(e) lt V(e)
• V(e) lt V(e) gt e-gt e
• Compare events a with f
• Compare events c with e
• What are the cost and benefit comparing with the
  Lamports logical clock?

19
Global State

• Event S gt (e) gt S. An event changes the state
  of a process
• To get the states of a process, record and
  time-stamp the state of the process after each
  event has been served
• How to get the state of a distributed system
  (distributed processes)?
• Collect the states of all the processes in the
  system. How?
• Not so simple due to communication delay and
  changing process states
• What are the purposes of getting the global
  state of a distributed system?
• Examples detect the termination of a distributed
  computation, garbage collection, verification of
  a program correctness and deadlock detection,
  etc.
• Garbage collection no process (including message
  in transit) is referring to the object which may
  be collected as a garbage
• Deadlock two or more processes are
  blocked/waiting. They are blocking each other
• Termination when to terminate a process?
  Inactive and will not become active again. It may
  be waiting a message

20
Detecting Global Properties
21
Global State

• Global state of a distributed system The local
  state of each process, and the messages that are
  currently in transit (the state is distributed)
• How to obtain the global state of a distributed
  system?
• The collection takes time and cannot be done
  instantaneously. Why?
• Distributed snapshot reflects a (consistent
  global) state in which the DS might have been (at
  a particular time point?)
• What is a snapshot? (at a particular time point)
• But, the snapshots are distributed
• Cut A graphical representation of global state,
  as shown in the next slide
• What is the implication of a cut? A distributed
  snapshot
• Inconsistent state Incorrect state
• I.e., a snapshot contains a receipt of a message
  but not the sending of the message
• What is the implication of an inconsistent state?
  Incorrect state may generate incorrect results

22
Global State

• Problems of obtaining a global state
• Lack of global clock (what is the state to be
  collected from each site to form the global
  state/global snapshot?) If you have a global
  clock,
• Transmission delay Vs. always changing statues of
  processes
• We consider two types of events
• Internal events of a process, i.e., logic
  operations and computations
• Communication events sending and receiving of
  messages
• History(pI) hi lte1,I, e1,I, gt
• A prefix history hi,k lte1,I, e1,I, , ek,igt
• sk,i is the state of process pi immediately
  before the kth event occurs from the initial
  state s0,i -gt -gt sk,i
• s0,i is the initial state of pi. After the
  occurrence of each event, a new state is created
  for a process, ek,i gt sk,i
• Global history H h1 U h2 U hn, the union of
  all process histories

23
Global State and Consistent Cut

• A consistent cut
• An inconsistent cut

24
Global State and Consistent Cut

• How to collect the states/distributed snapshot
  from distributed processes? Follow a cut
• A cut of the systems execution is a subset of
  its global state S that is a union of prefixes of
  process histories C h1,c1 U h2,c2 U U hn,cn
• The state si in S corresponding to C is that of
  pi immediately after the last event processed by
  the cut ei,ci
• The set of events ei,ci i 1, 2, , N is
  called the frontier of the cut C
• A cut C is consistent if for each event it
  contains. It also contains all the events that
  happened-before that event e belong C, f -gt e gt
  f belong C
• A consistent global state is one that corresponds
  to a consistent cut S0 -gt S1 -gtS2-gt Each
  transition represents an event occurred in one of
  the processes in the system
• A run is a total ordering of all the events in a
  global history that is consistent with each local
  history ordering
• A linearization (consistent run) is an ordering
  of the events in a global history that is
  consistent with happened-before relationship -gt
  on H
• S is reachable from S if there is a
  linearization that passes through S and then S
  (from state S to S. What is the implication if
  S is not reachable from S?)

25
Global State and Consistent Cut
L1 e1,0 e2,0 e1,1 e1,2, e1,3 e2,1 e2,2 L2
e1,0 e1,1 e2,0 e2,1 e1,2 e2,2 e1,3 L1
L2 S is reachable from S if there is a
linearization that passes through S and the S
26
Global State Predicates

• Global state predicate is a function that maps
  from the set of global states of processes in the
  system to True False
• Stability once the system enters a state in
  which the predicate is true and it remains True
  in all future reachable from that state
• Once the system enters the state and the
  predicate becomes true, it will remain true in
  all future states reachable from that state
• I.e., Deadlock and garbage collection
• Safety Let S0 be the original state of the
  system. Safety with respect to a is the assertion
  that a evaluates to False for all state S
  reachable from S0
• There is an undesirable property a (deadlocked)
  that is a predicate of the systems global state.
  Safety respect to a is that the assertion that a
  evaluates to false for all states S reachable
  from the initial state S0
• Liveness with respect to ß is the property that
  for any linearization L starting in the state S0,
  ß evaluates to True for some state SL reachable
  from S0. ß may be a desirable and reachable
  property

27
Chandy Lamports snapshot Algorithm

• Goal to record a set of processes and channel
  states for a set of processes pi such that even
  though the combination of recorded states may
  never have occurred at the same time, the
  recorded global state is consistent
• What is a channel state? State of a process
  including the messages that are in transmission
• Assumptions
• The communication amongst the processes are
  reliable and messages are delivered in order
• No process or communication failure
• Channels are unidirectional and provide FIFO
  transmission
• Any process may initiate a global snapshot at any
  time
• The graph of processes and channels is strongly
  connected
• The processes may continue execution while the
  snapshot takes place
• Incoming channels for process pi are those
  channels that other processes send messages to pi
• Outgoing channels for process pi are those
  channels that pi sends messages to other
  processes
• Each process records its state and also for each
  incoming channel a set of messages sent to it

28
Chandy Lamports snapshot Algorithm

• Any initiating process, say P, may start by
  recording its own local state then it sends a
  marker along each of its outgoing channels
• When a process P receives a marker from an
  incoming channel C,
• If P has not saved its local state, it first
  saves the state, then sends a marker along each
  of its own outgoing channels
• If P has recorded the local state, it records the
  state of channel C the sequence of messages that
  have been received by P since the last time P
  recorded its local state, and before it received
  the marker
• When a process has received a marker along each
  of its incoming channels, and processed each one,
  its recorded local state and state of each
  channel are collected and sent to process P
• Because any process can initiate the algorithm,
  several snapshots can be constructed at the same
  time. To identify different processes of snapshot
  construction, a marker can be tagged with
  identifier (even version) of process that
  initiates the snapshot

29
Chandy Lamports snapshot Algorithm
Marker receiving rule for process pi On pis
receipt of a marker message over channel c if
(pi has not yet recorded its state) it records
its process state now records the state of c as
the empty set turns on recording of messages
arriving over other incoming channels else pi
records the state of c as the set of messages it
has received over c since it saved its
state end if Marker sending rule for process
pi After pi has recorded its state, for each
outgoing channel c pi sends one marker message
over c (before it sends any other message over
c)
30
Global State

• Organization of a process and channels for a
  distributed snapshot

31
Global State

• Process Q receives a marker for the first time
  and records its local state
• Q records all incoming message
• Q receives a marker for its incoming channel and
  finishes recording the state of the incoming
  channel

32
Chandy Lamports snapshot Algorithm

• The biggest problem on getting a distributed
  snapshot is how to collect the states of other
  processes and those messages in transmission
• No message is received but the sending process is
  not included in the distributed snapshot
• The marker is like a cut on the state of a
  process
• All other processes follow the same cut sequence
  (cut after the first cut) to collect their states
• The marker sending rule obligates processes to
  send a marker after they have recorded their
  state
• The marker receiving rule obligates a process
  that has not recorded its state to do so
• If a process that has already saved its state
  receives a marker, it records the state of the
  channel as the set of messages it received on it
  since it saved its state
• What are the importance of reliable communication
  and in order transmission?

33
Two processes and their initial states
P2 has already received an order for five
widgets, which it will shortly dispatch to P1
34
The execution of the processes
35
Chandy Lamports snapshot Algorithm

• Process P1 records its state in the global state
  S0, when P1s state is lt1000, 0gt
• Following the marker sending rule, P1 emits a
  marker message over its outgoing channel c2
  before it sends the next application-level
  message (order 10, 100) over channel c2. Global
  state S1
• Before P2 receives the marker, it emits an
  application message (five widgets) over c1 in
  response to P1s previous order. Global state S2
• Process P1 receives P2s message (five widgets),
  and P2 receives the marker. Following the marker
  receiving rule, P2 records its state as lt50,
  1995gt and that of the channel c2 as empty
  sequence. Following the marker sending rule, it
  sends a marker message over c1
• When P1 receives P2s marker message, it records
  the state of channel c1 as the single message
  (five widgets) that it received after it first
  recorded its state. Global state S3
• The final recorded state P1 lt1000,0gt P2
  lt50, 1995gt c1 lt(five widgets)gt c2 ltgt

36
References

• Dollimore ch 11.5
• Tanenbaum ch 5.2 to 5.3
