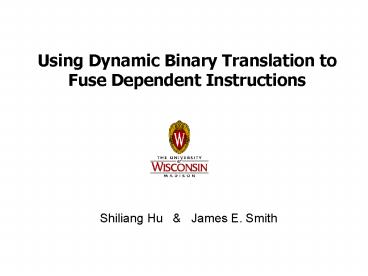

Using Dynamic Binary Translation to Fuse Dependent Instructions

1
Using Dynamic Binary Translation to Fuse
Dependent Instructions

• Shiliang Hu James E. Smith

2
Outline

• Introduction
• Fused Instruction Set
• Fusing Algorithm
• Evaluation
• Conclusion

3
MicroArchitecture Model

• Dependence-based Architectures ILDP ISCA02
  etc.
• Fuse dependent instruction pairs to be processed
  as if single Introductions in the processor
  pipeline
• Both higher IPC and deeper pipelining can be
  achieved simultaneously.
• Original proposal by I.Kim and M. Lipasti
  Macro-op Scheduling MICRO03 (Hardware
  Intensive, RISC)
• Other related work on pipelined scheduling logic.


4
Pipelined Scheduling Window

• Critical path in select-wakeup for single cycle
  instructions If producer has latency gt 1, then
  wakeup can be done a cycle late gt wakeup and
  select in different pipe stages

Reax ? memResi 4 Reax ? memResi
4 Select Select Wakeup
Wakeup Reax ? Reax 7 Reax ? Reax 7
Rebx?ReaxRebx Select Wakeup
Select Rebx ? Reax Rebx
Wakeup Selcct Wakeup Recx ? Rebx
4 Recx ? Rebx 4
5
Performance Implications

• Pros
• Effectively larger scheduling window by holding
  two instructions in the same window slot.
• Effectively wider issue by issuing one slot with
  two fused instructions, two dependent
  instructions are kicked off for execution with a
  single issue decision.
• Can pipeline the scheduling logic without a heavy
  penalty if there is high fusing rate.
• Cons
• Non-fused single cycle instructions have two
  cycle latency.
• If the head (the 1st instr. in the pair) provides
  value to another critical consumer most values
  are consumed only once.
• If the tail (the 2nd instr. in the pair) has a
  critical dependence, slows down the wakeup of the
  pair.

6
Co-Designed Virtual Machine

• Concurrently design ISA, microarchitecture, and
  dynamic binary translation (DBT) system
• Examples -- Transmeta Crusoe Efficeon
  processors IBM DAISY, BOA.
• Our Design for x86
• RISC-style implementation ISA with fuse bit
• Fetch straightened code generated by fast DBT
• Run on an enhanced dynamic superscalar

7
Implementation Instruction Set

• Allocate 1-bit of each instruction, the fuse bit,
  to fuse two instructions in the pipeline
• Dense Instruction Encoding 16/32 bit instruction
  set design
• Features specialized for efficient emulation of
  the x86 ISA long immediates, condition code,
  addressing modes etc

8
Fused Instruction Set
9
An Illustrative Example
10
Dynamic Binary Translation

• Goals Simple, Fast Effective
• Hot Superblock detection and formation
• Translation from x86 binary to fused instruction
  set
• Code cache placement linking among superblocks
  in the code cache

11
Hot Superblock Detection Formation

• Modified MRET (Most Recently Executed Tail) --
  Stop at indirect jumps. Threshold 32. Max Len
  256.

12
Translation Procedure
Single Pass Algorithm 1. Form superblocks using
Modified MRET method 2. Crack x86 instructions
into RISC-like abstract micro-ops 3. Perform
Cluster Analysis of long immediates and assign to
regs. 4. Generate micro-ops in the implementation
ISA 5. Fusing Algorithm Scan looking for
dependent pairs to be fused. Forward scan,
backward pairing. 6. Assign registers extend
live ranges for precise traps, use consistent
state mapping at superblock exits 7. Code
generation
13
Cluster Analysis

• Objectives
• Remove embedded long immediates in x86 binary.
• Reduce static and dynamic instructions.
• Long Immediate Conversion.
• Scan superblock looking for all long immediate
  values.
• Perform value clustering analysis and allocate
  registers to frequent long immediate values.
• Convert some x86 embedded long immeidates into
  register access or register plus a short
  immediate that can be handled in implementation
  ISA.

14
Fusing Algorithm

• Objectives
• Maximize fused dependent pairs
• Minimize non-fused single cycle ALU ops.
• Heuristics
• Only single cycle ALU ops can be a head.
• Fuse instructions that are close in the original
  sequence cracked from x86 binary.
• Fusing Algorithm
• Single pass forward scan.
• For each tail candidate, look backward in the
  scan for its head.

15
Dependence Cycle Detection

• All cases are generalized in (d) due to Anti-Scan
  Fusing Heuristic

16
Dynamic x86 Superblock Size

• Average superblock size is about 15 x86
  instructions, 20 RISC ops.
• String instructions are common in some x86
  applications.

17
Static Translation Size

• Variable length ISA is only about 33 bigger than
  x86 binary
• Fixed length ISA is 60 to 120 bigger than
  original x86 binary.

18
Long Immediate Values Converted

• Intra superblock conversion for now.
• Address Displacement is easier to convert, but
  not the general long immediate values.

19
Registers For Long Immediate

• Two or three registers are enough for 95
  dynamic superblocks.
• Most SPEC2000INT benchmarks need no more than 5
  registers

20
Scheduling Density

• Consistently high fusing rate across SPEC2000INT
  benchmarks.
• 1.5 Scheduling Density means more than 60
  instructions are fused

21
Non-Fused Instruction Profile

• Consistently low single cycle ALU leftovers
  across SPEC2000INT
• (23) X (35) means single cycle ALU ops are
  about 8 of all.

22
Distance Distribution of Fused Pairs

• Most pairs are consecutive or very close in the
  original cracked RISC ops cracked from x86
  superblock.

23
Code Re-organization

• More than 50 pairs are across x86 instruction
  boundaries.
• Single cycle ALU ops pairs is about 60

24
Source Register Operands

• 99 fusable pairs have no more than 3 source
  register operands.
• 95 fusable pairs have no more than 2 source
  register operands.

25
Conclusion

• High degree of fusing in typical x86 binary 60
  of all dynamic instructions
• Two source register operands are enough 95 of
  fusable dependent pairs.
• Non-fused instructions are mostly LD, ST, BR, FP
  and NOPs
• Little impact from pipelined issue
• Variable length ISA improves code density by 30
  in our case
• Co-Designed VM featuring fused instruction
  execution is promising ? Future work Complete
  the co-designed microarchitecture

26
Backup Dynamic Binary Translation

• Start program execution by interpretation
  identify hot (frequently executed) program
  paths
• Translate hot paths into translation cache
• If program control flow reaches already
  translated code, execute natively

Target translation found
Interpret
Not found (call-DBT instruction)
Native execution
Threshold
End of superblock Translation not found
End of superblock Translation found
Translate
DBT (VMM)
