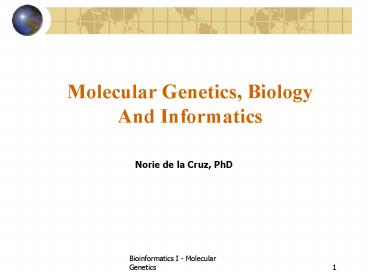

Molecular Genetics, Biology And Informatics

1
Molecular Genetics, Biology And Informatics

• Norie de la Cruz, PhD

2
Biology at the Movies

• Ian was right Life did find a way
• -- Michael Creighton (movie adaptation of
  Jurassic Park)

3
Biology at the Extremes

• Life is very creative
• archeans able to live at 120 degrees Celcius
• organisms able to transduce solar energy to
  chemicals
• creatures able to recycle its own waste products
  to amino acids
• creatures able to lift 50x their weight
• creatures able to contemplate themselvesCogito
  ergo sum

4
So where are the threads of commonality?

• Evolution
• Molecular Level genetic material

5
Genetic Materials exert their influence far and
wide

• Cell function
• Metabolism and homeostasis
• Development
• Apoptosis
• Reproduction
• Etc.

6
Natures creativity variations on variations

• Motifs
• Gene structures
• Sequence similarities
• Functional adaptation
• Alleles
• Etc.

7
Bioinformatics tries to make sense of natures
methodology

• Underlying themes gene structure
• Clustering of particular biological activities
  microarray analyses, proteomics, physionomics
• Defining motifs structure predictions
• Understanding the direction of change --
  phylogenetics
• Understanding the influence of molecular
  phenomena QTLs and diseases

8
Overview

• DNA and RNA and Proteins
• The Central Dogma of Molecular Biology
• Components of the gene
• Transcription and RNA processing
• Translation and post translational modifications
• Organization of DNA into chromosomes
• Genomes

9
DNA

• Deoxyribonucleic acid
• Double stranded backbone is made of sugar
  phosphate moieties
• Strands connected by nitrogen containing
  nucleotide bases

10
DNA
11
DNA
12
DNA and complementarity
13
DNA is capable of self-replication information
is copied
14
Organisms pass on information via DNA
15
Information in DNA can change evolution and
phylogeny
16
Information in DNA can be read gene expression
and RNA
17
RNA

• Ribonucleic acid
• Thymine -gt Uracil
• Types
• mRNA
• tRNA
• rRNA
• miRNA

18
RNA

• Single stranded
• Less stable than DNA
• Folds into complex structures
• Older than DNA
• Some RNAs posses catalytic activities to perform
  self-splicing

19
Proteins

• Chains of amino acids

20
Protein Secondary Structures

• Alpha Helices
• Beta Sheets

21
Protein Tertiary Structures
22
Protein Quaternary Structures
23
Information Flow the Central Dogma of Molecular
Biology

• The transfer of information from DNA to make a
  protein
• Transcription of DNA into mRNA
• Translation convert information encoded by mRNA
  into amino acid sequence

24
Central Dogma, cont.

• Tremendous number of enzymes needed to
• Uncoil DNA
• Transcribe
• Repair mismatches
• Splice exons together
• Transfer protect unstable mRNA
• Assemble amino acids
• Fold protein
• Etc, etc.

25
DNA

• Sequence data

sense
GGTCTTCTTGGGTGAGAATAACTTTAA
5
3
5
3
anti-sense
CCAGAAGAACCCACTCTTATTGAAATT
26
Transcription
sense
GGTCTTCTTGGGTGAGAATAACTTTAA
5
3
5
3
anti-sense
CCAGAAGAACCCACTCTTATTGAAATT
Transcription of anti-sense strand RNA polymerase
GGUCUUCUUGGGUGAGAAUAACUUUAA
5
RNA
27
Transcription

• Precisely controlled process
• Signals that control process part of the DNA
  sequence Genes
• Signals interact with various molecules to effect
  trascription

28
Gene Structure
29
Existence of Genes

• Want to identify potentially new genes
• Typical coding gene structure
• Non-coding genes vary more

30
Gene Elements

• Promoters/Repressors
• Enhancers
• Terminators
• Splice sites
• Removal of introns
• Exonic Splice Enhancers/Repressors
• Binding sites
• Gene-Gene, Gene-RNA, Gene-Protein interactions

31
Splicing Alternative Splicing

• Each exon is translated into mRNA sequence
• These are trimmed and spliced together
• The order of the splicing is crucial
• The same gene can be spliced in more than one
  way, producing multiple transcriptional units
  (TUs)
• Some researchers have proposed counting TUs
  rather than genes or loci to determine the number
  of genes in a given genome (this is why there is
  much controversy about counting genes)

32
Translating mRNA to proteins

• Occurs in the ribosome
• tRNA carries amino acids from cytoplasm to
  ribosome
• mRNA is the template for translation

codon
stop
mRNA
GGUCUUCUUGGGUGAGAAUAACUUUAA
5
G L L G
amino acid sequence
33
(No Transcript)
34
Translation

• Tightly controlled process involving plenty of
  control proteins and rRNAs
• Precisely defined starting position
  Shine-Dalgarno sequence in prokaryotes.
• Precisely defined ending points

35
Post translational processing

• Protein folds into a precise configuration
• Protein maybe chemically modified to control
  activity
• Protein interacts with other molecules to control
  activity, supply active ingredients
• Activity may also be controlled by degradation or
  compartmentalization

36
Information is in the sequence the secondary,
tertiary and quaternary structure heavily
dependent on the primary structure or the sequence

• Amino acids determine secondary structure due to
  propensities to form helixes and sheets
• Tertiary structure dependent on the interactions
  of helices and sheets, forces for interaction
  dependent on the nature and composition of the
  amino acids making up the secondary structures
• Ditto for quarternary structures and features
  that signal for post translational modifications

37
Genomes and Chromosomes

• Complete set of instructions for making an
  organism almost
• Prokaryotic genomes typically composed of one
  chromosome
• Human genome contains 3Bbp organized into 24
  distinct units called chromosomes
• Humans have 22 pairs of autosomes and 1 pair of
  sex chromosomes (XX in females, XY in males)
• Morphological examination of eukaryotic
  chromosomes possible
• Chromosomes contain roughly equal quantities DNA
  and protein
• Chromosomes contain DNA tightly wound around
  protein cores

38
Chromosomes and Genomes

• Genetic information is passed along packaged in
  chromosomes
• Genes are arranged linearly along the chromosomes
• Arrangement of genes and other elements within
  the chromosome is critical to proper functioning
  of the organism
• Inheritance patterns and the resulting
  characteristics of the organism present another
  area for bioinformatic analysis -- QTLs

39
Genomes are dynamic
40
Genomes are dynamic
E.coli K-12
E.coli O157 sakai

• Rearrangements
• Inversions
• Duplications
• Deletions
• Recombinations
• Transposition

S.typhi CT18
S.typhimurium LT2
IS maps
41
Genomes are dynamic
4.1 3.4
3.6-4.2
1.7 1.2
1.2 - 1.8
1.3 -1.8
42
Recap biological sequences can yield a lot of
information to bioinformatic scrutiny

• Composition and structure of genomic sequences
• Sequence similarity and divergence recurring
  themes and phylogeny
• Structure of genes
• Coding (protein producing)
• Non-coding (functional RNA)
• Predict structure
• RNA secondary/tertiary structure
• Protein secondary/tertiary structure

43
Is sequence everything? Dont bet on it, but
its a great place to start

• Proliferation of the omics
• Proteo
• Pheno
• Physio
• Pharamacogeno
