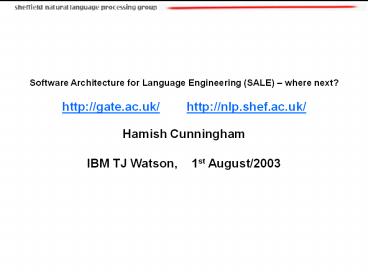

Software Architecture for Language Engineering (SALE)

1
Software Architecture for Language Engineering
(SALE) where next? http//gate.ac.uk/
http//nlp.shef.ac.uk/ Hamish Cunningham IBM
TJ Watson, 1st August/2003
2

• Structure of the Talk
• SALE and its context
• Definitions
• The Knowledge Economy and HLT
• Software Lifecycle
• GATE, a General Architecture for Text Engineering
• History
• Summary of Features and Principles
• Component-base development
• Unicode support
• Measurement
• CREOLE some components
• Users and Projects
• Where Next (give up and go home)?
• Future context
• Desirables
• Conclusion

3
SALE definitions

• Computational Linguistics science of language
  that uses computation as an investigative tool.
• Natural Language Processing science of
  computation whose subject matter is data
  structures and algorithms for human language
  processing.
• Language Engineering building systems whose cost
  and outputs are measurable and predictable.
• Software Architecture macro-level organisational
  principles for families of systems. In this
  context is also used as infrastructure.
• SALE software infrastructure, architecture and
  development tools for applied NLP and LE.

4

•


• The Knowledge Economy and Human Language
• Gartner, December 2002
• taxonomic and hierachical knowledge mapping and
  indexing will be prevalent in almost all
  information-rich applications
• through 2012 more than 95 of human-to-computer
  information input will involve textual language
• A contradiction formal knowledge in
  semantics-based
• systems vs. ambiguous informal natural language
• The challenge to reconcile these two opposing
  tendencies

5
IE and Knowledge Closing the Language Loop
KEY MNLG Multilingual Natural Language
GenerationOIE Ontology-aware Information
ExtractionAIE Adaptive IECLIE Controlled
Language IE
(M)NLG
Semantic Web Semantic GridSemantic Web
Services
Formal Knowledge(ontologies andinstance bases)
HumanLanguage
OIE
(A)IE
ControlledLanguage
CLIE
6


                          Software lifecycle in
collaborative research Project Proposal We
love each other. We can work so well together. We
can hold workshops on Santorini together. We will
solve all the problems of AI that our
predecessors were too stupid to. Analysis and
Design Stop work entirely, for a period of
reflection and recuperation following the stress
of attending the kick-off meeting in
Luxembourg. Implementation Each developer
partner tries to convince the others that program
X that they just happen to have lying around on a
dusty disk-drive meets the project objectives
exactly and should form the centrepiece of the
demonstrator. Integration and Testing The lead
partner gets desperate and decides to hard-code
the results for a small set of examples into the
demonstrator, and have a fail-safe crash facility
for unknown input ("well, you know, it's still a
prototype..."). Evaluation Everyone says how
nice it is, how it solves all sorts of terribly
hard problems, and how if we had another grant we
could go on to transform information processing
the World over (or at least the European business
travel industry).
7

•


• Where did GATE come from?
• Early- mid-1990s (e.g. in TIPSTER)
• Increasing trend towards multi-site collaborative
  projects
• Role of engineering in scalable, reusable, and
  portable HLT
• Support for large data, in multiple media,
  languages, formats, and locations
• Lower cost of creation of language processing
  components
• Promote quantitative evaluation metrics via tools
  and a level playing field
• GATE history
• 1996 2002 GATE version 1, proof of concept
• March 2002 version 2, rewritten in Java,
  component based, LGPL, more users
• Fall 2003 new development cycle

8
GATE is...

• An architecture A macro-level organisational
  picture for LE software systems.
• A framework For programmers, GATE is an
  object-oriented class library that implements the
  architecture.
• A development environment For language engineers,
  computational linguists et al, a graphical
  development environment.
• GATE comes with...
• Some free components... ...and wrappers for other
  people's components
• Tools for evaluation visualise/edit
  persistence IR IE dialogue ontologies etc.
• Free software (LGPL). Download at
  http//gate.ac.uk/download/

9

•


• Architectural principles
• Non-prescriptive, theory neutral (strength and
  weakness)
• Re-use, interoperation, not reimplementation
  (e.g. diverse XML support, integration of
  Protégé, Jena, Weka...)
• (Almost) everything is a component, and component
  sets are user-extendable
• (Almost) all operations are available both from
  API and GUI

10
Component-based development

• CREOLE a Collection of REusable Objects for
• Language Engineering
• Java Beans an OO way of chunking software
• GATE components modified Java Beans with XML
  configuration
• The minimal component 10 lines of Java, 10
  lines of XML, 1 URL
• Why bother?
• Allows the system to load arbitrary language
  processing components

11
CREOLE lifecycle

• Bootstrap stub Java class, Makefile, config
• Registration URL / JAR / creole.xml
• Instantiation class loading, parameterisation,
  bean object creation
• load-time parameters, e.g. a documents charset
• run-time parameters, e.g. a parsers lexicon
• Three types of beans (not a new religion!)
• Language Resources, e.g. doc, corpus, lexicon
• Processing Resource, e.g. tagger, stat modeller
• Visual Resource, e.g. doc editor, syntax editor

12
Language Resources (LRs)

• GATE LRs are documents, ontologies, corpora,
  lexicons,
• LRs can be associated with DataStores (Oracle,
  PostgreSQL, XML, Java Serialisation)
• Documents / corpora
• Diverse document formats text, html, XML, email,
  RTF, SGML
• Optional format-preserving markup analyse / save
• Standoff annotation model (start, end, type,
  features), derivative of TIPSTER, compatible with
  ATLAS and XCES

13
Processing Resources (PRs)

• Algorithmic components knows as PRs beans with
  execute methods.
• Controllers execute a set of PRs
• SerialController sequential run of arbitrary PR
  set
• SerialAnalyserController analyser PRs over
  corpus
• Conditional controllers execute depend on
  features
• Parallel controller?
• PRs Controller Applications
• Application parameterisation state can be saved
  and restored, and used for embedding / batching

14
Visual Resources (VRs)
15
VRs (2) Coreference
16
VRs (3) Syntax
17
Editing Multilingual Data

•
• GATE Unicode Kit (GUK)
• Complements Javas facilities
• Support for defining Input Methods (IMs)
• currently 30 IMs for 17 languages
• Pluggable in other applications (e.g.
  JEdit)

18
Processing Multilingual Data All processing,
visualisation and editing tools use GUK
19

•  Performance Evaluation
• At document level annotation diff

20
Regression Test
At corpus level corpus benchmark tool
tracking systems performance over time
21
More CREOLE

1. JAPE, FSTs over annotations
2. ANNIE, A Nearly-New IE system
3. DAMLOIL, Protégé, Ontology-Aware IE
4. Information Retrieval, Lucene
5. WordNet
6. Machine Learning support

22

•  FSTs over annotations
• JAPE a Java Annotation Patterns Engine
• Light, robust regular-expression-based
  processing
• Cascaded finite state transduction
• Low-overhead development of new components
• Simplifies multi-phase regex processing
• Rule Company1
• Priority 25
• (
• ( Token.orthography upperInitial )
• Lookup.kind companyDesignator
• )match
• --gt
• match.NamedEntity kindcompany,
  ruleCompany1

23
Info Extraction Components The ANNIE system a
reusable and easily extendable set of components
24
Populating Ontologies with IE
25
Protégé and Ontology Management
26
Information Retrieval Currently based on the
Lucene IR engine
27
WordNet support
28
Machine Learning support

• Uses classification.
• Attr1, Attr2, Attr3, Attrn ? Class
• Classifies annotations.
• (Documents can be classified as well using a
  simple trick.)
• Annotations of a particular type are selected as
  instances.
• Attributes refer to instance annotations.
• Attributes have a position relative to the
  instance annotation they refer to.

29
Attributes

• Attributes can be
• Boolean
• The lack of presence of an annotation of a
  particular type partially overlapping the
  referred instance annotation.
• Nominal
• The value of a particular feature of the referred
  instance annotation. The complete set of
  acceptable values must be specified a-priori.
• Numeric
• The numeric value (converted from String) of a
  particular feature of the referred instance
  annotation.

30
Implementation

• Machine Learning PR in GATE.
• Has two functioning modes
• training
• application
• Uses an XML file for configuration
• lt?xml version"1.0" encoding"windows-1252"?gt
• ltML-CONFIGgt
• ltDATASETgt lt/DATASETgt
• ltENGINEgtlt/ENGINEgt
• ltML-CONFIGgt

31
ltDATASETgt

• ltDATASETgt
• ltINSTANCE-TYPEgtTokenlt/INSTANCE-TYPEgt
• ltATTRIBUTEgt
• ltNAMEgtPOS_category(0)lt/NAMEgt
• ltTYPEgtTokenlt/TYPEgt
• ltFEATUREgtcategorylt/FEATUREgt
• ltPOSITIONgt0lt/POSITIONgt
• ltVALUESgt
• ltVALUEgtNNlt/VALUEgt
• ltVALUEgtNNPlt/VALUEgt
• lt/VALUESgt
• ltCLASS/gt
• lt/ATTRIBUTEgt
• lt/DATASETgt

32
ltENGINEgt

• ltENGINEgt
• ltWRAPPERgtgate.creole.ml.weka.Wrapperlt/WRAPPERgt

• ltOPTIONSgt
• ltCLASSIFIERgtweka.classifiers.j48.J48lt/CLASS
  IFIERgt
• ltCLASSIFIER-OPTIONSgt-K 3lt/CLASSIFIER-OPTION
  Sgt
• ltCONFIDENCE-THRESHOLDgt0.85lt/CONFIDENCE-THRE
  SHOLDgt
• lt/OPTIONSgt
• lt/ENGINEgt
• Now WEKA
• Soon Torch? YASMET? TIMBL?

33
Attributes Position
Instances type Token
34
Standard Use Scenario

• Training
• Prepare training annotations.
• Run the ML PR in training mode.
• Export the dataset as .arff and perform
  experiments using the WEKA interface in order to
  find the best attribute set / algorithm /
  algorithm options.
• Update the configuration file accordingly.
• Run the ML PR again to collect the actual data.
• Save the learnt model.

• Application
• Load the previously saved model.
• Run the ML PR in application mode.
• Save the learnt model.

35
Using Other ML Libraries

• The MLEngine Interface
• void addTrainingInstance(List attributes) Adds
  a new training instance to the dataset.
• Object classifyInstance(List attributes)
  Classifies a new instance.
• void init() This method will be called after an
  engine is created and has its dataset and options
  set.
• void setDatasetDefinition(DatasetDefintion definit
  ion) Sets the definition for the dataset used.
• void setOptions(org.jdom.Element options) Sets
  the options from an XML JDom element.
• void setOwnerPR(ProcessingResource pr)
  Registers the PR using the engine with the
  engine.

36
A bit of a nuisance (GATE users)

• Thousands of users at hundreds of
• sites. A representative sample
• the American National Corpus project
• the Perseus Digital Library project, Tufts
  University, US
• Longman Pearson publishing, UK
• Merck KgAa, Germany
• Canon Europe, UK
• Knight Ridder, US
• BBN (leading HLT research lab), US
• SMEs inc. Sirma AI Ltd., Bulgaria
• Imperial College, London, the University of
  Manchester, UMIST, the University of Karlsruhe,
  Vassar College, the University of Southern
  California and a large number of other UK, US and
  EU Universities
• UK and EU projects inc. MyGrid, CLEF, dotkom,
  AMITIES, Cub Reporter, EMILLE, Poesia...

• GATE team projects. Past
• Conceptual indexing MUMIS automatic semantic
  indices for sports video
• MUSE, cross-genre entitiy finder
• HSL, Health-and-safety IE
• Old Bailey collaboration with HRI on 17th
  century court reports
• Multiflora plant taxonomy text analysis for
  biodiversity research e-science
• Present
• Advanced Knowledge Technologies 12m UK five
  site collaborative project
• EMILLE S. Asian languages corpus
• ACE / TIDES Arabic, Chinese NE
• JHU summer w/s on semtagging
• Future
• Five new projects (below)

37
Where Next (1)?

• Can Universities cope with the long term?
• User survey
• Future context
• SEKT Knowledge Management
• KnowledgeWeb OntoWeb II
• PrestoSpace audiovisual preservation (FSTs for
  users?)
• hTechSight knowledge portal for petrochemicals
• ETCSL Electronic Text Corpus of Sumerian
  Language
• DERI Digital Enterprise Research Institute
• PhDs INK, PIE

38
Where Next (2)?

• Some desirables
• Corpus tools (ANNIC in progress)
• Audiovisual documents
• WS-based backend server, for ML, active learning
  etc.
• Better dialogue support (cf. AMITIES, Galaxy)
• Better MT support
• PDF documents
• JAPE debugger, editor, 101 language extensions
  (e.g. quantified ops, deletion ontology callouts)
• Cleverer treatment of large documents in the GUI
• PR reloading

39

• Conclusion
• GATE is
• Addressing the need for scalable, reusable, and
  portable HLT solutions
• Supporting large data, in multiple media,
  languages, formats, and locations
• Lowering the cost of creation of new language
  processing components
• Promoting quantitative evaluation metrics via
  tools and a level playing field
• Promoting experimental repeatability by
  developing and supporting free software
• http//gate.ac.uk/
