Title: NEXT GENERATION OF SIMULATION


1

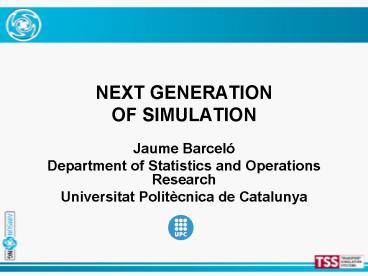

NEXT GENERATION OF SIMULATION
  • Jaume Barceló
  • Department of Statistics and Operations Research
  • Universitat Politècnica de Catalunya

2
KEY WORDS SINTHESIZING TRENDS AND CHALLENGES IN
TRAFFIC SIMULATION
  • INTEGRATION (Of modeling approaches)
  • NEW CORE MODELS
  • Car-following, Lane Changing.
  • DYNAMIC TRAFFIC ASSIGNMENT/DYNAMIC TRAFFIC
    EQUILIBRIUM
  • IMPROVED MODELING APPROACHES
  • Micro, Meso, Hybrid.
  • MODEL CALIBRATION AND VALIDATION

3
INTEGRATION (Of modeling approaches)
  • Advanced transport analysis must use various
    modeling approaches which must interact in an
    efficient way
  • Efficient integration has requirements beyond the
    usual interfaces based on file data exchange
  • Actual integration should be based on software
    engineering, exploiting common databases and data
    models, allowing a unique network representation
    shared by all modeling approaches.

4
NEW CORE MODELS Car-following, Lane Changing.
  • The increasing use of microscopic simulation in
    more complex situations cannot always be
    efficiently addressed by current car-following,
    lane changing and similar core models.
  • NGSIM research is developing new core models and
    a new philosophy
  • A future simulation software with two main
    components
  • A simulation engine and
  • A wide library of core models which could be
    plug-in and plug-off by analysts according to
    simulation objectives or circumstances, i.e. from
    global to local models

5
IMPROVED MODELING APPROACHES Micro, Meso,
Hybrid.
  • Meso capturing the high level dynamic traffic
    phenomena in large areas and
  • Micro getting into the very details of the full
    dynamics in smaller areas.
  • Meso and micro must work integrated and the best
    way is by means of hybrid meso-micro approaches

6
DYNAMIC TRAFFIC ASSIGNMENT/DYNAMIC TRAFFIC
EQUILIBRIUM
  • DTA is a key concept for dynamic analysis.
  • It is based on path calculations, estimation of
    dynamic path flow rates and network loading.
  • An efficient way of implementing meso-micro
    integration while ensuring consistency is
    structuring DTA as a task independent of the
    modeling approach used. (i.e. a DTA Server)

7
MODEL CALIBRATION AND VALIDATION
  • Model calibration and validation is currently a
    major bottleneck in traffic simulation practice.
  • Tools to assist analysts in checking model
    consistency (static and dynamic) and designing
    and conducting the simulation experiments based
    on sound, proven techniques are necessary
  • A promising technique successful the Simultaneous
    Perturbation Stochastic Approximation which has
    proven to be successful in other simulation
    domains is an example of the trends to follow.

8
A FEW WORDS ON INTEGRATION (Of modeling
approaches)
9
URBAN PLANNING?TRANSPORT PLANNING?OPERATIONAL
PLANNING
EMME/2 SATURN
GIS/CAD
AIMSUN
10
COMBINING STRATEGIC AND OPERATIONAL PLANNING
  • IDENTIFIED TIME AGO AS AN EXTENSION TO STRATEGIC
    PLANNING
  • WINDOWING INTO A POTENTIALLY CONFLICTING SUBAREA
    TO CONDUCT A DETAILED OPERATIONAL ANALYSIS
  • PRACTICAL IMPLEMENTATIONS
  • EMME/2 and AIMSUN
  • SATURN and AIMSUN
  • VISUM and VISSIM
  • TRIPS and DYNASIM
  • AIMSUN PLANNER AS A COMPONENT OF AIMSUN NG AND
    AIMSUN 5.1

11
SOME CRITICAL ASPECTS
  • MACROSCOPIC MODELS (Usually based on a User
    Equilibrium approach) USE
  • A NETWORK REPRESENTATION (I.E. LINK-NODE)
  • A DEMAND MODELING (I.E. OD MATRIX, CENTROIDS,
    CONNECTORS)
  • MICROSCOPIC MODELS USE
  • A DETAILED GEOMETRY REPRESENTATION
  • A DEMAND MODELING (I.E. OD MATRIX, CENTROIDS,
    CONNECTORS)
  • CONSISTENCY ISSUES
  • LINK/SECTIONS CORRESPONDENCES
  • CENTROIDS AND CONNECTORS CORRESPONDENCES
  • MODEL SYNCHRONIZATION
  • HOW CHANGES IN ONE MODEL ARE TRANSLATED TO THE
    OTHER MODEL
  • INEFFICIENCY OF FILE EXCHANGE INTERFACES

12
NEW TRENDS
  • THE EVOLUTION OF ADVANCED TECHNOLOGIES AND THEIR
    APPLICATION TO MODERN TRAFFIC MANAGEMENT SYSTEMS
    DEMANDS A DYNAMIC VIEW
  • BRING INTO THE PLANNING ARENA TIME DEPENDENT
    TRAFFIC PHENOMENA AS QUEUE SPILLBACKS OR THE TIME
    EVOLUTION OF CONGESTION
  • MESOSCOPIC TRAFFIC SIMULATION MODELS ARE THE
    RESPONSE TO THESE REQUIREMENTS
  • DYNASMART
  • DYNAMIT
  • DYNAMEQ
  • MEZZO
  • ..

13
WHATS BEST
  • THE QUESTION IS NOT WHETHER ONE APPROACH IS
    BETTER OR MORE APPROPRIATE THAN OTHER
  • OR IF THERE IS A UNIQUE APPROACH THAT CAN REPLACE
    SATISFACTORILY ALL OTHERS
  • BUT WHICH IS THE MOST APPROPRIATE USE OF EACH
    APPROACH AND HOW CAN THEN WORK TOGETHER IN A
    COMMON FRAMEWORK

14
FROM MACRO TO MESO AND MICRO
  • GENERALIZE THE FORMER MACRO-MICRO INTERFACES TO A
    COMBINATION OF MACRO, MESO AND MICRO
  • BY MEANS OF AN INTEGRATED SOFWARE ENVIRONMENT TO
    SUPPORT A TRANSPORT ANALYSIS METHODOLOGY THAT
    COMBINES THE THREE APPROACHES, OVERCOMING
    CONSITENCY AND SYNCHRONIZATION PROBLEMS

15
Three Types of Models Used in Corridor Analysis
(V. Alexiadis, TRB 2007)
16
Mesoscopic Modeling (V. Alexiadis, TRB 2007
17
An Integrated Analysis Methodology(V. Alexiadis,
TRB 2007)
  • Revised Trip Tables
  • Refined Travel Times

Enhanced Performance Measures
No
Meso- and/or Micro-simulation
  • VMT/VHT/PMT/PHT
  • Travel Time/Queues Throughput/Delay
  • Environment
  • Safety

Dynamic Assignment
Convergence ?
Yes
Pivot Point Mode Choice
Refined Transit Travel Times
  • Refined Trip Table(Smaller Zones and Time
    Slices)
  • Refined Network

Benefit Valuation
Outputs
  • Benefit/Cost Analysis
  • Sensitivity Analysis
  • Ranking of ICM Alternatives

Cost of ImplementingStrategies
User Selection of Strategies
18
A METHODOLOGICAL PROPOSAL
  • FROM A MODELING POINT OF VIEW THERE ARE TWO MAIN
    ISSUES TO ACHIEVE THIS OBJECTIVE
  • COMPUTER MODELING ISSUES
  • AN EFFICIENT INTEGRATION OF TRANSPORT ANALYSIS
    TOOLS REQUIRES AN SPECIFIC COMPUTER MODELING
    APPROACH TO OVERCOME THE INEFFICIENCIES AND
    LIMITATIONS OF TRANSPORT MODELS BASED ON
    DIFFERENT NETWORK REPRESENTATIONS COMMUNICATING
    BY MEANS OF FILE EXCHANGES
  • TRAFFIC MODELING ISSUES
  • CONCERNING THE MODELING PARADIGMS TO BE USED AT
    EACH LEVEL AND THEIR COMPATIBILITY.

19
CONCEPTUAL ARCHITECTURE OF THE INTEGRATED
ENVIRONMENT AND THE EXTENSIBLE OBJECT MODEL
20
AIMSUN NG (CONCEPTUAL ARCHITECTURE)
An integrated
enviroment for transport analysis
21
MULTILEVEL NETWORK REPRESENTATIONNode-Link
(left) Detailed Geometry (right)
22
SIMULTANEOUS NETWORK ANALYSIS User Assignment
(Left), Mesoscopic Simulation (Center),
Microscopic Simulation (Right)
23
CONCEPTUAL DIAGRAM OF THE METHODOLOGICAL PROCESS
COMBINING MACRO?MESO?MICRO
MACRO LEVEL TRANSPORT PLANNING MODEL OF A
REGIONAL OR METROPOLITAN AREA
24
COMMENTS ON NEW CORE MODEL DEVELOPMENTS(NGSIM
CONTRIBUTIONS)- Car following - Lane
Changing? Made possible by the availability of
new more accurate traffic data NGSIM data
25
Problem Statement Oversaturated Freeway Flow
(UC Berkeley)
  • Existing Simulation Approaches
  • Do not accurately model oversaturated traffic
    conditions such as repeated stops and starts,
    increased lane changes to position onto perceived
    moving lanes, or in the presence of tall
    vehicles, and large vehicle headways
  • Use additional rules and parameters to the basic
    desired headway and gap-acceptance based
    car-following and lane changing models
  • Introduce a large number of parameters that
    generally cannot be readily observed in the field

26
Car-following Model (UCB)
Jam Spacing
Wave travel time
Newells simplified CF model
Maximum Acc
Free Flow speed
Safety Constraint
Maximum Dec
27
Lane Changing Mechanism (UCB 1)
Car-following rule for Lane changing pending
xMIN( xCF(Leader) , xCF(Veh Down) )
x xCF(Leader)
Try to pass and find next gap
downstream vehicle
upstream vehicle
Veh down
Veh up
Leader
LC
Conflict point
Request Cooperation
28
Lane Changing Mechanism (UCB 2)
Car-following rule for cooperating vehicle
xMIN( xCF(Leader) , xCF(LC) )
End cooperation
upstream vehicle
Leader
Veh up
Coop
LC
Conflict point
Request Cooperation
29
Lane Changing conflict (UCB 3)
If there exist conflict in lane changing
xMIN( xCF(Leader) , xCF(Veh Down) )
LC1 will yield to LC2
else x xCF(Leader)
LC2 will pass LC1
downstream vehicle
upstream vehicle
LC
Veh up
LC2
Leader
LC1
Request Cooperation
30
(No Transcript)
31
Wave Travel Time (UCB)
  • t time between the action of leader vehicle
    and the following vehicle

32
Wave Speed (UCB)
  • Wave speed sjam / t (?gjam) / t
  • US101
  • Mean18.07km/hr,11.22miles/hr
  • I-80
  • Mean19.59km/hr,12.18miles/hr

33
Max Acceleration Deceleration (UCB)
  • Extracted from NGSIM trajectories data US101
  • Passenger cars (n4163)
  • Mean4.516(m/s2), std 0.808
  • mean -4.398(m/s2), std0.827

34
MIT LANE SELECTION MODEL
35
MIT NGSIM LANE SELECTION MODEL Discrete Choice
Random Utility with 31 parameters Implemented in
AIMSUN using its Extensible Object Model
36
DYNAMIC TRAFFIC ASSIGNMENT/DYNAMIC TRAFFIC
EQUILIBRIUM
37
CONCEPTUAL ALGORITHMIC FRAMEWORK FOR DYNAMIC
TRAFFIC ASSIGNMENT
  • Principles
  • Components of DTA models
  • Method for determining path-dependent flow rates
    on the paths in the network
  • Dynamic equilibrium algorithm
  • Route Choice stochastic model
  • Dynamic network loading method
  • Simulation model
  • Mesoscopic
  • Macroscopic
  • Analytical model
  • Preventive
  • Combines the experienced travel times with
    conjectures to forecast the temporal variations
    in flows and travel costs.
  • Reactive
  • Evolution of flows when users make route choice
    decisions based on experienced travel times



38
PREVENTIVE DTA IN AIMSUN
  • Link Cost Function

input cost of link j at iteration n at time
interval t
ouput cost of link j at iteration n at time
interval t
input cost of link j at iteration n1 at time
interval t
EXPECTED LINK COST
EXPERIENCED LINK COST
39
THE LINK COST CALCULATION (Prediction based on
exponential smoothing from previous iterations)
40
PATH-DEPENDENT FLOW RATES BASED ON DYNAMIC USER
EQUILIBRIUM MODELS
41
THE AD HOC MSA ALGORITHM
42
THE MESO APPROACH NETWORK LOADING (I)
  • Vehicle based event scheduling approach
  • vehicles generation
  • entrance of a vehicle into a link
  • the transfer of a vehicle from one link to the
    next according to turning movements at
    intersections
  • Approximate description of vehicles trajectories
    in the links
  • The approach models the link dynamics splitting
    the link in two parts
  • the running part that part of the link where
    vehicles are not yet delayed by the queue
    spillback at the downstream node account for
    different flow regimes and transition phases
  • the queue part nodes are modeled according to a
    queue server approach (i.e. adapted from a GI/G/n
    model)

43
THE MESO APPROACH NETWORK LOADING (II)
  • Individual vehicle dynamics in the running part
    approximated by a simplified car following model
    compatible with non linear macroscopic
    speed-density relationships on the link
  • Accounting for different flow regimes
  • And transition phases according to the three
    phase flow model

44
COMMENTS ON HYBRID MESO-MICRO MODELS
45
HYBRID MESO/MICRO SIMULATION
46
AUTOMATIC CREATION OF THE LOCALGATE-IN /
GATE-OUT DUMMY CENTROIDS
47
DTA SERVER
  • Dynamic Traffic Assignment Server

48
GRAPHIC DEFINITION OF THE SUBAREA, AND NEW
CENTROIDS CONFIGURATION
49
MESO/MICRO LINK TRAVEL TIME CONSISTENCY
50
MESO/MICRO PATH TRAVEL TIME CONSISTENCY
51
INTEGRATION REVISITED FROM A SOFTWARE
ARCHITECTURE PERSPECTIVE
52
ENHANCED SOFTWARE ARCHITECTURE TO INTEGRATE MODELS
53
An Example of User Exploitation of the
ArchitectureUCB Testing of the Oversaturated
Freeway Algorithm
  • AIMSUN SDK
  • Replacing AIMSUN car-following and lane changing
    model
  • Programming language C

A2Vehicle
A2VehicleBehavioralModel
A2VehicleBehavioralModelTest
A2VehicleTest
A2VehicleModelTestCreator
dll entry point for new model
Car-following and lane changing Logic
Vehicle behaviors
54
UCB Model Testing I-80
  • Simulation 230PM-300PM
  • Detector 7

55
CONCLUSIONS
  • The integrated software environment presented in
    this lecture provides an efficient computer
    modeling solution to the problem of consistent
    network representation shared by various traffic
    modeling approaches based on different modeling
    paradigms as the macro, meso and microscopic
    approaches.
  • This computer modeling solution enables a
    transport analysis methodology based on the
    exchange of information between the various
    modeling levels.
  • It also provides a consistent basis for a common
    calculation of shortest paths based on the
    concept of Dynamic Traffic Assignment Server that
    makes meso and micro approaches compatible.
  • The consistency of such compatibility has been
    proved.

56
SOME REFERENCES
  • C. Chudhury, T. Toledo, M. Ben-Akiva (2004), Lane
    Selection Model, draft final report,
    Massachusetts Institute of Technology.
  • TSS-Transport Simulation Systems (2005), AIMSUN
    Testing of the NGSIM Lane Selection Model, report
    presented at the Modeling and Simulation
    Workshop,85th TRB Annual Meeting.
  • J. Barceló and J. Casas, (2006) Stochastic
    heuristic dynamic assignment based on AIMSUN
    Microscopic traffic simulator, Paper 06-3107
    presented at 85th Transportation Research Board
    2006 Annual Meeting, published in Transportation
    Research Records 1984, Fisher C.
  • J. Barceló, J. Casas, D. García and J. Perarnau
    (2006), A hybrid simulation framework for
    advanced transportation analysis, Proceedings of
    the 11th IFAC Symposium on Control in
    Transportation Systems (IFAC-CTS2006), University
    of Delft.
  • J. Barceló, J. Casas, D. García and J. Perarnau
    (2006), A methodological approach combining
    macro, meso and micro models for transportation
    analysis, Proceedings of the 13th World
    Conference on ITS, London (UK)
  • H. Yeo, A. Skabardonis, J. Laval (2006), TO 9
    Oversaturated Freway Flow Algorithm, Interim
    Report, University of California, Berkeley
Write a Comment
User Comments (0)
About PowerShow.com
