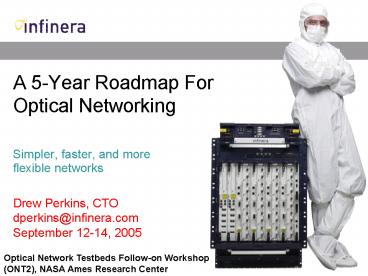

A 5Year Roadmap For Optical Networking

1
A 5-Year Roadmap For Optical Networking

• Simpler, faster, and more flexible networks

Drew Perkins, CTO dperkins_at_infinera.com September
12-14, 2005
Optical Network Testbeds Follow-on Workshop
(ONT2), NASA Ames Research Center
2
Legal Disclaimer

• Although the forward-looking statements included
  in the presentation may constitute
  forward-looking statements within the meaning
  of the Private Securities Litigation Reform Act
  of 1995, they are in fact merely the musings of a
  madman.
• The Parties acknowledge and agree that the
  information set forth herein (the Future
  Information) is provided to the recipient for
  informational purposes only and that any dates
  accompanying Future Information is provided as
  target dates only.  The inclusion of such Future
  Information and dates is in no event to be
  interpreted or construed as an obligation on the
  part of Infinera or the Optical Networking
  Industry to provide such Future Information,
  either in whole or in part, or in any particular
  manner or time frame.
• There shall be no remedy or recourse by recipient
  against Infinera or the Optical Networking
  Industry if either fails to deliver such Future
  Information in accordance with the target dates
  or at all. The Parties further acknowledge and
  agree that to the extent Future Information is
  developed in the future by Infinera or the
  Optical Networking Industry and made available to
  recipient, any purchase thereof by recipient
  would be subject to separate negotiation as to
  any terms and conditions.  No such terms and
  conditions have been agreed to date.  Further,
  the recipient is not obligated to test or
  purchase any Future Information.

3
Who is Infinera?

• What does Infinera do?
• Digital Optical Networks
• Multiwavelength scale of DWDM digital bandwidth
  management
• How do we do it?
• Photonic Integrated Circuits make OEO of hundreds
  of Gbps affordable, enabling true digital
  networking
• Why does it matter?
• Digital networks enable simple, rapid
  scalability..
• Fast flexible service provisioning
• and highly manageable networks
• How real is it?
• First customers went live in December 2004
• Infinera DTN now carrying live traffic in
  multiple networks around the world

4
Optical Services Evolution

• Today
• SONET OC-3 to OC-192
• Ethernet 1 and 10 GbE
• Static, manually configured, unprotected
  point-to-point links and rings
• Unprotected wavelengths, 11 optical protection
• Completely independent layer from Ethernet and IP
  with little communication between layers
  preventing optimization
• Within 5 Years
• SONET OC-768/OC-768c
• Ethernet 100 and Nx100 GbE (Nx TbE?)
• Dynamic, on-demand, GMPLS controlled bandwidth
• Optical (L1) VPNs
• Rich variety of Protection and Restoration
  options for hub-and-spoke access networks through
  meshed core networks
• Tight integration with Ethernet and IP layers

5
Optical Technologies Evolution

• Yesterday
• Small scale, single 10 Gbps channel integration
• 10 Gbps channels
• 320-800 Gbps optical line systems
• Dispersion Compensation Fiber (DCF)
• No control plane or Bandwidth Management for
  wavelength services
• Static point-to-point optical links, rings and
  OADMs
• Distinct Access / Metro / LH / ULH optical
  transport solutions
• No IP awareness
• Today
• Improved economics through 100 Gbps large scale
  photonic integration
• Electronic Dispersion Compensation (EDC)
• End-to-end GMPLS control plane
• Reconfigurable OADMs with wavelength interchange
• Dynamic meshed optical networks with flexible
  Bandwidth Management for wavelength services
• Integrated Access / Metro / LH / ULH optical
  transport solutions
• Within 5 Years
• 1.6 Tbps very large scale photonic integration
• 40 Gbps individual channels

6
Key Interoperability Issues

• Interfaces
• 10 GbE LAN PHY OAM (IEEE 802.1, ITU, etc.)
• 100 GbE (IEEE)
• Control Plane
• Basic IETF GMPLS UNI
• Advanced IETF GMPLS UNI w/advanced Protection and
  Restoration capabilities
• Multi-domain GMPLS integration

7
Moores Law For ICs Predicted to Continue? PICs
Allow Optics To Keep Up
Semiconductor Industrys International Technology
Roadmap for Semiconductors (ITRS)

• 65 nm and below Si focused on more integration
  with lower power, more so than higher speeds (as
  with previous gens)
• Alternative signaling schemes required (e.g. more
  wavelengths, more bits/hertz), not just higher
  NRZ TDM bit rates

8
100 GbE Development Has Begun

• The standard for 10 GbE was approved in 2002
  after a 3-year development cycle
• Work on 10 GbE began in 2000
• Ethernet performance has advanced approximately
  10x every four years
• Work on 100 GbE should have started in 2004
• The OIF recently approved the industrys first
  project on the way to 100 GbE
• Many new technologies will need to be developed
• Though 100 Gbps PIC optics is already proven

9
The GMPLS Revolution

• GMPLS has a lot of promise for dynamic control
  planes, optical VPNs, optical layer protection
  and multi-domain integration, but has seen little
  carrier deployment until recently
• Much more work remains to be done before the
  GMPLS UNI delivers true economic value, is
  interoperable, and is universally deployed

10
Summary

• Next-gen optical and IP services require a more
  flexible transport layer
• Optics enables capacity scalability (DWDM) and
  reach (optical amplifiers)
• OEO combined with electronics software are
  necessary for everything else
• Photonic Integrated Circuits enable economical
  OEO that keeps pace with Moores Law

11
Thank You!
Drew Perkins CTO dperkins_at_infinera.com
