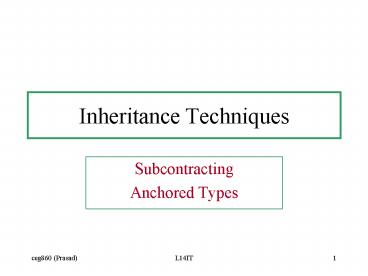

Inheritance Techniques

1
Inheritance Techniques

• Subcontracting
• Anchored Types

2
Inheritance is subcontracting.

• class C ...
• void p(S s)
• s.r()
• Call C c T t
• c.p(t)

• class S
• void r()
• class T extends S
• void r()
• Spec pre-post conditions

3

• Parent Invariant Rule
• The invariants of all the parents (and therefore,
  the ancestors) of a class apply to the class
  itself.
• Assertion Redeclaration Rule
• A routine redeclaration may only replace the
  original precondition by one equal or weaker, and
  the original postcondition by one equal or
  stronger.
• P S.r() Q
• P T.r() Q
• P gt P and Q gt Q
• (Cf. Rule of consequence)
• The postcondition associated with a 0-ary routine
  redeclared as an attribute manifests itself as an
  additional class invariant.

4
Odds and Ends

• Global Inheritance Structure
• Java has a tree-structured class hierarchy (with
  null-type treated separately).
• The features of universal interest (such as
  equal(_), clone(), toString(), locks for
  concurrency, etc) are in class java.lang.Object.
• Frozen Features
• In Java, final can be applied to a class, a
  method, and a field to prohibit extension,
  redefinition, and change, respectively. (This is
  for security reasons, for freezing the semantics,
  and for defining a constant, respectively.)

5
Anchored Declarations Covariance

• class Device feature
• alternate Device
• set_alternate(aDevice)
• is do
• alternate a
• end
• end
• class Printer inherit
• Device feature
• alternate Printer
• set_alternate(aPrinter)
• is do
• alternate a
• end
• end

• Usually, redeclaration uses same
  signature to introduce or substitute a new
  algorithm. Eiffel also supports redeclaration by
  type specialization.
• class Device feature
• alternate like Current
• set_alternate
• (alike Current)
• is do
• alternate a
• end
• end

6

• class LinkG feature
• item G
• right LinkG
• put_right(nLinkG)
• is do end
• ...
• end
• class BiLinkG inherit
• LinkG feature
• item G
• left, right like Current
• put_right(n like left)
• is do end
• put_left(n like left)
• is do end
• ...
• end

Link
BiLink

• Type Redeclaration Rule
• A redeclaration of a feature may replace the
  type of the feature, or the type of a formal, by
  any type that conforms to the original.
• This is a syntactic and purely static rule,
  with no effect on run-time objects.

7

• class ColoredPoint
• extends Point
• Color c
• boolean eq(ColoredPoint p)
• return ( super(p)
• ( c p.c ) )
• // unsatisfactory override
• class ColoredPoint
• extends Point
• Color c
• boolean eq(Point p)
• if (p instanceof
• ColoredPoint)
• return ( super(p) )
• ( c p.c )
• else return false
• // redeclare

• class Point
• int x,y
• boolean eq(Point p)
• return ( x p.x)
• ( y p.y)
• class ColoredPoint
• extends Point
• Color c
• boolean eq(Point p)
• return ( x p.x)
• ( y p.y)
• ...
• // unsatisfactory

8
Static Typing

• Type violation x.f(args)
• There is no f applicable to object associated
  with x, or args is not acceptable.
• A language is statically typed if it is
  equipped with consistency rules, enforceable by a
  compiler, whose observance by the software text
  guarantees that no execution of the system can
  cause a type violation. (E.g., Eiffel, Ada, ML,
  etc.)
• A language is strongly typed if it can guarantee
  the absence of type violations. (E.g., Java,
  Smalltalk, etc.)

9

• Nature of the beast Trying to guarantee that
  no computation will ever fail forces one to
  disallow computations that might succeed. (E.g,
  n integer 2.0 is illegal in Ada.)
• Benefits Reliability, Readability, Efficiency
• Typing vs Binding
• Typing When do we know for sure that at run-time
  there will be an operation corresponding to f
  and applicable to the object attached to x (with
  the argument arg).
• Polymorphism
• Binding Which operation will the call execute?
• Redeclaration

10
Typing problems

• Interaction with
• polymorphism
• (Covariance)
• Device d new
• CD-Drive()
• Printer p new
• Printer()
• d.set_alternate(p)
• Anchored declaration does not prevent type
  violation, but Java encoding seems to work.

• Interaction between redeclaration and
  descendant hiding
• Java prohibits method redeclaration that
  reduce visibility (e.g., from public to
  private). O/w, it can always be beaten by
  promoting subclass object and using dynamic
  binding.

11
Covariance and Contravariance

• If we could override a method changing the
  formal types or return types, then
• A change that moves down the inheritance
  hierarchy, making it more specific, is said to be
  covariant.
• A change that moves up the inheritance hierarchy
  is said to be contravariant.

12
Subtyping (substituitivity) Problem

• class Parent
• void test (covar Mammal,
• contravar Mammal) boolean
• class Child extends Parent
• void test (covar Cat,
• contravar Animal) boolean
• Parent aValue new Child()
• aValue.test(new Dog(), new Mammal())

13
Contravariance Problem

• class Parent
• Mammal test ( )
• return new Cat()
• class Child extends Parent
• Animal test ()
• return new Bird()
• Parent aValue new Child()
• Mammal result aValue.test()

14
Safe Change in C (Java 5, Cool)

• class Parent
• public
• Parent clone () return new Parent()
• class Child public Parent
• public
• Child clone () return new Child()

15
Signature Rule for Function Subtyping
class A public RA m (PA p)
class B extends A public RB m (PB p)

• RB must be a subtype of RA RB lt RA

• PB must be a supertype of PA PB gtPA

• covariant for results, contravariant for
  parameters

16
Implementation
17
Single Inheritance of Data Fields

• class A
• int a
• class C extends A
• int d
• class B extends A
• int b,c
• class D extends B
• int e

A
a
D
a
b
c
e
18
(contd)

• Observe that for reusing inherited binary code of
  a parent method, it is necessary that the layout
  of the child object be an extension of the layout
  of the parent object. That is, the common fields
  have the same index in the two object layouts.
• this pointer is unchanged in a polymorphic
  assignment.

19
Class Descriptors for Dynamic Method Lookup

• class A
• int x
• int f()
• class B extends A
• int g()

• class C extends B
• int g()
• class D extends C
• int y
• int f()

20
A_f
A
B
C
D
21
(contd)

• Observe that for the polymorphism to work
  correctly, a call to a parent method should
  invoke code for the childs overriding method.
  This can be accomplished by having the index of
  the (overridden) parent method be the same as the
  index of the (overriding) child method. That is,
  the common methods have the same index in the
  method table.
• this pointer is unchanged in a polymorphic
  assignment.

22
Multiple Inheritance of Data Fields

• class A
• int a
• class B
• int b,c
• class C extends A
• int d
• class D extends
• A, B, C
• int e

d
23
Fields Offsets in Descriptors for Multiple
Inheritance

A


1
D
24
Object Layout and Class Descriptors for Dynamic
Method Lookup

• class A
• int a
• int f()
• class B
• int b, c
• int g()

• class C
• int d
• int h()
• class D extends A, B, C
• int e
• int f()
• int h()

25
C Approach
26

• For memory efficient layout of instance fields
  and convenient reuse of inherited method code,
  the sub-objects of D corresponding to B and to C
  should resemble a B and a C instance
  respectively. (Resemblance to an A and a D
  instance is automatic.)
• This requires introducing method table reference
  slot, and adjusting this pointer for
  coercion/casting.

27
C vtables for D-object
A D
D_f
0
l
a
B
B_g
0
d
b,c
C
-d
D_h
d
e
28
(Minor Change)

• class A
• int a
• int f()
• class B
• int b, c
• int g()

• class C
• int d
• int h()
• class D extends A, B, C
• int e
• int g()

29
C vtables for D-object
A D
A_f
0
l
a
B
D_g
-l
d
b,c
C
0
C_h
d
e
30
Dynamic Linking

• Global analysis is not feasible if a class can be
  loaded at run-time (such as in Java). Instead, it
  requires incremental approach.
• Hash table may be used in the class descriptor to
  map field names to offsets, and method names to
  method pointers.
• instanceof and dynamic type checks can be
  implemented efficiently using a display of
  pointers to ancestor class descriptors.
