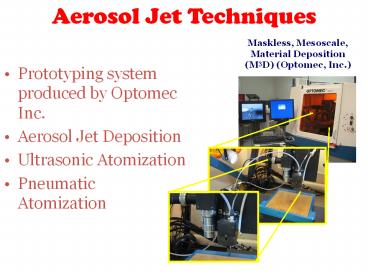

Aerosol Jet Techniques
Maskless, Mesoscale, Material Deposition (M3D)
(Optomec, Inc.)

• Prototyping system produced by Optomec Inc.
• Aerosol Jet Deposition
• Ultrasonic Atomization
• Pneumatic Atomization

2
Aerosol Jet Techniques
Pneumatic Particles less than 500 nm
3
Aerosol Jet Techniques
Pneumatic
1-5 mm drop size 0.25 mL/sec 10-150 mm line
width
4
Aerosol Jet Techniques
Ultrasonic Particles less than 50-100 nm
5
Aerosol Jet Techniques
Ultrasonic
6
Aerosol Jet Techniques
Ultrasonic
7
Ink Jet Techniques

• Operation is similar to a circuit board milling
  machine with the bit replaced by a dispensing
  head.

Tony Amert MS Defense
8
Ink Jet Techniques

• Advantages
• Digital
• High speed
• Head technology is well established, single and
  multi-nozzle formatted
• Many machine vendors

• Disadvantages
• Limited and low material viscosity range
• Particle filler issues (clogging)
• Conformality difficult

9
Ink Jet Techniques
Continuous Ink Jetting direct and control jet of
ink jet breaks up due to Plateau-Rayleigh
instability 65,000-165,000 drops per second at
up to 50 m/s
10
Ink Jet Techniques
11
Ink Jet Techniques
12
Ink Jet Techniques
Drop on Demand Ink Jetting - only manufacture
drops when needed - piezo or thermal droplet
generation - simpler geometry, more easily
clogged
13
Ink Jet Techniques
14
(No Transcript)
15
(No Transcript)
16
Evaporation
17
Droplet Impact
