Joint SourceChannel Coding for

1

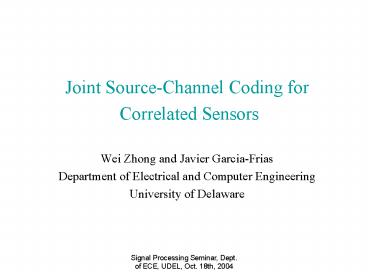

• Joint Source-Channel Coding for
• Correlated Sensors
• Wei Zhong and Javier Garcia-Frias
• Department of Electrical and Computer Engineering
• University of Delaware

2
Outline

• Joint Source-Channel Coding of Correlated Sensors
  over a Multiple Access Channel
• Slepian-Wolf Coding for correlated sources
• Gaussian Multiple Access Channel
• Shannons Separate Source-Channel Coding is NOT
  optimum in this case
• Proposed system
• Combining Data Fusion with Joint Source-Channel
  Coding of Correlated Sensors
• Proposed system
• Many sensors observing a hidden source
• Data fusion performed at the Base Station jointly
  with decoding

3
Correlated Sources Practical Applications
Sensor networks Several sensors in a given
environment receiving correlated information.
Sensors have very low complexity, do not
communicate with each other, and send information
to processing unit (base station)

• Use of turbo-like codes (LDGM codes) to exploit
  the correlation, so that the transmitted energy
  necessary to achieve a given performance is
  reduced
• Data compression
• Joint source-channel coding

4
Slepian-Wolf Coding of Correlated Sources
U1
Encoder 1
Joint Decoder
No Collaboration
Correlated
U2
Encoder 2

• Main Result of Slepian-Wolf Theorem
• Optimum data compression (i.e. as if each encoder
  knows both sources) can be achieved without
  collaboration between the encoders.

5
Achievable Region of Slepian-Wolf Coding
6
Gaussian Multiple Access Channel
N
S1
Joint Decoder r S1S2SnN
S2
Sn

• Information Theorem has established result about
  GMAC
• Random coding achieves capacity

7
Joint Source-Channel Coding of Correlated Source
over MAC
N
coding
S1
Joint Decoder r S1S2SnN
coding
S2
coding
Sn
What is the capacity/limit? How to achieve
it? Still an open problem
8
System Model
S1...1010110
N
encoder
Joint Decoder
e
S2.0110111
encoder

• S1, S2 are binary sequences
• i.i.d. correlation characterized by Pr(e 1)p,
  i.e. S1 is different from S2 with probability p

9
Most Closely Related Work

• Early work
• MAC with arbitrarily correlated sources (T. M.
  Cover et al., 1980)
• Separate source-channel coding not optimum
• Bounds, non-closed form
• Binary correlated sources
• Turbo-like codes for correlated sources over MAC
  (J. Garcia-Frias et al., 2003)
• Turbo codes
• Low Density Generator Matrix (LDGM) codes
• Interleaver design, exploiting correlation
• Correlated source and wireless channels (H. El
  Gamal et al., 2004)
• LDGM codes
• Not a pure MAC, need independent links for a
  small fraction of parity bits

10
Theoretical Limits Assuming Separation between
Source and Channel Coding

• Theoretical limit unknown
• The separation limit is achieved by
• Slepian-Wolf source coding optimum channel
  coding

R1

• Ei Energy constraint for sender i (we assume
  E1E2)
• Ri Information rate for sender i (we assume
  R1R2R/2)

11
LDGM Codes

• Systematic linear codes with sparse generator
  matrix GI P, Ppml
• uu1uL systematic bits
• c uP coded (parity) bits

• LDGM codes are LDPC codes, since HGT I is also
  sparse
• Advantage over turbo codes Less decoding
  complexity
• Advantage over standard LDPC codes Less encoding
  complexity

12
LDGM Codes in Channel Coding (BSC)

• Message length10,000
• Code rate Rc.5 with different degrees (X,Y)

• As noticed by MacKay, LDGM codes are bad (error
  floor does not decrease with the block length)

• Solution Concatenated scheme

13
Serial Concatenated LDGM Codes
For BER10-5, 0.8 dB from theoretical limit,
comparable to LDPC and turbo codes
14
LDGM Encoder for Correlated Senders over MAC
Single LDGM Encoder per Sender
u11 uL1
Sender 1
LDGM Encoder
Ok1
u12 uL2
Sender 2
LDGM Encoder
Ok2

• To exploit correlation, each sender encoded using
  the same LDGM code

15
LDGM Encoder for Correlated Senders over MAC
Information bits
Parity bits
Sender 1
Sender 2

• Information bits are correlated by pPr(u1k?u2k)
• Parity bits are correlated by p Pr(c1k?c2k)

Parity bits are generated as

16
Drawback of Single LDGM Encoder Scheme

• Each sender is encoded by the same LDGM codebook
• Decoder graph completely symmetric
• At the receiver, even if the decoder can recover
  the sum perfectly, there is no way to tell which
  sequence corresponds to sender 1 and which to
  sender 2
• Solution
• Introduce asymmetry in decoding graph
• Concatenated scheme with additional interleaved
  parity bits

17
LDGM Encoder for Correlated Senders over MAC
Concatenated Scheme
u11 uL1
Ok1
Eouter
Einner
Sender 1
Encoder 1
u12 uL2
Channel Interleaver
Sender 2
Eouter
Einner
Ok2
Encoder 2

• Each sender is encoded by a serial concatenated
  LDGM code
• Sender 2s sequence is scrambled by a special
  channel interleaver
• Information bits are not interleaved (most
  correlation preserved).
• Inner coded bits are partially interleaved
  (trade-off between exploiting correlation and
  introducing asymmetry).
• Outer coded bits are totally interleaved (little
  correlation, introduce asymmetry).

18
LDGM Decoder for Correlated Senders over MAC
Concatenated Scheme

• Detailed message passing expressions can be
  obtained by applying Belief Propagation over the
  graph

19
Simulation Results Single LDGM Scheme

• Information sequences divided into blocks of
  length L10,000
• Rate 1/3 LDGM codes
• P0.01
• Error floor at 0.5p

20
Simulation Results Single LDGM Scheme

• As SNR increases,
• Error due to channel noise fades away
• Interference stays constant due to the ambiguity
  (symmetry in the decoder graph) explained before
• Comment single LDGM scheme is capable of
  transforming X1X2N into almost noise-free X1X2
  (leaving interference intact)

21
Simulation Results Concatenated Scheme

• Trade-off between error floor and threshold,
  driven by fraction of interleaved inner parity
  bits

22
Conclusion

• For correlated sources over MAC, code design
  should exploit correlation
• Joint source-channel coding using LDGM codes can
  indeed outperform separate-source-channel coding

23
Combining Data Fusion and Joint Source-Channel
Coding of Correlated Sensors
JSC coding
S1
AWGN
Joint DecodingandDataFusion
BSC
JSC coding
S2
AWGN
S
BSC
BSC
JSC coding
AWGN
Sn

• Many dumb sensors observe hidden source S with
  observation error (modeled by BSC, i.e. bit
  flipped with probability Pe)
• Separate channel for each sensor (TDMA, FDMA,
  etc.)
• Joint decoding-data-fusion at the base station

24
Receiver Structure
Joint DecodingandDataFusion

• Turbo decoding/Information exchange
• Centralized structure
• Complexity grows linearly with the number of
  sensors

25
Theoretical Analysis (1)

• Pe Sensor observation error parameter
• BER Bit error rate of
• Increasing the number of sensors produces good
  BER even for high Pe

26
Theoretical Analysis (2) Simulation Results

• Eso/N0 Energy per sensor bit (BPSK) to achieve
  reliable communication
• Simulation results show that as the number of
  sensors grows, only a little gain in SNR achieved
• Need optimized code design

27
Simulation Results

• Simulation results show that as the number of
  sensors grows, the gap away from the theoretical
  limit increases

28
Conclusion

• Given a target performance in terms of BER, we
  can offer solutions with different configurations
  (sensor quality VS network size)
• For our model of sensor network, LDGM code can
  offer near-optimum performance with very low
  coding complexity when the number of sensors is
  small
• When the number of sensors is large, the
  performance degrades. Our current on-going work
  is to optimize the code design for this case
