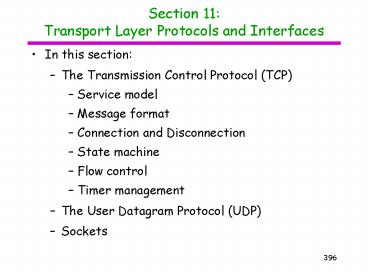

Section 11Transport Layer Protocols and
Interfaces
  • In this section
  • The Transmission Control Protocol (TCP)
  • Service model
  • Message format
  • Connection and Disconnection
  • State machine
  • Flow control
  • Timer management
  • The User Datagram Protocol (UDP)
  • Sockets

2
TCP - Transmission Control Protocol
  • Provides reliable end-to-end byte stream over
    unreliable network.
  • Designed to dynamically adapt to properties of
    network, and for robust handling of failures.
  • Initial definition in standard RFC 793.
  • TCP entity accepts user data from local
    processes, splits into pieces no larger than 64K
    octets (usually about 1500 octets in practice),
    and sends each piece as a separate IP datagram.
  • When IP datagrams containing TCP information
    arrive, TCP entity receives them, and
    reconstructs the original byte stream.
  • TCP times out, retransmits IP datagrams as
    needed, and reorders on reception.

3
The TCP Service Model
  • Sender and receiver use sockets as end points.
  • Sockets have an address consisting of IP address
    for the machine (such as 127.1.1.1), plus a 16
    bit number local to the host called a port.
  • Connection is established between sockets.
  • Port numbers 0 through 1023 are well known, and
    are reserved for standard services which are
    expected to be found at one of these ports.
  • Examples FTP daemons at ports 20 and 21, HTTP
    server at port 80
  • All TCP connections are full duplex, point to
    point.

4
The TCP Service Model - 2
  • Connection is a stream of octets, not messages.
  • Four messages of 512 octets may be sent by TCP as
    any combination of pieces totaling 2048 octets
  • 1 2048 octets
  • 2 1024 octets
  • 4 512 octets
  • 8 256 octets
  • ...

5
The TCP Service Model - 3
  • When application sends data to TCP, it may not be
    sent immediately
  • TCP may decide to collect more data before
    transmission.
  • TCP push flag is used to request no transmission
    delay.
  • TCP urgent flag immediately sends all pending
    data for connection.
  • Receiver immediately sends an interrupt to its
    user.
  • On reception, data is buffered until retrieved by
    a request from the socket.

6
The TCP Protocol
  • 32 bit sequence numbers used.
  • Separate fields for acknowledgments and window
    mechanism.
  • TCP entities exchange data in the form of
    segments
  • Fixed 20 octet header, plus optional part,
    followed by zero or more data octets.
  • TCP software determines segment size.
  • Restrictions on maximum segment size
  • IP payload maximum 65,535 octets, including IPs
    20 octet header.
  • MTU at data link layer.
  • TCP uses sliding window protocol
  • Sender starts timer after segment sent.
  • Receiver sends back segment (which may or may not
    contain data) with acknowledgment number being
    the next sequence number it expects to receive.
  • Sender retransmits on timeout.

7
TCP must handle...
  • Fragmentation only part of a transmission
    arrives.
  • Out-of-order segments.
  • Duplicates segments delayed long enough in
    transit that sender retransmits.
  • Duplicates fragmentation retransmission may
    be fragmented differently.
  • Network congestion.

8
The TCP Segment Header
Source Port
Destination Port
Sequence Number
Acknowledgment Number
Window size
FIN
S Y N
Header Length
A C K
P S H
R S T
U R G
Checksum
Urgent Pointer
Options (0 or more 32 bit words)
Data (optional)
32 bits
Header length 4 bits ACK / PSH / RST / SYN /
FIN / URG 1 bit Other fields 16 or 32 bits
unless noted Unused 6 bits
9
TCP Header Fields - 1
  • Source and destination ports 16 bit address of
    local port.
  • Sequence and acknowledgment numbers
  • Every octet is numbered in a TCP stream.
  • Acknowledgment number is next octet number
    expected.
  • 32 bits each.
  • Header length
  • Needed because options field can vary in length.
  • Number of 32 bits words in header.
  • URG set to 1 if urgent pointer in use
  • Pointer indicates offset from current sequence
    number at which urgent data is found.
  • Facility provided in lieu of interrupts.
  • PSH Set to 1 to indicate pushed data.
  • Receiver is requested to immediately send data to
    user, instead of storing in buffer.

10
TCP Header Fields - 2
  • ACK Set to 1 to indicate acknowledgment number
    is valid
  • If 0, no acknowledgment in this segment.
  • SYN used to establish connections
    (synchronize).
  • SYN 1, ACK 0 in connection request.
  • SYN 1, ACK 1 in connection acceptance.
  • SYN 0, ACK 1 to acknowledge connection
    acceptance
  • FIN set to 1 to indicate end of user data
    (finished).
  • Used to close connection in sending direction.
  • May continue to receive data.
  • RST Set to 1 to indicate reset.
  • Host has become confused due to crash or for
    other reason.
  • Also used to reject a connection, or refuse an
    invalid segment.

11
TCP Error Checking
TCP Pseudo-header
Source IP address
Destination IP address
TCP segment length
00000000
Protocol 6
32 bits
  • Checksum field provides error detection
    information for TCP segment header, plus the
    pseudo-header shown above.
  • Checksum computation
  • Set checksum field to all zeros.
  • Pad user data with extra 0 octet, if needed, so
    that user data has an even number of bytes.
  • Add all 16 bit words in 1s complement, and take
    1s complement of the sum.
  • When receiver performs this computation,
    including checksum field, result should be 0.

12
TCP Connection and Disconnection
  • Initial sequence number on connection
  • Based on clock that ticks every 4 ?sec.
  • Maximum packet lifetime MPL seconds (often 30s
    to 60s).
  • When host crashes, it must delay 2MPL seconds to
    let outstanding packets be cleared.
  • Disconnection
  • Segment with FIN bit set indicates end of user
    data.
  • Connection is then shut down in that direction.
  • Data can continue to be sent in the other
    direction.
  • If no acknowledgment for a segment with FIN is
    received in 2MPL, connection is released.

13
TCP connection Three-way Handshake
Host 1
Host 2
ack
seq
SYN Propose sequence number x
SYN ACK Propose sequence number Y, and
confirm X
ACK Confirm sequence number Y
Normal, successful connection
14
TCP simultaneous disconnection
Host 1
Host 2
FIN Close connection for sending at Host 1.
FIN ACK Close connection for sending at host
2, and confirm FIN reception
ACK Confirm FIN from Host 2
15
TCP Half-close
Host 1
Host 2
FIN Close connection for sending at Host 1.
ACK Confirm FIN reception
(additional data transfer)
FIN Close connection for sending at host 2
ACK Confirm FIN reception
16
Sequencing of Control Segments
  • A segment with the SYN bit on consumes one
    sequence number, although there is no data.
  • A segment with the FIN bit on consumes one
    sequence number, although there is no data.
  • A segment with the ACK bit on, the SYN and FIN
    bits off, and that does not carry data, does not
    consume a sequence number.

17
TCP Connection Management States
18
TCP Connection Establishment
CONNECT / SYN
Closed
LISTEN / -
CLOSE / -
Listen
SYN / SYN ACK
CLOSE / -
SYN SENT
SYN RCVD
SYN / ACK
ESTABLISHED
ACK / -
SYN ACK / ACK
19
TCP Disconnection
true
FIN / --
ESTABLISHED
auto- close
false
CLOSE / FIN
-- / FIN ACK
-- / ACK
CLOSING
CLOSE WAIT
FIN WAIT 1
FIN / ACK
ACK / -
CLOSE / FIN
ACK / -
FIN ACK / ACK
TIMED WAIT
LAST ACK
FIN WAIT 2
FIN / ACK
timeout / -
CLOSED
ACK / -
20
TCP Flow Control
  • Sequence numbers correspond to octets within user
    data, instead of TCP segments.
  • Window size field tells how many octets can be
    sent starting at the last byte acknowledged.
  • Principle for flow control window once window
    space has been granted for specific octet
    numbers, the window space should not be revoked
    in a subsequent acknowledgement.
  • Window size of 0 is legal octets up to
    acknowledgment number 1 have been received,
    but sender is requested not to send more data.
  • Permission to restart indicated by sending a
    segment with the same acknowledgment number, but
    with a non-zero window size.
  • TCP also uses a separate congestion window the
    sender may send only the number of octets
    determined from the minimum value of the two
    windows.

21
TCP transmission policy - 1
Sender
Receiver
Application writes 2K of data
0 4K
2K
Application writes 3K of data
2K
Application reads 2K of data
Sender blocked
2K
1K
22
TCP transmission policy - 2
  • Window size of zero normally means that sender is
    blocked.
  • Exceptions
  • Sending of urgent data.
  • May send 1 octet segment requesting receiver to
    send window size.
  • Avoids deadlock when acknowledgment lost.
  • Senders are not required to transmit data
    immediately on reception from application.
  • Attempt to avoid sending segments with 20 octets
    of TCP header (and 20 more octets of IP header),
    and only 1 octet of user data.
  • Acknowledgments are often delayed up to 500 ms,
    in the hope of collecting some user data to send
    along with it.

23
TCP transmission policy - 3
  • Nagles algorithm for sparse user data (i.e. slow
    sender)
  • Send first octet in a segment.
  • Buffer all octets from application at sender,
    until first acknowledgment is received or buffer
    contains maximum segment size.
  • Then, send entire buffer in one segment.
  • Further data is buffered as above.
  • Clarks algorithm for receiver slow to read data
  • Receiver should not send a window update until
    either
  • There is enough space in the buffer to handle the
    minimum segment size advertised in connection
    phase.
  • The buffer is half empty.
  • Avoids sending acknowledgments with 1 octet
    window size.

24
TCP Timer Management
  • How long should the retransmission timer be?
  • More difficult than in data link layer, since the
    round trip travel time variance is greater

T
Probability
10
20
30
20
40
60
Round trip time (msec)
Data link
Transport
  • Too short unnecessary retransmissions that will
    clog network.
  • Too long performance reduction due to long
    delay before retransmission.

25
Dynamic Timer Setting
  • Algorithm due to Jacobson (1988).
  • Keep variable RTT that is best current estimate
    of Round Trip Time to destination.
  • Measure time M required for acknowledgment to
    return for a segment.
  • Update RTT by
  • RTT a RTT ( 1 a ) M
  • where a determines how much weight to give old
    and new values.
  • Typical value for a is 7 / 8
  • Use mean deviation as an approximation to the
    standard deviation of RTT
  • D b D ( 1 b ) RTT  M
  • Set timeout to be
  • timeout RTT 4 ? D

26
Additional TCP Timers
  • Karns algorithm (for noisy, wireless media)
  • Do not use retransmitted segments to update value
    for RTT .
  • Instead, double timeout value until segments get
    through.
  • TCP persistence timer
  • Prevents deadlock when current window size is 0,
    and acknowledgment increasing window size is
    lost.
  • When persistence timer expires, ask receiver for
    window size.
  • TCP keep alive timer
  • Timer expires after long interval with no
    messages.
  • On expiry, send a message to receiver asking are
    you still there?
  • Connection terminated if no response.
  • TCP close timer ensures all packets die on
    connection termination.

27
UDP - User Data Protocol
Source Port
Destination Port
UDP length
UDP checksum
32 bits
  • provides ability to send raw IP datagrams
    without establishing a connection
  • described in RFC 768
  • often used for client-server applications with
    one request, one reply
  • UDP length number of bytes in datagram,
    including 8 byte header
  • Check sum field provides error detection
  • calculated in same manner as TCP, including
    pseudo-header
  • 0 if not used

28
Sockets Network user interface
  • Functions
  • new Socket Create a new communication end
    point
  • Bind Associate a socket with a specified port
    number.
  • Listen Announce willingness to accept
    connections
  • Queue size for incoming connection requests can
    be specified.
  • Accept Block the caller until an incoming
    connection request arrives
  • On receipt of a request, return.
  • Connect Actively attempt to establish a
    connection
  • Send Send some data over the connection
  • Receive Receive some data from the connection
  • Close Release the connection

29
Step 1 Create a socket
File descriptor or object reference

Our program
3
socket
Set of local ports
?
23
80
1237
Host
123.90.47.122
Network (IP) address
To network
  • Creates attachment point from application to
    network.
  • May be viewed by program as a file descriptor (as
    shown above) or an object reference.

30
Step 2 Bind the socket to a port
Our program
File descriptor
3
socket
Set of local ports
23
80
1237
Host
123.90.47.122
To network
  • Chooses a port (which must be currently unbound).
  • Required for servers client often bind
    implicitly to next available port while
    connecting.
  • Port numbers from 0 to 1024 cannot be bound by
    application programs operating system or root
    privileges are required.

31
Step 3 (server) Listen for connections
Our program
File descriptor
3
socket
Set of local ports
23
80
1237
Host
Buffers for incoming connection requests
123.90.47.122
To network
32
Step 4 Incoming connection request
client program
server program
3
3
socket
socket
client host
1237
23
80
1237
SYN
123.90.47.122
191.36.42.1
  • Client performs a connect operation
  • Client needs to obtain network address of server.
  • Call to Domain Name System (DNS) server used to
    obtain IP addresses from a domain name.

33
Step 5 Accept a connection request
our program
3
4
Socket for new connection
Socket for listening
host
80
123.90.47.122
To network
  • A new socket is created for handling the data
    transfer.
  • The original socket continues listening for
    connection requests.

34
Step 6 Create new process or thread
Server process/thread
Handler process/thread
3
4
host
80
123.90.47.122
To network
  • Why?
  • Server can handle multiple, simultaneous
    connection requests
  • A separate handler process can be created for
    each request

35
Step 7 Data transfer phase
client program
handler
server
4
3
3
socket
client host
1237
23
80
1237
123.90.47.122
191.36.42.1
  • Either side can send or receive data

36
Step 8 Close sockets
client program
handler
server
4
3
3
client host
1237
23
80
1237
123.90.47.122
191.36.42.1
  • Sockets are independently closed at each side of
    the connection.
  • Listening socket must also be closed
    independently if server shuts down.
  • After waiting for twice the maximum packet
    lifetime, the port is released and is available
    for use again.

37
Socket attributes
  • Local address (port network address) if bound
  • Remote address (port network address) if
    connected
  • Stream vs. datagram
  • Usual value stream
  • Protocol TCP, UDP, other
  • Blocking vs. non-blocking
  • Usual value blocking
  • A blocking socket will stop and wait for the
    following operations to complete
  • Accept wait until connection request arrives
  • Receive wait until data is available

38
The Application View of a Socket
  • In C, a program views a socket as a file
    descriptor.
  • On Unix/Linux, socket( ) is a direct call to the
    operating system.
  • Calling socket( ) returns a file descriptor.
  • On Windows, you can use the basic interface
    directly via the winsock library.
  • In C and Java, sockets are implemented within a
    class library, and then the programs view of a
    socket is an object reference.

39
Java Sockets - 1
  • Primary classes
  • Socket used for TCP outgoing connection or data
    transfer streams
  • ServerSocket used to listen for incoming TCP
    connections.
  • DatagramSocket used for UDP datagrams (if
    allowed by security manager)
  • Instances of Socket and ServerSocket are always
    blocking.
  • The Java class library uses constructor
    parameters to combine some of the steps.
  • Creating a new Socket can also include the
    connect step.
  • Creating a new ServerSocket can also include the
    bind, and listen steps.

40
Java Sockets - 2
  • Java stream sockets have separate input and
    output streams.
  • Typical usage
  • Get input and/or output streams from socket
  • Wrap stream in one of the stream classes.
  • Use stream write or read methods to send or
    receive.
  • Close streams and socket.
  • All socket operations may throw IOExceptions (or
    more specific exceptions).

41
Java Sockets Example client
  • // Implicit local port bind done by socket
    constructor
  • socket new Socket( ?127.0.0.1?, 80 ) // remote
    IP port
  • // Get and wrap input / output streams
  • inStream new ObjectInputStream(aSocket.getInputS
    tream())
  • outStream new ObjectOutputStream(aSocket.getOutp
    utStream())
  • // Data transfer
  • outStream.writeObject( object1 )
  • object2 inStream.readObject( ) // Blocks until
    data arrives
  • // Close streams and socket
  • inStream.close()
  • outStream.close() // Sends TCP 'FIN'
  • socket.close() // Unbind socket
Write a Comment
User Comments (0)
About PowerShow.com
