SubSystems for HF Application

1

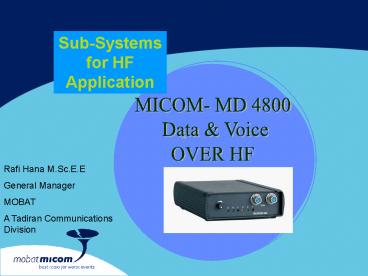

Sub-Systems for HF Application
MICOM- MD 4800 Data Voice OVER HF
Rafi Hana M.Sc.E.E General Manager MOBAT A
Tadiran Communications Division
2
The New HF Systems Advantages
Stable and Accurate Frequencies - Improves the
Quality ALE STD (141B) - Simplifies the
Operation New MODEM Technology - Expanded the
Use of Data App. New Digitized Voice Technique -
Improves the Voice Quality Reduces
the HF Noise.
3
Voice Data Applications based onVOCODER HF
Data Modem

• VOCODER 1200, 2400 bps
• MODEM MIL-STD-188-110B
• Side Effect
• Encryption AES Standard

4
Basic Block Diagram
PC RS232 USB
Interface
HOST CPU
AES Encryptor
188-110B MODEM
Audio Handset Fixed Lvel
1200,2400 VOCODER
5
Basic System Configuration
Secure Voice Data
Plain Voice
6
Special Features

• V-AMD Allows Voice- Messages that penetrate
  negative-SNR channels for emergency application
• Operational features
• REC. Recording messages.
• SEL. Selecting one / five.

7
Encryptor

• AES Advanced Encryption Standard.
• The New Federal Information Processing
  Standard (FIPS)
• Keys 7 technician-key (option 31k)
• HMI PC-menu or MICOM front panel.
• OTAR Select Keys (Option Key Loading)

8
Voice Coding

• Two approaches for Voice coding
• Waveform Coders
• Among popular methods CVSD?, ADPCM?, PCM?
• (16K,32K,64K bps)
• Parametric representation (Vocoders)
• Speech model derived from speech characteristics
• Low bandwidth (600,1200,2400 bps)

9
Vocoders
Speech model
10
Vocoders

• Two principal families of Voice Coders
• Source Codecs - operate based on the speech model
  ( LPC)
• Hybrid Codecs - attempt to bridge between Source
  Codecs and Waveform Codecs (MPE, RPE, CELP, MBE,
  MELP).

11
Performances
MOS - Mean Opinion Score Voice Quality measure
12
Our's Vocoder - Performances
Digital voice is the New Generation Requirement
13
MODEM

• MIL-STD-188-110B 75-4800 bps
• with better Adopt performance.
• DSP Implementation Ready for Future Growth

14
Basic MODEM BLOCK DIAGRAM
15
CONSTELLATION FOR MIL-STD-188-110B sec. 5.3.2
16
Modem Performance

• Performance is NOT essentially dictated by SNR.
• ISI-length Doppler-Spread
• can cause modem collapse in spite of very
  high SNR.

17
Surface Performance
a 300 bit/sec 8PSK Serial Tone MODEM
18
MOBAT-MODEM PERFORMANCE VERSUS STANDARD
PERFORMANCE MIL-STD-188-110B sec. 5.3.2
19

• HF CHANNEL Multi-Path (RAYS)
• IN STANDARDS LITERATURE
• Watterson 1970 Measurements
• Found up to 4-Rays (Multi Path).
• Two Magneto-ionic components.
• ETSI DRM STANDARD (Digital Radio Mondiale)
• Up to 4-Rays should be tested.
• Field-test found 5-Rays.
• MIL-STD-188-110A, 110B, STANAG-4539,
• Only Two-Rays should be tested.
• In Real HF Conditions There are More than 2 Rays.

20
MODEM Visualization Tools Scatter-Diagram
Impulse-Response
21

• MOBAT HF-MODEM
• MULTI-RAY
• OVER-STANDARD TESTING
• Up to 5-Rays were tested.

22
FIELD-TESTS RESULTS Conducted Nov 28 Dec 10
2002 Link-Range 200 KM
Testing Tools
Summary of field test results from 9/12/2002
23
Received Signal for the 3 cases above From field
test results of 9/12/2002
6 dB/Div
Despite the severe conditions, reception was
achieved with BER0.
Spectrum for 2400, long, 9.387MHz, time 100100
24
6 dB/Div
Spectrum for 150, long, 9.387MHz, time 133800
25
Signal for 2400, long, 5.395MHz, time 145850,
length 40 sec
26
6 dB/Div
Spectrum for 2400, long, 5.395MHz, time 145930
27
Summary Recommendations

• We presented the MICOM MD-4800
• As a new Technology application for Digital
  Secure Data and Voice
• Our recommendations
• To add one more ray to the 110B STD.
• To specify a voice coder for HF application.
• To add a Voice-AMD to the STD.

28
MICOM MD-4800 Technology for the New Generation
Thank You
