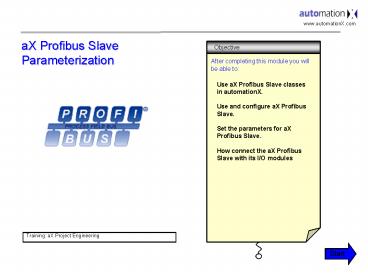

aX Profibus Slave Parameterization

1
aX Profibus Slave Parameterization
Use aX Profibus Slave classes in
automationX. Use and configure aX Profibus
Slave. Set the parameters for aX Profibus
Slave. How connect the aX Profibus Slave with
its I/O modules

• Training aX Project Engineering

2
aX- Profibus Classes Overview

• Standard Parameters of aX Profibus Slave
• aX Profibus Parameters
• aX specific Profibus Slave Status Variables
• Connection of aX Profibus Slave to Its Modules
• aX Profibus Slave Diagnostic
• aX Profibus Slave Parameterization
• aX Profibus Module Parameter
• aX Profibus Module Status Variables
• aX Profibus Slave State Machine

3
Standard Parameters of aX Profibus Slave
These variables are aX Profibus standard
parameters and required for aX Profibus
communication.

• Connection aX Profibus Master card
• Address of aX Profibus Slave
• The watchdog function permits the slave to
  monitor the bus communication time to be sure
  that the Profibus master is still active.
• Wd_fact_1 wd_fact2 10ms is the delay for the
  watchdog
• GSD name for this aX Profibus DP Slave
• DP Slave group identifier

4
aX Profibus Parameters
These parameters enable you to control the aX
Profibus communication.
The outputs on the Slave system are
frozen. Deactivate the freeze mode.  Hold
out-/inputs. Stop the sync mode. Clears the
out-/inputs. Reset the state machine for slave
handling Request for new parameterization
5
aX specific Profibus Slave Status Variables
These aX Profibus Slave parameters give you
information about the actual state of the aX
Profibus Slave.
Init counter Counter for valid data
transfers YES in case of hardware error YES in
case of software error YES in case of module
error Status value of the state machine Status
string of the state machine Indicates a new
error message Error message list
6
Connection of aX Profibus Slave to Its Modules
These aX Profibus Slave parameters are required
to connect the Slave with its modules.
The instance name of this module will be
connected to the following one. Internal class
connection Connection to aX-Device data
container Show all connected I/O modules
7
aX Profibus Slave Diagnostic
The diagnostic parameters will be filled out
automatically in case of a diagnostic message.
Indicates new diagnostic data Active device
diagnostic data length Device diagnostic
data Active identifier diagnostic data
length Identifier diagnostic data Active
channel diagnostic data length Channel
diagnostic data
8
aX Profibus Slave Parametrization
In cyclic mode, the parameter data will only be
taken over after an new prm request.
User parameter data are valid Length of user
parameter data User parameter data
9
aX Profibus Module Parameter
Connection to the next aX Profibus module The
name of the aX Profibus module ? it must be the
same as in the GSD file of the aX Profibus
Slave. The length of the input data
(Byte) Input data of module The length of the
output data (Byte) Output data of module
10
aX Profibus Module Status Variables
In the module you can also use the variables for
diagnostic, user parameter and error messages.
Shows you the actual module position Yes if
module is valid Yes if Input data are valid
11
aX Profibus Slave State Machine Configuration and
Parametrization
Legend 1 Not supported, Master lock, Slave
deactivated, prm from other Master 2 Prm fault,
Prm request, no Master address, WD on 3 Station
not ready 4 External diagnosis 5 Invalid
Slave response, status diagnosis
12
aX Profibus Slave State Machine Cyclic and
Acyclic Data Exchange
Legend 6 Cyclic data exchange 7 Acyclic
service executed (global control request, ...) 8
High priority telegram
13
aX Profibus Slave State Machine State Description
14
Exercise

• Describe?
• Describe?

15
Expert Tips and Hints

• Tip 1
• Tip 2
• Tip 3

16
Reference Material

• available from our web-site www.automationX.com
