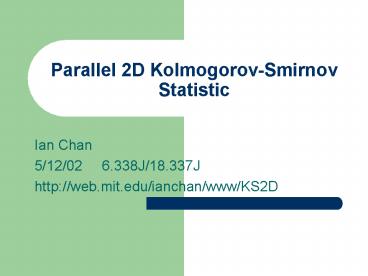

Parallel 2D Kolmogorov-Smirnov Statistic

1
Parallel 2D Kolmogorov-Smirnov Statistic

• Ian Chan
• 5/12/02 6.338J/18.337J
• http//web.mit.edu/ianchan/www/KS2D

2
Motivation my friends research
A colossal X-ray flare, likely sparked by a
central Milky Way black hole, produced the bright
spot in this Chandra image. Source CNN
3
1D Kolmogorov Smirnov Statistic

• test difference in two empirical distributions
• F ¹ G nonparametrically
• D statistic maximum difference between 2 CDFs

4
1D KS Test Bound

• Kolmogorov(1933) asymptotic bound

5
2D Analog of KS Test

• Peacock J, Monthly Notices of the Royal
  Astronomical Society, 1983, vol 202 p615
  Two-Dimensional Goodness-of-Fit Testing in
  Astronomy
• D statistic considering all possible quadrant
  divisions, the largest possible difference in
  CDFs

6
2D KS Test Bound

• Monte Carlo simulated bounds

Z D n1/2
7
KS2D Test Brute Force Algorithm

• O(n2), not exhaustive, quadrants centered at each
  data ponts
• O(n3), exhaustive, quadrants centered at each
  possible data x and data y combination

8
O(nlogn) KS2D algorithm

• Author A. Cooke (1999)
• construction of binary tree data structure (
  O(nlogn) ), require pre-sorted sample data by y

9
How it works (1) Tree construction

• quadrants centered at (x,y) must have upper left
  quadrant contains all samples (a,b) where a lt x
  AND b lt y
• If childless node, Dmin Dmax 1/Nsquare or
  1/Ncircle, depending on class

10
How it works (2) Upward Propagation
At node (2,3), we find the MIN and MAX from the 3
choices 1 inherit Dmin/max from its left child
(1,2), which implies that Q excludes (2,3) where
Q is the quadrant that contains the largest D 2
D delta(left child) (0/Ns-1/Nc), which
implies Q contains (2,3) and has (2,3) on its
border. Delta(x) diff in CDF if quadrant
contains all samples in subtree at x 3 D
delta(left child) (0/Ns-1/Nc) Dmin/max (right
child), which implies Q contains (2,3) and (2,3)
is not on its border
11
The other 3 quadrants

• We have considered the Top Left Quadrant, but the
  Top Right quadrant can be obtained from the same
  tree structure if we modify the upward
  propagation rule by swapping left right, i.e.
• At node (2,3), we find the MIN and MAX from the 3
  choices
• 1 inherit Dmin/max from its right child (1,2),
  which implies that Q excludes (2,3) where Q is
  the quadrant that contains the largest D
• 2 D delta(right child) (0/Ns-1/Nc), which
  implies Q contains (2,3) and has (2,3) on its
  border. Delta(x) diff in CDF if quadrant
  contains all samples in subtree at x
• 3 D delta(right child) (0/Ns-1/Nc) Dmin/max
  (left child), which implies Q contains (2,3) and
  (2,3) is not on its border
• The Bottom Left/Right Quadrants can be obtained
  if the tree is built with samples sorted by
  reverse order of y.

12
Parallel KS2D Algorithm

• Speed possibly scales linearly with number of
  processors during the upward propagation step,
  cannot parallelize the tree construction step
• Problem size scales linearly with number of
  processors because sample nodes are stored in
  processors distributively
• Challenges
• Load Balancing Dividing the tree nodes equally
  among processors
• Minimize communications Try to store an entire
  subtree into a single processor so that less
  inter-processor communication is necessary.

13
Load Balancing and Minimum Communications

• Ideally

14
Load Balancing Strategy (1) Pre-processing

• Randomly sample 1000 data points. Sort
  them by x. Consider the 1/numproc1000th,
  2/numproc1000th,
• (numproc-1)/n1000th positions and use
  them to define intervals for load balancing
• Drawback assumes x and y to be more or less
  independent

15
Load Balancing Strategy (2) adaptive

• Keep a running average of the x values of
  nodes stored in each processor. For every
  CHECKPOINT(2000) number of samples, if the load
  is skewed (if difference of load between the
  heaviest load processor and the lightest load
  processor gt 30 of load of lightest processor)
  change the load balancing intervals to midpoints
  of the running averages.

16
Performance(1)

• 20,000 and 200,000 samples from uniform 0,1
  distribution

17
Performance (2)

• Effects of adaptive load-balancing on performance
  for samples from standard normal distributions
  centered at
• (-0.7,0.7)
• and (0.7, -0.7)

18
Conclusion for Parallel KS2D

• Speedup is not great, especially when more
  processors are used because of communication
  overhead.
• Load balancing strategies is noticeably effective
  for certain data distributions, need dependent on
  samples
• Distributive Memory Gains the ability to solve
  larger problems
