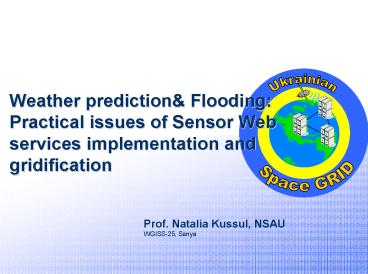

Weather prediction Flooding Practical issues of
Sensor Web services implementation and
gridification
  • Prof. Natalia Kussul, NSAU
  • WGISS-25, Sanya

2
Outline
  • Sensor Web overview
  • Test case floodings
  • SensorML experience
  • Sensor Observation Service experience
  • Sensor Web gridification
  • Our plans

3
Sensor Web the purpose
  • Integration of heterogeneous sensors into the
    information infrastructure
  • Sensors discovery and data access
  • Composition of dataflows between system
    components
  • Events triggering by sensors conditions

4
OpenGIS Standards
  • SW Enablement working group at OGC have developed
    a number of standards governing different aspects
    of Sensor Web

5
Test Case
  • The task under study is flooding in different
    regions of world
  • Particular test case is floodings in Mozambique

6
Test Case Weather Prediction data flow
7
Test case Flood Monitoring data flow
8
Test Case data sources
  • ASAR
  • MODIS
  • MERIS
  • LandSat
  • DEM

9
Test Case SW perspective
10
Test Case Mozambique
  • http//floods.ikd.kiev.ua

11
SensorML
  • Sensor modeling language is the cornerstone of
    all SW services
  • It provides comprehensive description of sensor
    parameters and capabilities
  • It can be used for describing different kind of
    sensors
  • Stationary or dynamic
  • Remote or in-situ
  • Physical measurements or simulations

12
SensorML example
  • ..............
  • ltinputsgt
  • ltInputListgt
  • ltinput name"ambiantTemperature"gt
  • ltsweQuantity definition
  • "urnogcdefphenomenontemperature"/gt
  • lt/inputgt
  • ltinput name"atmosphericPressure"gt
  • ltsweQuantity definition
  • "urnogcdefphenomenonpressure"/gt
  • lt/inputgt
  • ltinput name"windSpeed"gt
  • ltsweQuantity definition
  • "urnogcdefphenomenonwindSpeed"/gt
  • lt/inputgt
  • lt/InputListgt
  • lt/inputsgt
  • ..............

............. ltoutputsgt ltOutputListgt ltoutput
name"weatherMeasurements"gt ltsweDataGroupgt
ltswecomponent name"time"gt ltsweTime
definition"urnogcdefphenomenontime
uom"urnogcdefunitiso8601"/gt
lt/swecomponentgt ltswecomponent
name"temperature"gt ltsweQuantity definition
"urnogcdefphenomenontemperature
uom"urnogcdefunitcelsius"/gt
lt/swecomponentgt ltswecomponent
name"barometricPressure"gt ltsweQuantity
definition"urnogcdefphenomenonpressure
uom"urnogcdefunitbar" scale"1e-3"/gt
lt/swecomponentgt ltswecomponent
name"windSpeed"gt ltsweQuantity
definition"urnogcdefphenomenonwindSpeed
uom"urnogcdefunitmeterPerSecond"/gt
lt/swecomponentgt lt/sweDataGroupgt
lt/outputgt lt/OutputListgt lt/outputsgt .............
13
SensorML WRF model
  • Modeling and simulation are very important parts
    of environmental monitoring
  • Sensor Web infrastructure should be able to
    integrate modeling data in convenient way
  • We have tried to describe weather modeling
    process using WRF numerical model in terms of
    SensorML

14
SensorML WRF model
  • An example of single model input in SensorML
  • ltsmlinput name"QVAPOR"gt
  • ltsweDataArray definition"urnogcdefphenomenon
    time"gt
  • ltsweelementCountgt
  • ltsweCount definition"urnogcdefpropertyOGC
    numberOfPixels"gtltswevaluegt1lt/swevaluegtlt/sweCou
    ntgt
  • lt/sweelementCountgt
  • ltsweelementType name""gt
  • ltsweDataArray definition"urnogcdefphenomen
    onaltitude"gt
  • ltsweelementCountgt
  • ltsweCount definition"urnogcdefpropertyO
    GCnumberOfPixels"gtltswevaluegt30lt/swevaluegtlt/swe
    Countgt
  • lt/sweelementCountgt
  • ltsweelementType name""gt
  • ltsweDataArray definition"urnogcdefphenom
    enonlatitude"gt
  • ltsweelementCountgt
  • ltsweCount definition"urnogcdefproperty
    OGCnumberOfPixels"gtltswevaluegt202lt/swevaluegtlt/s
    weCountgt
  • lt/sweelementCountgt
  • ltsweelementType name""gt
  • ltsweDataArray definition"urnogcdefphen
    omenonlongtitude"gt

15
SensorML WRF model
  • There are nearly 50 inputs and 20 outputs for
    basic WRF configuration
  • Each of them requires quite significant amount of
    XML code to be properly described
  • It would be great if next revision of SensorML
    will include some elements for simpler
    description of multidimensional data
  • Another negative issue is inconsistency between
    SML specification, published XML schemas and
    educational materials

16
Sensor Observation Service
  • We have studied two possible implementations of
    Sensor Observation Service (SOS) for serving
    temperature sensors data
  • Implementations under study were
  • UMN Mapserver v5 (http//mapserver.gis.umn.edu/)
  • 52North SOS (http//52north.org/)
  • Lesson learnt there isnt (yet) really good and
    reliable solution for serving data through SOS
    protocol
  • However for some cases 52Norths implementation
    provides good experience

17
Sensor Observation Service
  • UMN Mapserver (as SOS server)
  • Pros
  • Very good and reliable abstraction for different
    data sources (raster files, spatial databases,
    WFS, etc)
  • Simple application model (CGI executable)
  • Wide set of features beside SOS
  • Open software
  • Cons
  • SOS support is declared but far from being
    working
  • Poor documentation on SOS topic
  • Strange plans for future development (automatic
    SensorML generation)

18
Sensor Observation Service
  • 52North SOS
  • Pros
  • SOS implementation is stable and complete
  • Platform-independent (Java-based)
  • A part of wider SW implementations stack (SPS,
    SAS)
  • Open software
  • Source code is clean and easily reusable
  • Cons
  • No data abstraction the only data source is
    relational database of specific structure
  • Database structure is far from optimal (strings
    as primary keys, missed indexes, etc)
  • Complex application model (Java web application)

19
Sensor Observation Service
  • We have used 52North implementation for building
    a testbed SOS server
  • http//web.ikd.kiev.ua8080/52nsos/sos
  • Server is providing data of temperature sensors
    over Ukraine and South Africa region
  • Data comes from PostGIS database with some tweaks
    to make is compatible with 52North database
    structure (VIEWS, index tables, etc)
  • Performance is quite good for our DB. Yet, for
    other DBs such adaptations could lead to
    unacceptable drops in performance

20
Sensor Observation Service
21
Sensor Observation Service
  • Example of single SOS measurement...
  • ltomMeasurement gmlid"o255136"gt
  • ltomsamplingTimegt
  • ltgmlTimeInstant xsitype"gmlTimeInstantTyp
    e"gt
  • ltgmltimePositiongt2005-04-14T04000004lt/gm
    ltimePositiongt
  • lt/gmlTimeInstantgt
  • lt/omsamplingTimegt
  • ltomprocedure xlinkhref"urnogcobjectfeatu
    reSensorWMO33506"/gt
  • ltomobservedProperty xlinkhref"urnogcdefp
    henomenonOGC1.0.30temperature"/gt
  • ltomfeatureOfInterestgt
  • ltsaStation gmlid"33506"gt
  • ltgmlnamegtWMO33506lt/gmlnamegt
  • ltsasampledFeature xlinkhref""/gt
  • ltsapositiongt
  • ltgmlPointgt
  • ltgmlpos srsName"urnogccrsepsg4326"gt3
    4.55 49.6lt/gmlposgt
  • lt/gmlPointgt
  • lt/sapositiongt

22
Sensor Observation Service
  • ... and the whole time serie of observations
  • ltomresultgt2005-03-14T21000003,33506,-5_at__at_200
    5-03-15T00000003,33506,-5.2_at__at_2005-03-15T03000
    003,33506,-5.5_at__at_2005-03-15T06000003,33506,-4.6
    _at__at_2005-03-15T09000003,33506,-2.2_at__at_2005-03-15T12
    000003,33506,1.7_at__at_2005-03-15T15000003,33506,
    1.7_at__at_2005-03-15T18000003,33506,2.4_at__at_2005-03-15T
    21000003,33506,-0.7_at__at_2005-03-16T00000003,335
    06,-1.4_at__at_2005-03-16T03000003,33506,-1.1_at__at_2005-0
    3-16T06000003,33506,-1.1_at__at_2005-03-16T0900000
    3,33506,-1.3_at__at_2005-03-16T12000003,33506,0.5_at__at_20
    05-03-16T15000003,33506,1.7_at__at_2005-03-16T18000
    003,33506,1.5_at__at_lt/omresultgt

23
Gridification rationale
  • Sensor Web services like SOS, SPS and SAS can
    benefit from integration with Grid platform like
    Globus Toolkit
  • Advantages includes
  • Sensors discovery through Index Service
  • High-level access to XML description
  • Convenient way for implementation of
    notifications and event triggering
  • Reliable data transfer for large datasets
  • Enforcement of data and services access policies

24
Gridification implementation
  • We have developed a testbed SOS service using the
    Globus Toolkit platform
  • For now, service works as proxy translating and
    redirecting user request to usual SOS-server

25
Gridification implementation
  • We have developed a testbed SOS service using the
    Globus Toolkit platform
  • For now, service works as proxy translating and
    redirecting user request to usual SOS-server
  • Next version should have in-service
    implementation of SOS-server functionality

26
Gridification problems
  • The main problem of implementation of OGC Grid
    service lies in complexity of XML schema used
  • According to OGC SOAP Interoperability
    Experiment, none of available SOAP binding tools
    were able to parse OGC schemas completely (year
    2003)
  • Situation havent improved significantly till now
  • The main problem of complexity is GML data types

27
Gridification problems
  • This problems could be solved by using custom
    serializers for services XML data
  • However this way is complex in implementation and
    debugging
  • Lets hope that the situation will improve from
    both sides

28
Out plans
  • Our future works include
  • Implementation of Mozambique test case in terms
    of Sensor Web
  • To participate in IC "Space and Major Disasters
    with architectural proposals
  • To provide stable Grid-based implementation of
    Sensor Web services
  • To collaborate with International Red Cross
    organization within its tasks

29
Our plans Red Cross tasks
30
