Actel Antifuse FPGA Information Radiation Tests

1

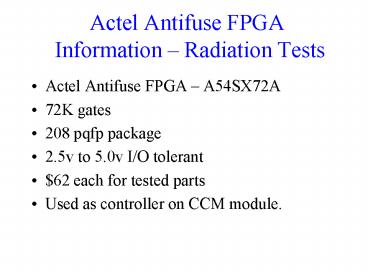

Actel Antifuse FPGA Information Radiation
Tests

• Actel Antifuse FPGA A54SX72A
• 72K gates
• 208 pqfp package
• 2.5v to 5.0v I/O tolerant
• 62 each for tested parts
• Used as controller on CCM module.

2
Fermilab Actel RadiationTest 1 Results

• Tested 8 devices at Indiana University Cyclotron
  in September 2001.
• 4 per board. 2 on each side of a board(Fit in
  beam spot).
• Each device was loaded with a 2,012 bit shift
  register.
• Tested for SEL, SEU, TID.

3
TEST BOARD
4
SEU Tests

• Tested by shifting in a 0-1-0-1 pattern into all
  2012 FF.
• Connected Input to Output of shift register.
• Clocked at 40M hz.
• Shift register read out every minute while
  exposed to beam.
• Checked bit flip in pattern.

5
SEL Test

• Monitored current drain of each device while in
  the beam.
• Performed at same time as SEU test.
• Control Box monitors current and disables power
  to DUT if current goes over limit.

6
TID test

• Performed at same time as SEU and SEL.
• TID is determined by operation of device.

7
Results

• TID gt 100K Rad
• SEL 0
• SEU Maximum was 63 bit flips after 549 seconds
  fluence at 2E12 p /cm2

8
DATA
9
SEU Calculations

• Failures in system/time
• parts in system failures in part 1/fluence
  expected dose rate
• SEU in System from FPGA
• 130 63 1/2E12 4E11 n/cm2/10yrs
• SEU per day 0.5

10
Notes

• Actel makes commercial, rad tolerant and rad hard
  Antifuse FPGA.
• Same naming scheme add RT or RH to front of
  part number.
• Commercial parts made using the same process as
  the Rad parts.
• Parts come from two foundries. No SEL from one of
  the Foundries.
• SEU mitigation(TMR) in Critical areas.

11
Links

• http//www.actel.com/
• http//www.actel.com/products/devices/radhard/radp
  erf.pdf
• http//klabs.org/richcontent/fpga_content/SXA_Seri
  es/BNL_08_01/SX72S/BNL_08_01_SX72S_MEC_Damage.htm
• http//rd49.web.cern.ch/RD49/RD49News/pres2303/rd4
  9dalla.pdf

12
Fermilab Actel RadiationTest 2 Results

• Tested 8 devices at Indiana University Cyclotron
  in October 2002.
• 4 per board. 2 on each side of a board(Fit in
  beam spot).
• Each device was loaded with a 670 bit shift
  register implemented with TMR.
• Tested for SEL, SEU, TID.

13
Results

• TID gt 100K Rad
• SEL 0
• SEU Maximum was 0 bit flips after 549 seconds
  fluence at 2E12 p /cm2

14
(No Transcript)
15
(No Transcript)
16
SEU Calculations

• Failures in system/time
• parts in system failures in part 1/fluence
  expected dose rate
• SEU in System from FPGA
• 130 0 1/2E12 4E11 n/cm2/10yrs
• SEU per day 0.0

17
Notes

• The TMR reduced the SEU count to 0.
• The non TMR design for the CCM uses about 50 of
  the sequential cells in the 72A part. We will
  implement TMR in critical areas of the design.
