Evaluation of Information Systems Testing

1

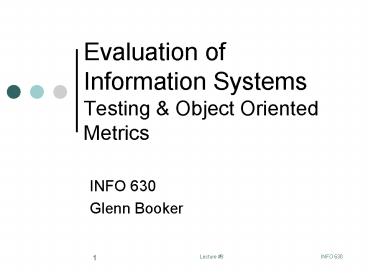

Evaluation of Information SystemsTesting
Object Oriented Metrics

• INFO 630
• Glenn Booker

2
Software Testing Overview

• Software testing is the process of executing a
  software system to determine if it matches its
  specification and executes correctly in its
  intended environment
• Requires running an executable program with real
  or simulated inputs to determine its response

3
Software Testing Overview

• Incorrect software behavior leads to a failure
• Produces incorrect outputs
• Code executes too slowly
• Code uses too much memory
• Failures are caused by faults

4
Testing Prerequisites

• Code reviews uncompiled source code is read and
  analyzed statically
• May use Formal methods to provide proof of
  correctness (Z, Larch)
• Specification defines correct behavior so that
  incorrect behavior is easier to identify (if you
  dont know what it should do, when is it broken?)

5
Software Testing by Phase

• Unit testing tests individual software components
  (modules)
• To test, need to define the input domain for unit
  in question and ignore rest of system
• Integration (or component) testing tests
  combinations of units that have each passed
  previous unit testing
• Focus is on a larger subset of domain,
  representing communication between units

6
Software Testing by Phase

• Regression testing tests code containing bug
  fixes or new features to ensure original
  functions still work (may be used during
  development and maintenance)
• System testing tests a collection of components
  which are regarded as a deliverable product

7
Testing S Curve

• A common method for tracking test cases is to
  count the total number of test cases planned over
  time
• Often looks like an s-shaped curve

8
Testing S Curve

• Then, plot the number of test cases attempted,
  and successfully completed all also over time
• Main purpose is to help estimate test completion

9
Defect Arrival

• As a project progresses, defects are identified
  in documents, code, etc.
• A typical mechanism for tracking these defects is
  a Problem Tracking Report (PTR)
• The rate of testing, and quality of the code,
  determine the rate at which new PTRs will be
  discovered

10
Defect Arrival

• Generally want more PTRs found early in testing,
  so there are few defects found near an intended
  release or product shipment
• Can track trends in PTR discovery across several
  releases
• Also key to track backlog number of PTRs
  remaining to be fixed

11
Product Size

• Product size is critical to estimation of
  development effort and schedule, making it the
  most common basic measurement of the product
• Can track the number of lines of code released
  over time (so each key event is a release date
  and its size)

12
Other Testing Measures

• Measures during testing could also include
• Percent of CPU utilization
• Number of system crashes and hangs per week
• Average time between crashes or hangs (text
  refers to unplanned IPL (Initial Program Load
  boot))

13
Severity of Problems

• As problems are identified through PTRs, their
  severity or criticality is important to assess
• Resolving PTRs which cause complete system
  failure or severe trouble can preempt all other
  activity
• Release criteria can include specific numbers of
  PTRs by severity

14
Testing Process Measurement

• Often helps to use calendar time to measure
  process-related metrics, instead of life cycle
  phase
• Time-based measurements are best presented
  relative to the release date, to help focus
  attention on the goal
• Qualify measurements as good/bad or
  red/yellow/green

15
Defect Cause Classification

• Look for patterns of defect arrival, and what
  kind of defects are identified
• Patterns such as by testing phase (unit,
  component, regression, or system test)
• Kind of defect, such as per the ODC or some other
  classification scheme

16
Measures That Work

• No set of testing measures are The correct
  set, so monitor the effectiveness of your
  measures in providing meaningful information
• Change measures slowly, to allow for significant
  data to be collected for each set

17
Measures That Work

• Likewise, specific measures and goals for them
  need to be defined
• In order to evaluate a vendor-developed product,
  or
• Determine when a release is ready to go

18
Testing Test Case Type

• Testing may be done for structural and/or
  functional test cases
• Structural testing focuses on correctness of the
  code structure
• Functional testing focuses on the software
  meeting its requirements
• Both types are generally used some more in
  certain life cycle phases

19
Structural Testing

• Structural testing inputs based solely on
  structure of the source code or its data
  structures
• Also called code based testing, or white box
  testing
• Structural testing may focus on
• Control flow which module is currently being
  run?
• Data flow software moves data from one
  location to another

20
Structural Test Cases

• Criteria (measures) for structural testing
  completeness
• Has testing covered all common programming
  errors?
• Has all source code been exercised?
• Statements, branches, independent paths
• Has all internal data been initialized and used?

21
Structural Test Cases

• Example Control flow based
• Draw control flow graph for code
• Determine its cyclomatic complexity
• Determine basis set of linearly independent paths
  (also used for regression)
• Prepare test cases that will force execution of
  each path in basis set

22
Predicate Testing (Structural)

• What can go wrong with predicates
• Boolean operator error (not, and, or)
• Boolean variable error (wrong variable)
• Boolean parentheses error (unmatched)
• Relational operator error (lt, lt, etc.)
• Arithmetic expression error (, -, etc.)

23
Predicate Testing (Structural)

• If (Cond1 or cond2) then
• Cover all possible T/F conditions e.g. if there
  are two T/F conditions, check
• Cond1 true, cond2 true
• Cond1 true, cond2 false
• Cond1 false, cond2 true
• Cond1 false, cond2 false

24
Loop Testing (Structural)

• Simple loop Let N be the maximum number of
  allowable passes through loop
• Define test cases which will
• Skip loop entirely
• One pass through loop
• Two passes through loop
• Some typical middle number of passes through
  loop
• N-1 passes through loop
• N passes through loop
• N1 passes through loop

25
Functional Testing

• Functional testing test cases are selected
  without regard to source code structure
• Based on attributes of the specification or
  operational environment
• Also called black box testing, behavioral
  testing, or specification based testing

26
Functional Test Selection

• Criteria for functional testing completeness
• Have ways that software can fail been thought
  through?
• Have test cases been selected that show it
  doesnt fail?
• Have all of the inputs been applied?
• Have all possible software states been explored?
• Have all user scenarios been run?

27
Functional Test Selection

• Design tests to answer the following questions
• How is functional validity tested?
• What classes of inputs will make good test cases?
• Is the system sensitive to certain input values?
• How are boundaries of a data class isolated?

28
Functional Test Selection

• What data rates and data volume can the system
  tolerate?
• What effect will specific combinations of data
  have on system operation?

29
Unit Testing Strategy

• Focus testing effort on small unit of design
• Module consists of a Subprogram, Class or
  Package
• Often unit testing is white box (structural)
  oriented

30
Unit Testing - Strategy

• Develop test cases to check
• Interfaces
• Boundary conditions
• Local data structures
• Independent paths
• Error handling paths
• Measure percent of each covered during testing

31
Unit Testing Procedures

• Module is generally invoked by or invokes other
  modules
• Calls or is called by subprograms
• Uses or is used by classes, packages

32
The Idea of Stubs
Stubs are the start of a module, used as a
placeholder
33
The Idea of Stubs
34
Integration Testing Top Down Integration

• Typical Steps (see next slide)
• Main module (m1) used as test driver
• Use stubs for subordinates (m2, m3, m4)
• Replace subordinate stubs one at a time with
  actual modules
• Tests are conducted as each module is integrated
• Continue to replace stubs with modules and test
• Regression test to ensure no new errors introduced

35
Integration Testing Top Down Integration
Code modules
36
Integration Testing Bottom Up Integration

• Typical Steps (see next slide)
• Low level modules are combined into builds
  (clusters)
• Driver (higher level stubs) are written to
  control test case I/O (input and output)
• Cluster is tested
• Drivers are removed, clusters are combined moving
  upward

37
Integration TestingBottom Up Integration
First test A, then B C separately, then
integrate into D
38
Regression Testing

• Regression testing occurs when
• Software faults are repaired and/or
• Software is enhanced
• Given some version N of software
• Collection of faults to be repaired are bundled
  with a collection of enhancements to be made
• This modified software constitutes version N1

39
Regression Testing

• How much retesting is required of the N1 version
  to determine if faults repaired or no new faults
  are added in the enhanced portions of software?
• For faults which are repaired
• Can fix fault that was reported
• Fail to fix the fault
• Fix fault, but injected a new fault
• Failed to fix fault, and injected a new fault

40
Adequacy of Test Coverage

• Fault seeding insert faults intentionally into
  the code
• Based on capture/recapture models in biology
• Apply test cases, discover what fraction of
  seeded faults are discovered
• Assume that the fraction of unseeded faults are
  in the same proportion
• Given numbers of seeded faults vs. the seeded
  faults uncovered, and the number of unseeded
  faults found, can then estimate the number of
  unseeded faults remaining.

41
Object Oriented Metrics

• Many of the traditional software metrics can also
  be applied to object-oriented software
• Lines of code
• Cyclomatic complexity
• Percent of comments
• In addition, several sets of metrics specifically
  for OO development exist

42
OO Counting Metrics

• Often counting basic characteristics is helpful,
  such as
• Number of classes
• Average number of LOC per class
• Average number of methods per class
• Average number of LOC per method

43
OO Productivity

• Productivity during object oriented development
  is measured much like any other code creation
  process
• Typical measures are LOC/hour, function points
  per person-month (PM), or number of classes per
  person-year (PY)
• Any kind of size measure per unit time could be
  used

44
OO Quality

• Quality measures can include the number of
  defects per class, but defects per KLOC are much
  more commonly accepted
• Quality measures are typically used to identify
  problem areas of code, much like procedural
  quality measures

45
Object Oriented Metrics

• The six CK metrics are a common foundation for
  OO measurement
• Weighted methods per class (WMC)
• Response for a class (RFC)
• Lack of cohesion of methods (LCOM)
• Coupling between objects (CBO)
• Depth of inheritance tree (DIT)
• Number of children (NOC)

46
Sample Class Diagram
47
Weighted methods per class (WMC)

• WMC is defined for each class
• WMC could be defined two ways
• The number of methods (messages) for each class
• E.g. class Triangle has WMC2 (for methods area
  and perimeter), but Quadrilateral only has WMC1
  (perimeter)
• The sum of complexities for all methods for each
  class
• Code specific

48
Response for a class (RFC)

• RFC is the sum of how many ways all methods may
  be used by the class to implement all messages
• Class Polygon has five objects which may invoke
  perimeter differently
• Class Triangle has three objects which may invoke
  area differently
• Hence RFC for Polygon is 538

49
Lack of cohesion of methods (LCOM)

• Measures how isolated classes are by how often
  they use the same attributes
• One method Find percent of methods which use a
  given attributeAverage those percentages for
  the classSubtract from 100Low resulting value
  means higher cohesion (a good thing usually)

50
Lack of cohesion of methods (LCOM)

• Another method Look for pairs of methods which
  share an attributeCount how many different
  groups of pairs were foundLow number means less
  cohesion (bad)

51
Coupling between objects (CBO)

• Coupling between object classes arises from
• Passing messages between objects
• Methods in one object use methods or attributes
  from the other class
• Inheritance
• CBO is how many classes are coupled to a class,
  not by inheritance prefer low coupling

52
Depth of inheritance tree (DIT)

• DIT is how many classes from the current class to
  the root of the inheritance tree
• Scalene class has DIT3 (Triangle, Polygon, and
  Convex Set)
• Higher DIT lowers maintainability
• A related metric is the number of methods
  inherited (NMI)

53
Number of children (NOC)

• NOC is the number of classes immediately below
  the current class
• Triangle has NOC3 (Scalene, Isosceles, and
  Equilateral)
• Convex Set has NOC2

54
Object Oriented Metrics

• Skill requirements during iterative OO
  development (p. 353) show that experts are needed
  early on, while beginners should only participate
  in later iterations
