Title: Berkeley Lab Generic Presentation


1

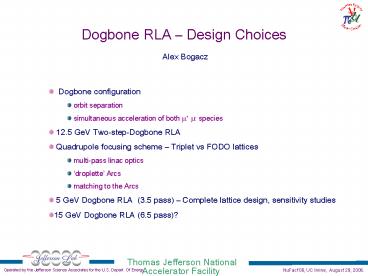

Dogbone RLA Design Choices
Alex Bogacz
  • Dogbone configuration
  • orbit separation
  • simultaneous acceleration of both m m- species
  • 12.5 GeV Two-step-Dogbone RLA
  • Quadrupole focusing scheme Triplet vs FODO
    lattices
  • multi-pass linac optics
  • droplette Arcs
  • matching to the Arcs
  • 5 GeV Dogbone RLA (3.5 pass) Complete lattice
    design, sensitivity studies
  • 15 GeV Dogbone RLA (6.5 pass)?

2
Simultaneous acceleration of both m m- species
E0
E0 (n½)DE
DE
orbit separation, energy difference between
consecutive passes 2DE
3
12.5 GeV Two-step-Dogbone RLA
the same energy ratio for both dogbones
5 GeV to 12.5 GeV
2 GeV to 5 GeV
4
12.5 GeV Two-step-Dogbone RLA
the same energy ratio for both dogbones
5 GeV to 12.5 GeV
2 GeV to 5 GeV
5 GeV
1 GeV/pass
5
Injection double-chicane
m
m-
6
Initial beam emittance/acceptance after cooling
at 273 MeV/c
7
Pre-accelerator - different style cryo-modules
8
Introduction of synchrotron motion in the initial
part of the linac
Dp/p?0.17or Df ?93 (200MHz)
9
Linear Pre-accelerator Longitudinal dynamics
10
Symmetric Dogbone RLA (3.5-pass) Scheme
  • Main Linac (2 GeV/pass)
  • 3 droplet Arcs based on periodic cells (900
    betatron phase advance per cell)

11
FODO vs Triplet focusing structure
  • The same length
  • The same phase advance per cell (Dfx 900 Dfy)

FODO
Triplet
  • Advantages
  • much weaker quads (3 times)
  • shorter quads (total)
  • easier chromaticity correction
  • Advantages
  • longer straight sections
  • smaller vertical beta-function
  • uniform variation of betas and dispersion

12
Triplet - flat focusing' linac profile
mirror symmetry cond. (boutn binn1,and aoutn
-ainn1, n - pass index)
half pass , 2-3 GeV
Initial phase adv/cell 90 deg constant quad
grarients for the entire linac
1-pass, 3-5 GeV
phase adv. drops much faster in the horizontal
plane
13
Triplet - flat focusing' linac profile
mirror symmetry cond. (boutn binn1,and aoutn
-ainn1, n - pass index)
2-pass, 5-7 GeV
phase adv. drops much faster in the horizontal
plane
3-pass, 7-9 GeV
no phase adv. in the horizontal plane
14
FODO - flat focusing' linac profile
mirror symmetry cond. (boutn binn1,and aoutn
-ainn1, n - pass index)
half pass , 2-3 GeV
initial phase adv/cell 90 deg fixed gradient in
all cells
1-pass, 3-5 GeV
phase adv. drifting uniformly in both planes
15
FODO - flat focusing' linac profile
mirror symmetry cond. (boutn binn1,and aoutn
-ainn1, n - pass index)
2-pass, 5-7 GeV
3-pass, 7-9 GeV
16
FODO - flat focusing' linac profile
mirror symmetry cond. (boutn binn1,and aoutn
-ainn1, n - pass index)
4-pass, 9-11 GeV
5-pass, 11-13 GeV
17
flat focusing' linac profile
mirror symmetry cond. (boutn binn1,and aoutn
-ainn1, n - pass index)
6-pass, 13-15 GeV
18
Phase slippage in the linac
DE0 2 GeV
E0 2 GeV
19
Arc 1 - Layout
Arc dipoles Lb150 gt 150
cm ang010.3283 gt 10.328 deg Nin16 gt
16 Nout2 gt
2 ang(90ang0)/(Nin-2Nout) gt 8.36
deg. Ang_outang02Noutang gt 43.77
deg. Ang_in2Ninang gt 267.54
deg. BPPIHrang/(180Lb) gt 6.537
kGauss Lring227.3 m
20
Droplet Arc Optics Building Blocks
  • 900 phase advance/cell inward and outward cells,
    missing dipole, empty cells

21
Arc 1 Mirror-symmetric Optics
(bout bin ,and aout -ain , matched to the
linacs)
Nout2, need minimum of 3 triplets to match 6
Twiss parameters
2 cells
2 cells
16 cells
dipoles (2 per cell) Lb150 gt 150
cm ang010.3283 deg ang(90ang0)/(Nin-2Nout
) gt 8.36 deg BPIHrang/(180Lb) gt
6.537 kGauss
quadrupoles (triplet) Lcm GkG/cm 68
-0.326 125 0.328 68 -0.326
22
Straight-Arc - Periodic transition
Triplet
FODO
23
15 GeV Dogbone RLA (6.5 pass)
energy ratio
24
15 GeV Dogbone RLA (6.5 pass)
energy ratio
25
Beam Separation - Switchyard
26
Summary
  • Dogbone RLA preferred configuration
  • better orbir separation for higher passes
  • offers symmetric solution for simultaneous
    acceleration of m and m-
  • FODO lattice more favorable (compared to the
    triplet) to accommodate large number of passes
  • uniform phase advance decrease in both planes
  • smaller variation of Twiss function easier
    match to the Arcs
  • Proposed 12.5 GeV two-step-dogbone RLA (30 mm rad
    acceptance)
  • 3.5 pass 5 GeV Dogbone (triplet lattices) error
    sensitivity studies
  • Magnet misalignment error analysis (DIMAD Monte
    Carlo on the above lattice) shows quite
    manageable level of orbit distortion for 1 mm
    level of magnet misalignment error.
  • Great focusing errors tolerance for the presented
    lattice - 1 of Arc-to-Arc betatron mismatch
    limit sets the quadrupole field spec at 0.2
  • Aggressive 15 GeV dogbone RLA
