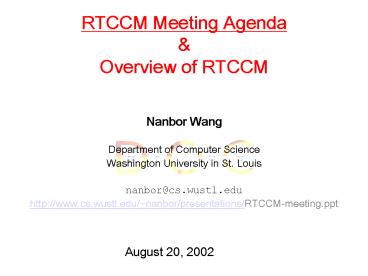

RTCCM Meeting Agenda

1
RTCCM Meeting AgendaOverview of RTCCM

• Nanbor Wang
• Department of Computer Science
• Washington University in St. Louis
• nanbor_at_cs.wustl.edu
• http//www.cs.wustl.edu/nanbor/presentations/RTCC
  M-meeting.ppt

2
Meeting Schedule
http//www.cs.wustl.edu/nanbor/projects/CIAO/proj
ect-kickoff.html
3
Extending CIAO Session Schedule

• Kokyu - Chris Gill
• SCTP - Gautam Thaker and Patrick Lardieri
• IntServ/DiffServe - Irfan Pyarali
• FT-CORBA - Chris Gill, Balachandran Natarajan,
  and Joe Cross
• RT-Notification Service - Irfan Pyarali
• MIC/MDA - Aniruddha Gokhale, Ted Bapty, Sandeep
  Neema, and Jeff Gray
• QuO/QoSket - Craig Rodrigues

4
Presentation Overview

• 10-minute CCM Overview
• Research problems and proposed approaches
• Project Timeline

5
Limitation with the CORBA 2.x Object Model

• Application developers and system integrators are
  forced to play multiple roles
• Application functional component developers
• tightly coupled application modules
• Computational resource provisioners
• ensuring the availability of common object
  services
• ad-hoc management
• System configurators
• boiler plate code
• manual application deployment
• Resulting in tight couplings
• Brittle non-standard implementation
• Hard to adapt and maintain
• Increase time-to-market

6
Promising Solution Component Models

• Separation of concerns
• Run-time environment configuration
• Connections between objects run-time
• Composition of objects
• Support run-time object composition
• Component a reusable entity
• Container a standardized environment for
  components to interact with run-time vice versa
• Component Server a generic server process (also
  called application server)
• Packaging and Assembling tools collection of
  tools to package and compose components into
  deployable assemblies
• Deployment mechanism for deploying component
  assemblies to component servers

• J2EE (EJB), COM CORBA Component Model (CCM)

7
The CORBA Component Model (CCM)

• Enhances CORBA Object Model
• Provides common run-time environment
• component servers
• containers
• Uses metadata to describe application
  composition, resource allocation, and
  infrastructure configurations
• component dependencies
• component connections
• component configuration
• component run-time services, e.g., transactional,
  persistence state

8
The CCM Big Picture
implementer
designers
Programming
Home Properties
Component Properties
IDL/CIDL File
User's Code
Language
Tools
IDL/CIDL
Default Properties
Compiler
CORBA
Stubs, Skeletons
Implementation
Component
Package
Assembly
Packaging
Component
CORBA
Tool
Tool
Assembly
Component
Package
Package
Component
packager
assembler
Descriptor
Assembly
Descriptor
softpkg
Deployment
User written file
CORBA
Descriptor
deployer
Tool
Component
Compiler
Package
Generated files
Source OMG CCM Tutorial by Phillipe Merle
9
Current CCM Fails to Address Advanced QoS
Requirements
QoS-enabled CCM ? CCM RT CORBAWhy doesn't
running a RT ORB beneath CCM make it a
QoS-enabled CCM implementation?

• Applications requires a wide variety of
  infrastructure support, e.g., QoS guarantees
• Plain CCM has no mechanisms to specify and
  enforce real-time QoS policies
• QoS policies need to be assured end-to-end for
  components connections
• Ensuring QoS policies in component
  implementations leads to
• QoS mechanisms that are hard to utilize and go
  beyond component implementations
• Component connections
• private connections
• bandwidth reservation
• Component collaborations
• Thread pools
• Thread borrowing
• Tight couplings among component implementations
• Difficulty in reusing existing components
  (without QoS knowledge)

10
QoS-Enabled Component Middleware

• Separate the concerns for QoS managements
• Separate the roles
• Application component developers
• QoS assurance mechanism developers
• QoS provisioning managers
• ORB configurators
• Compose QoS assurance mechanisms
• ORB OS
• Application-specific Adaptive
• Specify metadata for QoS requirements of
• components
• component connections

Extend component middleware to support more
advanced infrastructure and resource management
11
Specifying QoS Policies in CCM Applications

• Context
• Delay specifying QoS policies till system
  composition time
• Problems
• CCM specification doesnt consider QoS policies
• QoS policies usually managed via ad-hoc
  interfaces, e.g., RT policies
• QoS Policies can bind to either
• Components
• Connections
• Solution Approach
• Extend composition metadata to incorporate QoS
  policies
• Expected Results
• Implement a CCM deployment framework that
  realizes extended metadata.
• Categorize bindings of QoS policies

12
Supporting QoS Assurance Mechanisms

• Context
• Modern applications need to leverage various QoS
  assurance mechanisms
• Problems
• No standard way to support these QoS mechanisms
• knowledge of ORB internals required a priori
• Unforeseen QoS assurance mechanisms
• Solution Approach
• Configure the middleware dynamically
• Expected Result
• Extend and implement CCM deployment mechanisms to
  describe and deploy ORB modules

13
QoS Assurances Require End-to-end Enforcement

• Context Many QoS properties
• need to be enforced end-to-end
• require some degree of adaptation
• Problem
• Lack of standard interaction model with QoS
  mechanisms
• Solution Approach
• Apply meta-programming techniques
• Expected Result
• Extend and Implement CCM metadata to configure
  and compose interceptors/smart proxies

14
Configuring Component Adaptation

• Context
• Many QoS properties need to be enforced
  end-to-end
• We need to apply meta-programming techniques to
  insert adaptive behaviors
• Problem
• Components need to adapt as a whole, not as
  multiple individual interfaces
• Solution Approach
• Apply reflective middleware technologies to
  containers
• Expected Result
• Develop QoS-enabled containers in CCM

15
Configuring Client-side Adaptation

• Context
• We are applying meta-programming techniques to
  insert adaptive behaviors for QoS requirements
• Objects with same interface may require different
  adaptive behaviors
• Problem
• Coarse-grained existing meta-programming support
• Smart proxies all references
• Interceptors all invocations
• Solution Approach
• Control effective meta-mechanisms through CORBA
  policies
• Utilizing extension interface pattern
• Expected Result
• Develop mechanisms to associate interceptors and
  smart proxies with object references via CORBA
  policies

www.krones.com
16
Client-side Policy Aggregates

• Context
• Modern systems often require multiple QoS
  assurance mechanisms
• Objects often require multiple adaptive behaviors
• Problem
• Ad-hoc configuration interfaces
• Brittle client-side implementation
• Difficult to update matching client/server
  policies requiring end-to-end assurance
• Solution Approach
• Configure ORB dynamically
• Define policy aggregates dynamically using
  metadata (using Extension Interface pattern)
• Expected Results
• Develop a CCM assembly-like client side
  configuration mechanisms
• Define policy aggregates with XML-based
  descriptors
• Package required ORB mechanisms and adaptive
  strategies
• Enable Client to associate objects with named
  policy aggregates

17
Component-Integrated ACE ORB (CIAO)

• Extension to component assembly descriptors
• Component and connection QoS specifications
• ORB modules
• Adaptation modules
• QoS-enabled containers
• Policy-based adaptation insertion
• Client-side policy aggregates
• Integrating RT-CORBA ACE QoS API (AQoSA)
• Benchmark and document test applications using
  various combinations of QoS aggregates

18
Project Timeline
CIAO 0.1 alpha release - (TAO 1.3, Oct. 2002)

• Extension to CORBA Core
• Default implementation of
• CCMObject
• Navigations
• Receptacles
• Events
• CCMHome
• KeylessCCMHome
• Partial support for basic container/callback
  interfaces
• CCMContext, SessionContext
• EnterpriseComponent, SessionComponent
• HomeExecutorBase interface
• Support (hand crafted) monolithic executor
  implementation
• Extension to IDL compiler and Typecode factory.
• IDL compiler shall recognize all CCM keyword
  extensions but not necessarily generate code for
  these added keywords.
• Adaptive configuration of Notification
  Service/Event Channels
• Partial implementation of Deployment module

19
Project Timeline
CIAO 0.2 beta release - (TAO 1.3.x, Apr. 2003)

• Support for various RT and QoS Policies
• Support for policy-based adaptation mechanism
• HomeFinder interface
• HomeRegistration interface
• Configuration interfaces
• Configurator
• StandardConfigurator
• HomeConfiguration
• Other basic container programming interfaces
• EntityContext
• EntityComponent
• Extension to Interface Repository
• IDL should generate correct client/server side
  mapping for component extension
• CIDL implementation that generates skeleton
  implementation for
• Navigations, Receptacles, and Events interfaces
  of a components
• component executor and home_executor templates
  for monolithic component implementation
• Complete Deployment implementation, assuming the
  revised deployment specification will be available

20
Project Timeline
CIAO 1.0 release - (TAO 1.4, Oct. 2003)

• Transaction module?
• CCM2Context, Session2Context, Entity2Context and
• PSS functionality?
• Support for ExecutorLocator based component
  implementation
• ProxyHomeRegistration interface

21
Bryan Hall
Coke machine
Mens room
