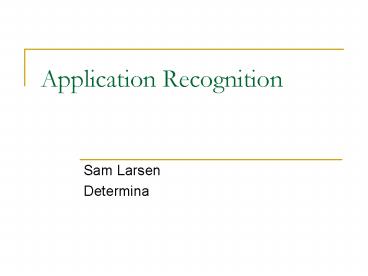

Application Recognition

1
Application Recognition

• Sam Larsen
• Determina

2
Process Control

• One method to improve computer security is
  through process control
• Whitelist user specifies what is allowed to run
• Blacklist user specifies what is not allowed to
  run
• Strong customer interest
• Disadvantages
• Difficult to administrate
• Hackers are learning to circumvent

3
The Pesky Gray

• Many applications wont be black or white
• Whitelist a lot of work for the administrator
• Currently, we identify applications via a
  checksum
• New software introduces a new checksum
• Every new upgrade/patch requires intervention
• Blacklist circumvention is getting common
• Bad guys now create custom binaries just for you!
• Small modifications defeat checksums
• Many malware payloads are encrypted

4
Application Recognition

• Can we automatically recognize a different
  version of a known application?
• Migrate to blacklist/whitelist with little or no
  user intervention
• Malware identification
• Hackers are lazy families of malware derived
  from the same code base

5
Approach

• Observe runtime program behavior
• Indirect branches pose no problem to analysis
• Focus on the code that actually executes
• Handle self-unpacking binaries
• Potentially, observe runtime data
• Apps derived from the same codebase should have
  similar runtime behavior
• Different apps should have different behavior
• First attempt characterize an application by the
  stream of system calls it generates

6
Rationale for System Calls

• System calls are the important events
• Nearly identical binaries should generate nearly
  identical traces
• Factor out small code changes
• Low runtime overhead
• Only take action at system calls

7
Application Communities

• Application identification is most useful in an
  application community
• Community data can be aggregated to form more
  complete application signatures
• Once an application is recognized, it can be
  approved or disapproved for everyone
• Prevent harm for most community members
• Eliminate most of the overhead of recognition

8
Initial Experimental Results

• Use DR to capture system call traces
• Build database of all sequences of N calls
• Example For N2 and sequence ABCD ?
• AB, BC, CD
• Measure of similarity between two apps

T unique sequences across both apps
d sequences in one and not the other
9
Firefox 1.0.1
10
Firefox 1.5.0.1
11
Apache 1.3.17
12
Apache 2.0.47
13
Gaim 1.0.0
14
Gaim 1.3.0
15
Traces of API calls

• Windows API is the primary system interface for
  windows apps
• More sensible to track sequences of API calls
• At system call, examine the call stack to find
  the outermost API call
• If not possible, default to system call

16
Firefox 1.0.1
17
Firefox 1.5.0.1
18
Apache 1.3.17
19
Apache 2.0.47
20
Gaim 1.0.0
21
Gaim 1.3.0
22
Comparison with Traditional HIPS

• Syscall-based intrusion detection/prevention
• Forrest Hofmeyr
• Record traces during training, then monitor and
  compare in deployment
• Problem with false positives
• Syscall-based application recognition
• Looking at general trends, thus some noise can be
  tolerated ? false positives not an issue
• More practical use of system call traces

23
Next Steps

• Gather data for more applications
• How can we match applications that make few
  system calls (e.g., calc)?
• Compare families of malware
• Build a sandbox?
• Malicious code may be recognized too late
