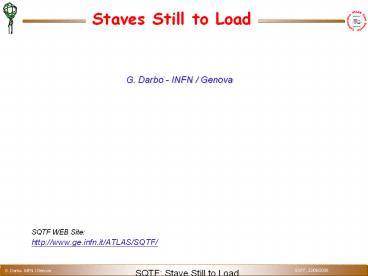

Staves Still to Load

1
Staves Still to Load

• G. Darbo - INFN / Genova
• SQTF WEB Site
• http//www.ge.infn.it/ATLAS/SQTF/

2
Loaded Staves

• The loading rate (excluding the ramping up where
  Wuppertal was not in and the last few staves
  where dates are not updated yet) is 0.4
  staves/day or 2.8 staves/week. (Goal was 4
  staves/week).

3
List Of Loaded Staves with New Pipe

• 53 Staves with new pipe already loaded
• GE 21 Staves loaded since 9/1/2006
• MA 22 Staves loaded since 13/1/2006
• WU 10 Staves loaded since 1/3/2006
• The goal is 86. Remain 33 staves to be loaded.
  Completion of the production requires 12 weeks if
  lack of bare staves are not blocking loading.

4
Modules Available for Loading

• Grand Total 26.5 2.2 3.6 6.5 38.7 Staves

5
Bare Stave Availability

• Already Available 9
• IVW Batch no.4 11
• Survey complete (22/6) ? Comelec ? CERN ? Genova
  for Joule test (29/9) ? Distribution to loading
  Sites (4/7)
• Next Pipes - Repaired Staves 16
• At CPPM from EB (22/6) for leak test, sand
  blasting and measuring ? Cleaning at CERN (3/7) ?
  Parylene at Comelec (5/7) ? To Genova/IVW (10/7)
• Repair rate 5/6 staves/week ? End of July.
• Next Pipes - IVW New Staves 11
• Production completed ??
• Total number of Staves 47
