High Voltage Shock

1

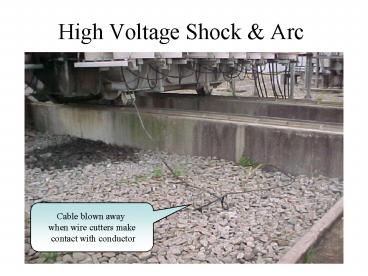

High Voltage Shock Arc
Cable blown away when wire cutters make contact
with conductor
2
High Voltage ShockEffects

• Insulated cutters, but inappropriate tool to use
  for high voltage.
• Only High Voltage Hotsticks, with Voltage-rated
  Gloves can be used for this work.
• Qualified Electrical Workers only.
• Result Electrocution.

3
High Voltage Shock Physical Effects of
Electrocution
4
High Voltage Shock Entry point of High Voltage
5
High Voltage Shock Effects Arcing to Grounded
Conduits (2)
6
High Voltage Shock Arcing Effects Body to
Grounded Conduits (2)
7
High Voltage Shock Arcing Effects Body to
Grounded Conduit
8
High Voltage Shock Blowout Effects

• Exit points (4)
• Thru the right thumb, left elbow, abdomen, and
  pelvic area where High Voltage Arc blows out
  completing the circuit to ground.

9
High Voltage Shock Entry and Exit Wounds
