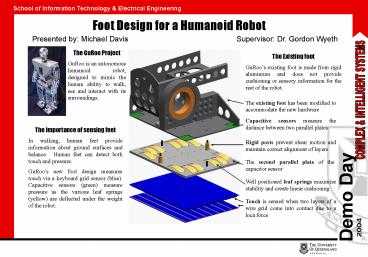

Foot Design for a Humanoid Robot

1
Foot Design for a Humanoid Robot
Presented by Michael Davis Supervisor
Dr. Gordon Wyeth
The GuRoo Project GuRoo is an autonomous humanoid
robot, designed to mimic the human ability to
walk, see and interact with its surroundings.
The Existing foot GuRoos existing foot is made
from rigid aluminium and does not provide
cushioning or sensory information for the rest of
the robot.
The existing foot has been modified to
accommodate the new hardware
Capacitive sensors measure the distance between
two parallel plates
The Importance of sensing feet In walking, human
feet provide information about ground surfaces
and balance. Human feet can detect both touch
and pressure. GuRoos new foot design measures
touch via a keyboard grid sensor (blue).
Capacitive sensors (green) measure pressure as
the various leaf springs (yellow) are deflected
under the weight of the robot.
Rigid posts prevent shear motion and maintain
correct alignment of layers
The second parallel plate of the capacitor sensor
Well positioned leaf springs maximise stability
and create linear cushioning
Touch is sensed when two layers of a wire grid
come into contact due to a loca force
2
The New foot GuRoo is a humanoid robot, designed
to mimic the human ability to walk, see and
interact with its surroundings. Replace with
callout boxes. Give short description
explanation.

• General Hints Tips
• Do Not change the colour/size/logos/positioning
  of the Slide Master this is a standard format
  across research groups. However, text across the
  watermark UQ logo is allowed as this text is.
• Do Not add other corporate logos. This is an
  infringement of intellectual property unless you
  have permission to use it appropriately.
• Do
• Use this space as creatively as you wish.
• Stay away from using large background
  coloursdoesn't look so good when printed
• Stick to the basic fonts.the suggestions on
  this page read clearly. Dont be tempted to
  reduce them if you need to, then you are
  possibly trying to fit too much on your poster.
• As a check, print scaled to fit on A4 and read
  at arms length.
• Save your poster
• Should already be in landscape orientation with
  the custom page size of Width 41 cm / Height 28.7
  cm (A3 with 5mm boarders all round)

• Headers Impact 20 or Arial 20
• Body Text Arial 16 or Times New Roman 18 or
• Maybe Times New Roman 16 (too small?)

Two layers of a wire grid come into contact when
a local force is applied, creating a matrix touch
sensor.
