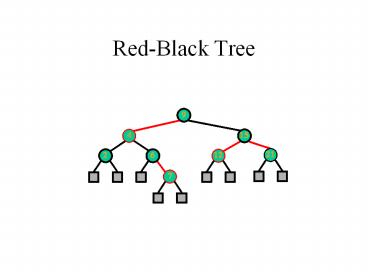

Red-Black Tree

1
Red-Black Tree
9
15
4
21
6
2
12
7
2
Red-Black Tree

• A Binary Search Tree.
• Every node in this tree is colored in either Red
  or Black.
• A historically popular alternative to the AVL
  tree.
• Operation on red-black trees take O(log n) time
  in the worst case.

3
Red-Black Tree

• Root Property The root is black
• External Property Every external node is black
• Internal Property The children of a red node are
  black
• Depth Property All the external nodes have the
  same black depth

4
6
5
3
OR
2
7
3
5
4
Height of a Red-Black Tree

• Theorem
• A red-black tree storing n items has height
  O(log n)

Proof Depth Property All external nodes have
same black depth d. If all nodes were black
then d ? log(n1) Internal node Property The
children of a red node are black. i.e. h ?
2d Thus log(n1) ? h ? 2 log(n1) so height
is O(log n)
By the above theorem, searching in a red-black
tree takes O(log n) time
5
Insertion

• we execute the insertion algorithm for binary
  search trees
• Let the newly inserted node is root then color it
  black else color it red
• We preserve the root, external, and depth
  properties
• If the parent of the node is black, we also
  preserve the internal property and we are done
• Else (parent is red ) we have a double red (i.e.,
  a violation of the internal property), which
  requires a reorganization of the tree
• Example Sequence 6, 3, 8, 4

6
6
v
8
8
3
3
z
4
6
Remedying a Double Red

• Consider a double red with child z and parent v,
  and let w be the sibling of v

• Case 1 w is black
• Restructure Same as done for AVL trees.

z
6
4
v
w
v
7
2
4
7
z
w
6
2
7
Restructuring

• A restructuring remedies a child-parent double
  red when the parent red node has a black sibling
• The internal property is restored and the other
  properties are preserved

z
4
6
v
v
w
7
2
7
4
z
w
2
6
8
Restructuring (cont.)

• There are four restructuring configurations
  depending on whether the double red nodes are
  left or right children

2
6
6
2
6
2
4
4
4
4
2
6
4
2
6
9
Remedying a Double Red

• Consider a double red with child z and parent v,
  and let w be the sibling of v

• Case 2 w is red
• The double red corresponds to an overflow
• Recolor and continue up

4
4
v
w
v
w
7
2
7
2
z
z
6
6
10
Recoloring

• A recoloring remedies a child-parent double red
  when the parent red node has a red sibling
• The parent v and its sibling w become black and
  the grandparent u becomes red, unless it is the
  root
• The double red violation may propagate to the
  grandparent u

4
4
v
v
w
w
7
7
2
2
z
z
6
6
11
Analysis of Insertion

• Recall that a red-black tree has O(log n) height
• Step 1 takes O(log n) time because we visit O(log
  n) nodes
• Step 2 takes O(1) time
• Step 3 takes O(log n) time because we perform
• O(log n) recolorings, each taking O(1) time, and
• at most one restructuring taking O(1) time
• Thus, an insertion in a red-black tree takes
  O(log n) time

Algorithm insertItem(k, e) 1. We search for key
k to locate the external insertion node z 2. We
add the new item (k, e) at node z and color z red
3. while doubleRed(z) if isBlack(sibling(parent
(z))) z ? restructure(z) return else
sibling(parent(z) is red z ? recolor(z)
12
Deletion

• To perform operation remove(k), we first execute
  the deletion algorithm for binary search trees
• Let v be the internal node removed, w the
  external node removed, and r the sibling of w
• If either v or r was red, we color r black and we
  are done
• else (v and r were both black) we color r double
  black, which is a violation of the internal
  property requiring a reorganization of the tree
• Example the deletion of 4 is simple

6
6
8
3
3
8
r
v
4
r
w
13
Deletion

• To perform operation remove(k), we first execute
  the deletion algorithm for binary search trees
• Let v be the internal node removed, w the
  external node removed, and r the sibling of w
• If either v or r was red, we color r black and we
  are done
• else (v and r were both black) we color r double
  black, which is a violation of the internal
  property requiring a reorganization of the tree
• Example where the deletion of 8 causes a double
  black

6
6
v
r
8
3
3
r
w
4
4
14
Remedying a Double Black

• The algorithm for remedying a double black node r
  with sibling w considers three cases
• Case 1 w is black and has a red child
• We perform a restructuring, equivalent to a
  transfer , and we are done
• Case 2 w is black and its children are both
  black
• We perform a recoloring, equivalent to a fusion,
  which may propagate up the double black violation
• Case 3 w is red
• We perform an adjustment, after which either Case
  1 or Case 2 applies
• Deletion in a red-black tree takes O(log n) time

15
Remedying a Double Black

• Case 1 w is black and has a red child
• We perform a restructuring
• We color r black
• We color a and c black.
• We color b with the same color as the parent of r.

c
6
4
w
r
a
6
3
3
r
b
4
16
Remedying a Double Black

• Case 2 w is black and its children are both
  black
• We perform a re-coloring
• We color r black
• We color w red
• If the parent is red we color it black else we
  color it double black.

9
9
15
15
w
r
12
12
17
Remedying a Double Black

• Case 2 w is black and its children are both
  black
• We perform a recoloring
• We color r black
• We color w red
• If the parent is red we color it black else we
  color it double black.

9
9
15
15
w
r
12
12
Propagates Double Black
18
Remedying a Double Black

• Case 3 w is red
• We perform a restructure
• Color w black
• Color parent of r red.
• Now sibling of r is black. So use Case 1 or Case
  2.

w
6
3
w
r
6
3
r
4
4
4
4
19
Summary of Red-Black Trees

• Insertion or deletion may cause local
  perturbation
• two consecutive red nodes or a double-black node.
• The perturbation is either
• resolved locally (restructuring)
• propagated to a higher level in the tree by
  re-coloring
• O(1) time for a restructuring or re-coloring
• At most one restructuring per insertion and at
  most two restructuring per deletion.
• O(log n) re-coloring
• Total time O(log n)

20
Skip Lists
21
Skip List

• Question
• Can we create a structure that adds the best
  properties of Array and Linked list Data
  Structure?
• Query O(log n) in sorted Arrays
• Insert/Removal O(1) in Linked List

22
What is a Skip List

• A skip list for a set S of distinct (key,
  element) items is a series of lists S0, S1 , ,
  Sh such that
• Each list Si contains the special keys ? and -?
• List S0 contains the keys of S in nondecreasing
  order
• Each list is a subsequence of the previous one,
  i.e., S0 ? S1 ? ? Sh
• List Sh contains only the two special keys
• We show how to use a skip list to implement the
  dictionary ADT

S3
S2
?
31
-?
S1
64
?
31
34
-?
23
S0
23
Search

• We search for a key x in a skip list as follows
• We start at the first position of the top list
• At the current position p, we compare x with y ?
  key(after(p))
• x y we return element(after(p))
• x gt y we scan forward
• x lt y we drop down
• If we try to drop down past the bottom list, we
  return NO_SUCH_KEY
• Example search for 78

S3
S2
?
31
-?
S1
64
?
31
34
-?
23
S0
56
64
78
?
31
34
44
-?
12
23
26
24
Insertion

• To insert an item (x, o) into a skip list, we use
  a randomized algorithm
• We repeatedly toss a coin until we get tails, and
  we denote with i the number of times the coin
  came up heads
• If i ? h, we add to the skip list new lists Sh1,
  , Si 1, each containing only the two special
  keys
• We search for x in the skip list and find the
  positions p0, p1 , , pi of the items with
  largest key less than x in each list S0, S1, ,
  Si
• For j ? 0, , i, we insert item (x, o) into list
  Sj after position pj
• Example insert key 15, with i 2

S3
p2
S2
S2
?
-?
p1
S1
S1
?
-?
23
p0
S0
S0
?
-?
10
36
23
25
Deletion

• To remove an item with key x from a skip list, we
  proceed as follows
• We search for x in the skip list and find the
  positions p0, p1 , , pi of the items with key
  x, where position pj is in list Sj
• We remove positions p0, p1 , , pi from the
  lists S0, S1, , Si
• We remove all but one list containing only the
  two special keys
• Example remove key 34

S3
-?
?
p2
S2
S2
-?
?
-?
?
34
p1
S1
S1
-?
?
23
-?
?
23
34
p0
S0
S0
-?
?
45
12
23
-?
?
45
12
23
34
26
Implementation

• We can implement a skip list with quad-nodes
• A quad-node stores
• item
• link to the node before
• link to the node after
• link to the node below
• link to the node above
• Also, we define special keys PLUS_INF and
  MINUS_INF, and we modify the key comparator to
  handle them

quad-node
x
27
Space Usage

• Consider a skip list with n items
• By Fact 1, we insert an item in list Si with
  probability 1/2i
• By Fact 2, the expected size of list Si is n/2i
• The expected number of nodes used by the skip
  list is

• The space used by a skip list depends on the
  random bits used by each invocation of the
  insertion algorithm
• We use the following two basic probabilistic
  facts
• Fact 1 The probability of getting i consecutive
  heads when flipping a coin is 1/2i
• Fact 2 If each of n items is present in a set
  with probability p, the expected size of the set
  is np

• Thus, the expected space usage of a skip list
  with n items is O(n)

28
Height

• The running time of the search an insertion
  algorithms is affected by the height h of the
  skip list
• We show that with high probability, a skip list
  with n items has height O(log n)
• We use the following additional probabilistic
  fact
• Fact 3 If each of n events has probability p,
  the probability that at least one event occurs is
  at most np

• Consider a skip list with n items
• By Fact 1, we insert an item in list Si with
  probability 1/2i
• By Fact 3, the probability that list Si has at
  least one item is at most n/2i
• By picking i 3log n, we have the probability
  that S3log n has at least one item is at most
  n/23log n n/n3 1/n2
• Thus a skip list with n items has height at most
  3log n with probability at least 1 - 1/n2

29
Search and Update Times

• The search time in a skip list is proportional to
• the number of drop-down steps, plus
• the number of scan-forward steps
• The drop-down steps are bounded by the height of
  the skip list and thus are O(log n) with high
  probability
• To analyze the scan-forward steps, we use yet
  another probabilistic fact
• Fact 4 The expected number of coin tosses
  required in order to get tails is 2

• When we scan forward in a list, the destination
  key does not belong to a higher list
• A scan-forward step is associated with a former
  coin toss that gave tails
• By Fact 4, in each list the expected number of
  scan-forward steps is 2
• Thus, the expected number of scan-forward steps
  is O(log n)
• We conclude that a search in a skip list takes
  O(log n) expected time
• The analysis of insertion and deletion gives
  similar results

30
Summary

• A skip list is a data structure for dictionaries
  that uses a randomized insertion algorithm
• In a skip list with n items
• The expected space used is O(n)
• The expected search, insertion and deletion time
  is O(log n)

• Using a more complex probabilistic analysis, one
  can show that these performance bounds also hold
  with high probability
• Skip lists are fast and simple to implement in
  practice
