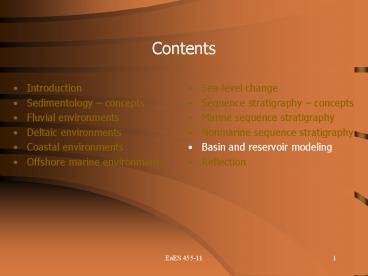

Contents

1
Contents

• Introduction
• Sedimentology concepts
• Fluvial environments
• Deltaic environments
• Coastal environments
• Offshore marine environments

• Sea-level change
• Sequence stratigraphy concepts
• Marine sequence stratigraphy
• Nonmarine sequence stratigraphy
• Basin and reservoir modeling
• Reflection

2
Basin and reservoir modeling

• What is a model?

3
Basin and reservoir modeling

• What is a model?
• Models are expressions of our ideas how things
  work
• Conceptual models (qualitative models)
• Physical models (experimental models)
• Flume-operated simulations of sedimentologic or
  stratigraphic phenomena at scales ranging from
  bedforms to basins
• Mathematical models (computer models)
• Deterministic models (physically-based or
  process-based) have one set of input parameters
  and therefore yield one unique outcome
• Stochastic models have variable input parameters,
  commonly derived from probability-density
  functions (pdfs), and therefore have multiple
  outcomes as a consequence model runs must be
  repeated many times (realizations) and
  subsequently averaged

4
(No Transcript)
5
(No Transcript)
6
(No Transcript)
7
(No Transcript)
8
Basin and reservoir modeling

• Forward models simulate sets of processes and
  responses in a system that has specified
  (assumed) initial boundary conditions (e.g., the
  evolution of a sedimentary basin given an initial
  configuration)
• Inverse models use observations as a starting
  point and aim to estimate initial boundary
  conditions and combinations of processes and
  responses that have operated to produce the
  observed conditions (i.e., flip side of forward
  models)
• What is the goal of modeling in sedimentary
  geology?
• Understanding processes and responses in
  sedimentary systems (experimental and
  process-based models)
• Prediction of sedimentary architecture and
  stratigraphy (primarily stochastic models)

9
Basin and reservoir modeling

• Architectural models typically simulate specific
  depositional environments (e.g., alluvial
  architecture) different approaches are possible,
  involving different kinds of equations
• Physical
• Empirical
• Probabilistic

10
(No Transcript)
11
(No Transcript)
12
(No Transcript)
13
(No Transcript)
14
Basin and reservoir modeling

• Stratigraphic models are widely used to simulate
  basin-scale stratal patterns (e.g., sequence
  stratigraphy)
• In geometric models the sediment surface is
  represented by one or more surfaces with
  predetermined geometry
• Many models are based on a diffusion equation
  that relates rates of sediment transport to
  topographic slopes

Slideshow
15
Animation 1
Animation 2
16
Basin and reservoir modeling

• A classical approach in sedimentologic/stratigraph
  ic modeling has been to start from first
  principles (i.e., basic, small-scale processes of
  sediment transport) and multiply this to the
  desired spatial and temporal scale (upscaling)
• The outcomes of this approach have been very
  disappointing (i.e., upscaling is a very
  complicated procedure)
• There is no law of nature that says that
  complexity complexity greater complexity!

17
Basin and reservoir modeling

• Reservoir characterization is the analysis of
  subsurface sediments or sedimentary rocks from
  the perspective of fluid flow through porous
  media, including issues related to resource
  recovery (e.g., groundwater, hydrocarbons)
• The net-to-gross ratio (proportion of permeable
  units) is one of the most basic parameters in
  reservoir studies
• The connectedness between permeable units is
  another important parameter

18
(No Transcript)
19
Basin and reservoir modeling

• Many reservoir models operate on the scale of
  sedimentary architecture they are mostly
  stochastic
• Object-based models simulate the distribution of
  objects, defined by specified geometries, in 3D
  space simulations are usually constrained by
  well data
• Geostatistical models predict sedimentary facies
  at unvisited sites, based on the quantified
  spatial facies variability derived from well data
  (e.g., sequential indicator simulation)
• Conditioning model output to observations is more
  easily done in stochastic models, but
  process-based models have the advantage that they
  tend to provide sedimentologically more realistic
  output

20
(No Transcript)
21
(No Transcript)
22
(No Transcript)
23
(No Transcript)
24
(No Transcript)
25
(No Transcript)
26
Basin and reservoir modeling

• Many reservoir models operate on the scale of
  sedimentary architecture they are mostly
  stochastic
• Object-based models simulate the distribution of
  objects, defined by specified geometries, in 3D
  space simulations are ususally constrained by
  well data
• Geostatistical models predict sedimentary facies
  at unvisited sites, based on the quantified
  spatial facies variability derived from well data
  (e.g., sequential indicator simulation)
• Conditioning model output to observations is more
  easily done in stochastic models, but
  process-based models have the advantage that they
  tend to provide sedimentologically more realistic
  output

27
(No Transcript)
28
(No Transcript)
29
(No Transcript)
30
(No Transcript)
31
(No Transcript)
32
Basin and reservoir modeling

• Many reservoir models operate on the scale of
  sedimentary architecture they are mostly
  stochastic
• Object-based models simulate the distribution of
  objects, defined by specified geometries, in 3D
  space simulations are usually constrained by
  well data
• Geostatistical models predict sedimentary facies
  at unvisited sites, based on the quantified
  spatial facies variability derived from well data
  (e.g., sequential indicator simulation)
• Conditioning model output to observations is more
  easily done in stochastic models, but
  process-based models have the advantage that they
  tend to provide sedimentologically more realistic
  output

33
Basin and reservoir modeling

• The challenge for experimental models is to mimic
  real-world conditions as well as possible
  (scaling) this becomes increasingly difficult
  with increasing spatial and temporal scales
  (compare bedforms vs. sedimentary basins)
• Grain size (e.g., how to simulate clays?)
• Grain properties (e.g., how to simulate cohesion
  of sediment grains?)
• Fluid mechanics (e.g., how to keep the Froude
  number reasonable?)
• Experimental models are increasingly used to
  simulate sedimentary architecture and basin-scale
  stratigraphy
• One important outcome of experimental modeling is
  the recognition of non-linear responses

34
(No Transcript)
35
(No Transcript)
36
Animation 1
Animation 2
Animation 3
37
Basin and reservoir modeling

• The challenge for experimental models is to mimic
  real-world conditions as well as possible
  (scaling) this becomes increasingly difficult
  with increasing spatial and temporal scales
  (compare bedforms vs. sedimentary basins)
• Grain size (e.g., how to simulate clays?)
• Grain properties (e.g., how to simulate cohesion
  of sediment grains?)
• Fluid mechanics (e.g., how to keep the Froude
  number reasonable?)
• Experimental models are increasingly used to
  simulate sedimentary architecture and basin-scale
  stratigraphy
• One important outcome of experimental modeling is
  the recognition of non-linear responses

Animation
