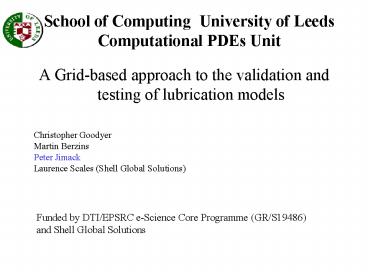

School of Computing University of Leeds Computational PDEs Unit

1
School of Computing University of Leeds
Computational PDEs Unit

• A Grid-based approach to the validation and
  testing of lubrication models

Christopher Goodyer Martin Berzins Peter
Jimack Laurence Scales (Shell Global Solutions)
Funded by DTI/EPSRC e-Science Core Programme
(GR/S19486) and Shell Global Solutions
2
School of Computing University of Leeds
Computational PDEs Unit

• A Grid-based approach to the validation and
  testing of lubrication models

Christopher Goodyer Martin Berzins Peter
Jimack Laurence Scales (Shell Global Solutions)
Funded by DTI/EPSRC e-Science Core Programme
(GR/S19486) and Shell Global Solutions
3
Presentation Overview

• Background
• The White Rose Grid
• Elastohydrodynamic lubrication (EHL)
• A Grid-enabled Problem Solving Environment (PSE)
• Simulation
• Grid Computing
• Visualisation and Computational Steering within a
  PSE
• Hierarchical Parallelism
• Implementation
• Parallel simulation example
• Conclusions

4
Background - The White Rose Grid

5
Background Elastohydrodynamic
Lubricaton (EHL)

• Applications
• High pressure contacts such as gears, valve
  trains, etc.
• Environmental Issues
• Energy efficiency ? friction
• Durability ? wear

6
Background - EHL (cont.)

• Demanding mathematics and computer algorithms
• Very High Loads Small Areas
• High Pressures and Temperatures
• Deformation Glass-like Lubricant

Lubricant ? Experiment ? Theory ?
? ? Prediction ?
Computational Model
7
Equations for the EHL Point Contact Problem

• System of equations in 2 space dimensions
• Reynolds Equation pressure distribution
• Film Thickness Equation deformation
• Force Balance Equation conservation law
• Lubricant model density, viscosity, temperature

8
Typical Point Contact Solutions
Film thickness
Pressure
Temperature
9
Grid-Enabled PSE - Overall Software Design
PSE (main)
PSE (collaborator)
Grid
Visualise
Steer
gViz
gViz
Simulation
10
Grid-Enabled PSE Design (cont.)
PSE (main)
PSE (collaborator)
Grid
Visualise
Steer
gViz
gViz
Simulation
11
Grid-Enabled PSE - Simulation

• Wish to find set of lubricant model parameters
  (e.g. viscosity, pressure, temperature
  coefficients) which best match observed data
• Typically at least 10 such parameters to optimise
• Observations for different loadings (3), ambient
  temperatures (2) and slideroll ratios (6)
• Nonlinear optimisation of

12
Grid-Enabled PSE Simulation (cont)

• Each friction evaluation is an expensive EHL
  calculation
• Currently use a NAG library simplex algorithm for
  the multidimensional optimisation
• Scope for parallelism and use of Grid
• Could compute all 36 frictions in parallel at
  each R evaluation
• More efficient to use continuation in the
  slideroll parameters with 6 parallel processes
• Each of these 6 processes may themselves be
  implemented in parallel and launched on different
  Grid resources (each using multiple processors).

13
Grid-Enabled PSE Design (cont.)
PSE (main)
PSE (collaborator)
Grid
Visualise
Steer
gViz
gViz
Simulation
14
Grid-Enabled PSE Grid Computing

• Based upon use of the Globus Toolkit
• Module provided to interrogate a GIIS server to
  analyse available resources and their current
  status
• Job may be launched on selected resource(s) using
  Globus
• When job is spawned a connection is made back to
  the PSE (or Grid service) indicating which node
  of the Grid resource the simulation will be
  communicating from
• Although Grid certification is required to launch
  the simulation, use of gViz libraries allow
  collaborators around the world to see results of,
  or even steer, the simulation as it progresses

15
Grid-Enabled PSE - Overall Software Design
PSE (main)
PSE (collaborator)
Grid
Visualise
Steer
gViz
gViz
Simulation
16
Grid-Enabled PSE Design (cont.)
PSE (main)
PSE (collaborator)
Grid
Visualise
Steer
gViz
gViz
Simulation
17
Grid-Enabled PSE Design (cont.)
PSE (main)
PSE (collaborator)
Grid
Visualise
Steer
gViz
gViz
Simulation
18
Grid-Enabled PSE The PSE

• The complete PSE package is called GOSPEL (Grid
  Optimisation Software for Problems of
  Elastohydrodynamic Lubrication)
• It is built using NAGs IRIS Explorer software
  which uses a dataflow model
• The following IRIS Explorer map shows the three
  main modules
• GlobusSearch
• SteerGOSPEL
• VisualiseGOSPEL

19
Example of a typical IRIS Explorer map for the
PSE
20
Grid-Enabled PSE Design (cont.)
PSE (main)
PSE (collaborator)
Grid
Visualise
Steer
gViz
gViz
Simulation
21
Hierarchical Parallelism

• Each friction calculation requires a costly EHL
  solve so this is implemented in parallel
• Parallel FAS multigrid
• Parallel multilevel multi-integration
• Each function evaluation requires 36 friction
  calculations so these are found in parallel
• Use of continuation means that six sets of six is
  far more efficient than 36 independent
  calculations.

22
Hierarchical Parallelism (cont.)
23
Hierarchical Parallelism (cont.)

• The following example shows typical speedups
  achieved
• The loss of efficiency is due to early completion
  of some of the continuation runs
• Different processor speeds
• Different computational costs when different
  loads are applied

Np 1 6 12 24 48 96
Secs. 512.0 93.3 50.0 29.3 17.6 15.1
24
Conclusions

• Have demonstrated
• Solution of complex and computationally expensive
  EHL problems within outer optimization wrapper
• Hierarchical parallelism using Grid resources and
  software
• Use of Globus toolkit with MPI, NAG and gViz
  libraries
• Have also
• Implemented within a PSE to allow interactive
  visualization and computational steering (but not
  discussed here)
• Still to do
• Better load balancing
• More versatile applications e.g. actually
  designing lubricants!
