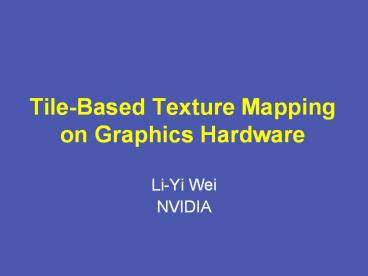

Tile-Based Texture Mapping on Graphics Hardware

1
Tile-Based Texture Mapping on Graphics Hardware

• Li-Yi Wei
• NVIDIA

2
Texture Mapping with Large Repetitive Pattern
Large terrain textures are very common Games,
simulation Issues Bandwidth for texture
access Memory/Cache for texture storage Need
texture compression
3
Method 1General Image Compression
Implemented in graphics hardware VQ Beers96,
S3TC/DXT S3 Corporation ? Good for general
images Suboptimal for repetitive patterns
pattern
4
Method 2Texture Tiling

• Only works for repetitive patterns
• ? Good compression ratio
• Requires changing texture coordinates
• No native texture filtering support

5
Our Goal Texture Tiling on GPU

• ? No need to change texture coordinates
• ? Native texture filtering
• ? Implementation in fragment program

6
Texture Tiling Simple Case
Input tile

• ? Infinite compression
• ? Good for GPU
• ? Fast decoding
• Repetition

Arbitrarily large output texture
7
Texture Tiling Wang Tiles
Input tiles
? replace repetition by non-periodic tiling
Arbitrarily large output texture
8
How Wang Tile Works
3
4
1
2
Input tiles
adjacent tiles share identical edge color
continuous pattern across identical edge color
9
Wang Tiles for Texture Mapping on GPU ?

• Original Cohen03
• Sequential tiling
• No texture filtering across tiles
• Not good for GPU

• Our approach
• ? Random-accessible tiling
• ? Native texture filtering across tiles
• ? Good for GPU
• Need more tiles

10
Overview of Our System
Tile hashing
Packed input tiles (correct filtering across
tiles)
Output virtual texture
11
Random Access by Tile Hashing
12
Random Access by Tile Hashing

• Tile index (Oh, Ov)
• Hash function H()
• Edge color ? (Oh, Ov)
• Cs H( H(Oh) Ov )
• Cn H( H(Oh) Ov 1)
• Cw H( Oh H(2Ov) )
• Ce H( Oh 1 H(2Ov) )
• ? Consistency
• e.g. Ce(1, 2) Cw(2, 2)
• ? Direct evaluation
• No sequential dependency
• ? Easy to compute

13
Tile Hashing Quality

• H() simply a permutation table
• Hashing quality depends on table size

Image size 32 x 32
8 entries
16 entries
32 entries
14
Random Access Needs All Possible Tile Edge Colors
Input tiles
with all edge colors
Output virtual texture
15
How to Filter Tiled Texture ?

• Shader filtering
• ? flexible
• slow
• gt 1 texture

No good packing (for general case)
16
Tile Packing for Texture Filtering

• tiles with all colors (for random access)
• ? each tile used once (no wasted memory)
• ? continuous boundary (native filtering)
• ? easy to compute

Packed input tiles
17
Tile Packing in 1D
0
0
0
0
1
2
2
2
1
1
e1
e2

• Index(e1, e2)
• 0, e1 e2 0
• e12 2e2 1, e1 gt e2 gt 0
• e22 2e1, e2 gt e1 0
• (e2 1)2 - 2, e1 e2 gt 0
• (e1 1)2 - 1, e1 gt e2 0

• ? each tile used once
• ? continuous boundary
• ? easy to compute

18
Tile Packing in 2D
19
Implementation and Performance

• Implementation
• Cg without hand optimization
• Performance
• (million tri-linear texels per second on Geforce
  FX 5600)
• 2.7 full fragment program implementation
• 20 pre-compute tile hashing in a texture

20
Results
Input tiles
Result with virtual texture size 8192x8192
21
Results
Correct tile edge
Incorrect low-res tile
Input tiles
Traditional texture map
Correct tile edge/corner
22
Limitations

• Incorrect lower-resolution MIPMAP levels
• Need tile set with all possible edge colors
• Not fast enough

23
Future Work

• Performance improvement
• Driver implementation
• Hash instruction in hardware
• 3D texture tile

24
Acknowledgements

• Wei-Chao Chen
• Read the 1st paper draft
• Says I should submit
• John Danskin
• Permission to submit
• Reviewers
• NVIDIANS

25
Questions?
26
(No Transcript)
27
(No Transcript)
28
Limitations

• Incorrect lower-resolution MIPMAP levels
• Need tile set with all possible edge colors
• Not fast enough

1
2
1
3
29
Filtering Result Tile Edge
Result without correct input tile packing
Input tiles
Result with correct input tile packing
30
Filtering Result Tile Corner
Result without corner handling
Input tiles
Result with corner handling
31
Ungrouped Border and Image
32
Grouped Border and Image
33
