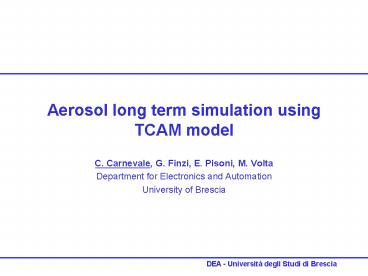

Aerosol long term simulation using TCAM model

1
Aerosol long term simulation using TCAM model

• C. Carnevale, G. Finzi, E. Pisoni, M. Volta
• Department for Electronics and Automation
• University of Brescia

2
Index

• The GAMES modelling system
• The Transport Chemical Aerosol Model
• The CityDelta III base case simulation
• Chemical composition of simulated PM10
• Conclusion

3
The Gas Aerosol Modelling Evaluation System
(GAMES)

Emission inventories
Land use Topography
MM5 output
Meterological Pre-processor
Emission Model
Temporal Profiles
3D wind and temperature fields Turbolence and
Boundary Layer parameters
Emission Fields
Initial and Boundary condition Pre-processors
Boundary and Initial condition
TCAM
VOC speciation Profiles
3D concentration fields
Continental model output
SystemEvaluation Tool
4
TCAM (Transport and Chemical Aerosol
Model)Transport and Depostion Module

• Eulerian 3D model
• Terrain-following co-ordinate system
• Horizontal Transport Module chapeau function
  forester filter
• Vertical Transport Module Crank-Nicholson hybrid
  solver based on the vertical diffusivity
  coefficient
• Deposition Module
• Dry deposition resistance-based approach
• Wet deposition scavenging approach for both gas
  and aerosol species

5
TCAM (Transport and Chemical Aerosol Model)Gas
chemical module

• Chemical Mechanism
• CBIV 90
• SAPRC 90/97
• COCOH 97
• Numerical Solver
• QSSA (explicit)
• IEH (hybrid)

6
TCAM (Transport and Chemical Aerosol
Model)Aerosol module

• Chemical Species 21
• 12 inorganics
• 9 organics
• Size Classes 10 (da 0.01 mm a 50 mm)
• Fixed moving approach
• Involved Phenomena
• Condensation/Evaporation
• Nucleation
• SO2 aqueus chemistry

7
CDIII base case simulation computational domain

• 300x300 km2
• Horizontal resolution 5x5 km2
• Vertical resolution 11 varying thickness levels
• 1st level 20m
• Simulation year 2004

8
CDIII base case simulation Gas emission fields
VOC
NH3
NOx
SOx
9
CDIII base case simulationPM emission fields
PM10
PM2.5
10
CDIII base case simulationMonitoring station
11
CDIII base case simulationYearly Performance
95th Perc
Mean
Correlation
NBIAS
12
CDIII base case simulationWinter Performances
95th Perc
Mean
Correlation
NBIAS
13
CDIII base case simulationSummer Performances
95th Perc
Mean
Correlation
NBIAS
14
CDIII base case simulationPM10 concentration
maps
Year
Winter
Summer
15
CDIII base case simulationPM10 yearly chemical
composition
16
CDIII base case simulationmainly inorganic
fraction maps
NO3-
NH4
17
Conclusion

• Quite good performance in terms of mean values
  both in winter and summer
• Correlation lower than 0.65 in all the station
• CAUSES?
• TCAM reproduces reasonably the chemical
  composition of PM10
• overestimation of ammonium fraction

18
Emission pre-processor (UNIBS)

• POllutant Emission Model for CDIII (POEM-CDIII)
  provides hourly base case and scenario emission
  fields for

CAMx
TCAM
CESI AMA
JRC data
Chemical/Sizecharacterization
Chemicalcharacterization
Time modulation
Gas CBIV99 PM 2 size bins, 8 chemical species
Gas COCOH97 PM 6 size bins, 8 chemical species
19
Boundary pre-processor (CESI)

• Boundy Module provides hourly base case and
  scenario boundary conditions

Chimere Gas 23 species PM 4 size bins 11
chemical species
TCAM Gas 62 species PM 10 size bins 21
chemical species
BOUNDY
PM experimental size profiles
20
CDIII base case simulationPM2.5/PM10
concentration map
PM2.5/PM10 Emisison
PM2.5/PM10 Concentration
