Welding Processes

1

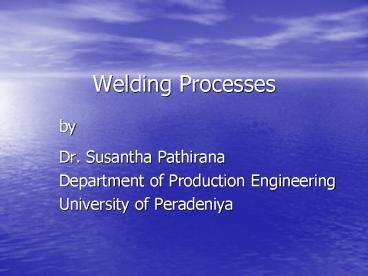

Welding Processes

• by
• Dr. Susantha Pathirana
• Department of Production Engineering
• University of Peradeniya

2
Welding processes

• Manual metal arc welding
• Spot welding
• Seam welding
• Electron beam welding
• Friction welding
• Submerged arc welding

3
Welding requirements

• Heat source
• Parent/work material
• Filler material with fluxes or chemicals

4
Spot Welding
FIG 03
FIG 04
5
Spot Welding
6
Seam Welding
FIG 09 (a)
7
Seam Welding
8
Arc welding (AC/DC)

• Heat distribution
• Temperature distribution
• Penetration
• Quality assurance
• Selection of welding parameters
• i. Voltage setting
• ii. Current setting
• iii. Welding speed
• iv. Electrode angles

9
Power/ Heat sources

• Alternating Current (AC)
• Direct Current (DC)

10
Manual Metal Arc Welding (MMAW)

• Machines / Plants
• Transformer
• Rectifier
• Generator (DC)
• - Open circuit voltage (OCV)
• - Short circuit current (SCC)

11
What we expect in a weld

• Strength
• Quality - Thickness
• - Width
• - Appearance
• - Efficiency

12
Strength
(Controlling factors)

• Adequate penetration
• Good joint design
• Proper welding position
• Selection of electrodes
• Composition of weld metal

13
Penetration

• (Controlling factors)
• - Welding power ( W V x I )
• V- Arc voltage
• I - Welding current
• - Welding speed
• - Electrode angle
• - Arc gap

14
Joint Design and Symbols Used
(BS 499 part 2 1980)

• Butt weld
• Fillet weld

15
Welding Position

• Flat
• Horizontal
• Vertical
• Overhead

16
Penetration
p
HAZ
Heat Affected Zone
P k Va Iß E?
Other configurations
17
Welding circuit
18
(No Transcript)
19
Machine Characteristics
20
A
Welding machine
V

• Measure
• Voltage
• Current
• Arc gap
• Speed

Computer
21
(No Transcript)
22
Computer Aided Welding

• On line monitoring for expected quality
• Useful in designing automatic (robotic) welding
• Online corrective action is possible
