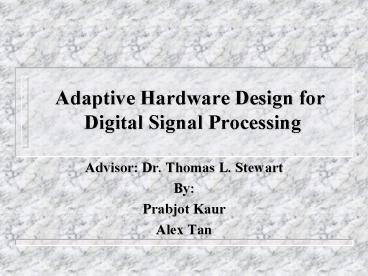

Title: Adaptive Hardware Design for Digital Signal Processing


1
Adaptive Hardware Design for Digital Signal
Processing
  • Advisor Dr. Thomas L. Stewart
  • By
  • Prabjot Kaur
  • Alex Tan

2
Presentation Outline
  • Project Goal
  • Applications
  • Project Description
  • Functional Description
  • Block Diagram
  • Datasheet
  • Preliminary Work
  • Design Approaches
  • Equipment List
  • Schedule

3
Project Goal
  • Design a Digital Signal Processing (DSP) hardware
    device
  • Implemented With Field Programmable Gate Arrays
    (FPGAs).
  • Investigate the capability of FPGAs to perform
    different functions through reconfigurations of
    the hardware design.
  • VHDL/Xilinx Software package.

4
Applications
  • Configurable Computing
  • Automatic Target Recognition (ATR)
  • UCLA Mojave Project
  • Single Chip Multitasking Solutions
  • UCLA Electrical Engineering Department
  • Cryptography
  • High Speed Image Processing

5
Project Description
  • Functional Description
  • DSP is the process of manipulating a digital
    input. This process utilizes multipliers and
    adders to achieve this.
  • Typical Equation
  • y(n) a1y(n-1)a2y(n-2)......amy(n-m)bx(n)

6
Project DescriptionFunctional Description contd.
  • x(n) 8 or 16 bit 2s complement word
  • Control Switch Precision of the DSP function to
    be implemented
  • y(n) The result of the DSP function.

7
Project DescriptionFunctional Description contd.
  • y(n) a1y(n-1)a2y(n-2)......amy(n-m)bx(n)
  • I/P signal will be multiplied with a constant and
    added to the previously amplified O/P thus
    producing the current output signal.
  • Designed to have the capability of adapting
    itself to different inputs and thus performing
    the function accordingly.
  • Depending on the I/P signal device will change
    its internal configuration to produce an
    appropriate output.
  • Determination of which DSP function to be
    implemented is decided by the control signal.

8
Project DescriptionBlock Diagram
9
Project DescriptionBlock Diagram contd.
10
Project DescriptionDatasheet
  • Xilinx XC4000E series.

11
Project DescriptionDatasheet
  • Xilinix XC4000E series.

12
Project DescriptionDatasheet
  • Xilinix XC4000E series.

13
Preliminary Work
  • Research
  • Xilinx Web-site
  • Learning Xilinx software (Schematic Capture)
  • VHDL Software Language

14
Preliminary Work
  • Research digital circuitry for
  • Multiplier
  • Adder
  • Memory Cells
  • Research hardware capabilities

15
Preliminary Work
  • Multiplier
  • Booths Algorithm
  • High Speed
  • 2s Complement numbers

16
Preliminary Work
  • Adder

A B Y
17
Preliminary Work
Memory Cell
18
Preliminary Work
  • Built and simulated an XOR Gate using Xilinx
    schematics
  • Researched hardware specifications for the
    XC4000E series

19
Design Approaches
  • Build and test an 8-bit and 16-bit multiplier and
    adder
  • Build and test memory cells and registers
  • Complete an 8-bit and a 16-bit DSP chip
  • Reconfigure the FPGA between real time 8-bit and
    16-bit DSP processing

20
Equipment List
  • Xilinxs XC4000E Chip with board
  • A/D and D/A converters
  • RAM

21
Schedule
  • Work Time Jan. 24 - April 15, 2000
  • Four main parts
  • 2 weeks Research and Learning
  • 3 weeks Design and Building (more emphasis on
    Design)
  • 3 weeks Design and Building (more emphasis on
    Building)
  • 3 weeks Testing and recording Data
  • Time after April 15 Testing and getting ready
    for demo.

22
Thank You!
  • Any Questions?
