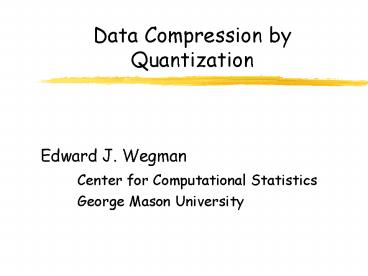

Data Compression by Quantization

1
Data Compression by Quantization

• Edward J. Wegman
• Center for Computational Statistics
• George Mason University

2
Outline

• Acknowledgements
• Complexity
• Sampling Versus Binning
• Some Quantization Theory
• Recommendations for Quantization

3
Acknowledgements

• This is joint work with Nkem-Amin (Martin)
  Khumbah
• This work was funded by the Army Research Office

4
Complexity

• Descriptor Data Set Size in Bytes Storage
  Mode
• Tiny 102 Piece of Paper
• Small 104 A Few Pieces of Paper
• Medium 106 A Floppy Disk
• Large 108 Hard Disk
• Huge 1010 Multiple Hard Disks
• e.g. RAID Storage
• Massive 1012 Robotic Magnetic Tape
• Storage Silos
• Super Massive 1015 Distributed Archives
• The Huber/Wegman Taxonomy of Data Set Sizes

5
Complexity

• O(r) Plot a scatterplot
• O(n) Calculate means, variances, kernel density

• estimates
• O(n log(n)) Calculate fast Fourier transforms
• O(nc) Calculate singular value decomposition of
  an rc matrix solve a multiple linear
  regression
• O(n2) Solve most clustering algorithms.
• O(an) Detect Multivariate Outliers
• Algorithmic Complexity

6
Complexity
7
Motivation

• Massive data sets can make many algorithms
  computationally infeasible, e.g. O(n2) and
  higher
• Must reduce effective number of cases
• Reduce computational complexity
• Reduce data transfer requirements
• Enhance visualization capabilities

8
Data Sampling

• Database Sampling
• Exhaustive search may not be practically feasible
  because of their size
• The KDD systems must be able to assist in the
  selection of appropriate parts if the databases
  to be examined
• For sampling to work, the data must satisfy
  certain conditions (not ordered, no systematic
  biases)
• Sampling can be very expensive operation
  especially when the sample is taken from data
  stored in a DBMS. Sampling 5 of the database can
  be more expensive that a sequential full scan of
  the data.

9
Data Compression

• Squishing, Squashing, Thinning, Binning
• Squishing cases reduced
• Sampling Thinning
• Quantization Binning
• Squashing dimensions (variables) reduced
• Depending on goal, one of sampling or
  quantization may be preferable

10
Data Quantization

• Thinning vs Binning
• Peoples first thoughts about Massive Data
  usually is statistical subsampling
• Quantization is engineerings success story
• Binning is statisticians quantization

11
Data Quantization

• Images are quantized in 8 to 24 bits, i.e. 256 to
  16 million levels.
• Signals (audio on CDs) are quantized in 16 bits,
  i.e. 65,536 levels
• Ask a statistician how many bins to use, likely
  response is a few hundred, ask a CS data miner,
  likely response is 3
• For a terabyte data set, 106 bins

12
Data Quantization

• Binning, but at microresolution
• Conventions
• d dimension
• k of bins
• n sample size
• Typically k ltlt n

13
Data Quantization

• Choose EWQ yj mean of observations in jth
  bin yj
• In other words, EWQ Q
• The quantizer is self-consistent

14
Data Quantization

• EW EQ
• If ? is a linear unbiased estimator, then so is
  E?Q
• If h is a convex function, then Eh(Q) ?
  Eh(W).
• In particular, EQ2 ? EW2 and var (Q) ? var
  (W).
• EQ(Q-W) 0
• cov (W-Q) cov (W) - cov (Q)
• EW-P2 ? EW-Q2 where P is any other quantizer.

15
Data Quantization
16
Distortion due to Quantization

• Distortion is the error due to quantization.
• In simple terms, EW-Q2.
• Distortion is minimized when the quantization
  regions, Sj, are most like a (hyper-) sphere.

17
Geometry-based Quantization

• Need space-filling tessellations
• Need congruent tiles
• Need as spherical as possible

18
Geometry-based Quantization

• In one dimension
• Only polytope is a straight line segment (also
  bounded by a one-dimensional sphere).
• In two dimensions
• Only polytopes are equilateral triangles, squares
  and hexagons

19
Geometry-based Quantization

• In 3 dimensions
• Tetrahedrons (3-simplex), cube, hexagonal prism,
  rhombic dodecahedron, truncated octahedron.
• In 4 dimensions
• 4 simplex, hypercube, 24 cell

Truncated octahedron tessellation
20
Geometry-based Quantization
Tetrahedron .1040042
Cube .0833333 Octahedron .0825482
Hexagonal Prism .0812227 Rhombic
Dodecahedron .0787451 Truncated
Octahedron .0785433 Dodecahedron .078128
5 Icosahedron .0778185
Sphere .0769670 Dimensionless Second Moment
for 3-D Polytopes
21
Geometry-based Quantization
Tetrahedron
Cube
Octahedron
Icosahedron
Dodecahedron
Truncated Octahedron
22
Geometry-based Quantization
Rhombic Dodecahedron
http//www.jcrystal.com/steffenweber/POLYHEDRA/p_0
7.html
23
Geometry-based Quantization
24 Cell with Cuboctahedron Envelope
Hexagonal Prism
24
Geometry-based Quantization

• Using 106 bins is computationally and visually
  feasible.
• Fast binning, for data in the range a,b, and
  for k bins
• j fixedk(xi-a)/(b-a)
• gives the index of the bin for xi in one
  dimension.
• Computational complexity is 4n1O(n).
• Memory requirements drop to 3k - location of bin
  items in bin representor of bin, I.e.
  storage complexity is 3k.

25
Geometry-based Quantization

• In two dimensions
• Each hexagon is indexed by 3 parameters.
• Computational complexity is 3 times 1-D
  complexity,
• I.e. 12n3O(n).
• Complexity for squares is 2 times 1-D complexity.
• Ratio is 3/2.
• Storage complexity is still 3k.

26
Geometry-based Quantization

• In 3 dimensions
• For truncated octahedron, there are 3 pairs of
  square sides and 4 pairs of hexagonal sides.
• Computational complexity is 28n7 O(n).
• Computational complexity for a cube is 12n3.
• Ratio is 7/3.
• Storage complexity is still 3k.

27
Quantization Strategies

• Optimally for purposes of minimizing distortion,
  use roundest polytope in d-dimensions.
• Complexity is always O(n).
• Storage complexity is 3k.
• tiles grows exponentially with dimension,
  so-called curse of dimensionality.
• Higher dimensional geometry is poorly known.
• Computational complexity grows faster than
  hypercube.

28
Quantization Strategies

• For purposes of simplicity, always use hypercube
  or d-dimensional simplices
• Computational complexity is always O(n).
• Methods for data adaptive tiling are available
• Storage complexity is 3k.
• tiles grows exponentially with dimension.
• Both polytopes depart spherical shape rapidly as
  d increases.
• Hypercube approach is known as datacube in
  computer science literature and is closely
  related to multivariate histograms in statistical
  literature.

29
Quantization Strategies

• Conclusions on Geometric Quantization
• Geometric approach good to 4 or 5 dimensions.
• Adaptive tilings may improve rate at which
  tiles grows, but probably destroy spherical
  structure.
• Good for large n, but weaker for large d.

30
Quantization Strategies

• Alternate Strategy
• Form bins via clustering
• Known in the electrical engineering literature as
  vector quantization.
• Distance based clustering is O(n2) which implies
  poor performance for large n.
• Not terribly dependent on dimension, d.
• Clusters may be very out of round, not even
  convex.
• Conclusion
• Cluster approach may work for large d, but fails
  for large n.
• Not particularly applicable to massive data
  mining.

31
Quantization Strategies

• Third strategy
• Density-based clustering
• Density estimation with kernel estimators is
  O(n).
• Uses modes m? to form clusters
• Put xi in cluster ? if it is closest to mode m?.
• This procedure is distance based, but with
  complexity O(kn) not O(n2).
• Normal mixture densities may be an alternative
  approach.
• Roundness may be a problem.
• But quantization based on density-based
  clustering offers promise for both large d and
  large n.

32
Data Quantization

• Binning does not lose fine structure in tails as
  sampling might.
• Roundoff analysis applies.
• With scale of binning, discretization not likely
  to be much less accurate than accuracy of
  recorded data.
• Discretization - finite number of bins implies
  discrete variables more compatible with
  categorical data.

33
Data Quantization

• Analysis on a finite subset of the integers has
  theoretical advantages
• Analysis is less delicate
• different forms of convergence are equivalent
• Analysis is often more natural since data is
  already quantized or categorical
• Graphical analysis of numerical data is not much
  changed since 106 pixels is at limit of HVS
