Title: Pixel 2000 - notes

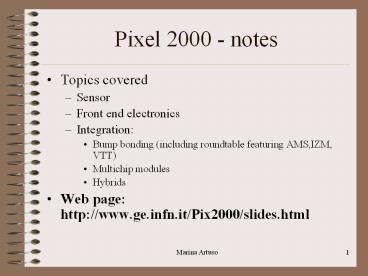

1
Pixel 2000 - notes
  • Topics covered
  • Sensor
  • Front end electronics
  • Integration
  • Bump bonding (including roundtable featuring
    AMS,IZM, VTT)
  • Multichip modules
  • Hybrids
  • Web page http//www.ge.infn.it/Pix2000/slides.htm
    l

2
Sensor
  • Interpixel insulation
  • ATLAS moderated p-spray
  • CMS p-stop double open ring
  • 250 mm sensors
  • At Elba meeting CSEM, SINTEF not too
    enthusiastic, CANBERRA ok 200 mm
  • CiS produced 1st moderated p-spray in 200 mm
  • IRST (Trento, Italy) has tried to produce
    p-spray and moderated p-spray

3
Sensor - continued
  • Discussion with SINTEF
  • HERA-B sensors moderated p-spray (3 different B
    doses for implantation )
  • Before irradiation breakdown at about 200 V
    (guard ring) worsened upon irradiation. Theory
    p guard ring on the ohmic side create problem
    (punch through when depletion region reaches
    guard ring)
  • P-spray versus p-stop, latter easier, very
    important for p-spray to achieve quite smooth
    implantation densities need to negotiate with
    MPI (design patented ?).

4
ROSE collaboration results
  • Several talks on oxygenated wafers both at ELBA
    (2) and at PIXEL2000 (1). Oxygenated wafers very
    popular. SINTEF in the ROSE collaboration ok,
    CSEM had problems with the first iteration of
    oxygenated wafers for Horisberger, they will try
    again.

5
Bump bonding
  • Industry representatives
  • Annamaria Fiorello AMS, Italy (In)
  • Juergen Wolf IZM, Germany (Solder)
  • Ikka Suni VTT, Finland (Solder, including low
    melting eutectic used for an X ray pixel device
    with bump size 15 mm on 30 mm pitch
  • Roland Horisberger reported on PSI experience
  • Both In and Solder seem adequate technologies

6
Hybridization
  • ATLAS specifications for flex hybrid module
  • - 2 metal layers
  • kapton substrate, metal traces on both faces
    (25 micron thick)
  • Copper traces 7 mm thick, 75 mm minimal
    distance,
  • critical issues
  • - wire bonds
  • - stress induced on the bumps (different CTE) and
    wirebonds

7
Hybridization (II)
  • First results presented on thin flex-hybrid
    electronics thinned down to 150mm
  • 3 modules tested at Genova (2 bonded by AMS)
  • Module 2 is the best with very few dead channels
    and threshold 3900?260 e- and mean noise about
    210 e- (however with rather long tail) (see
    Paulina Netchaevas talk).

8
(No Transcript)
9
(No Transcript)
