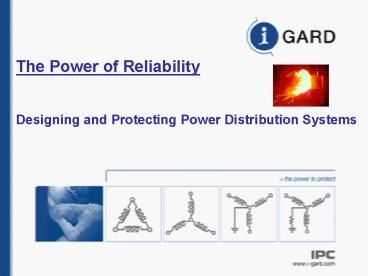

1The Power of Reliability
Designing and Protecting Power Distribution
Systems
2Design Objective
- What are the Main objectives in designing Power
Distribution Systems
Reliability and Cost Effectiveness
3Design Objective
- Top 2 Most Common Reliability Criteria
- Power Continuity
- Minimizing Downtime and Outages
- Safety
- Personnel
- Equipment
ROI
Reliability
4Remember
85 of all Electrical issues begin
As
Phase to Ground Faults
5Arc Flash
6What is Arc Flash?
NFPA 70E says an arc flash hazard is A dangerous
condition associated with the release of energy
caused by an electric arc
A hazard beyond shock and electrocution.
7Arc Flash Hazard
- Electrical Arcing is caused by
- Human Error
- Loose Connections
- Insulation Failure
- Poorly Maintained Equipment
- Voltage Spikes
- Delayed Short Circuit Interruption
- Animals
8Reliability Design Objective
- Power Continuity and Safety
Solutions to Mitigate the Impact of an
Arc Flash Hazard
9Arc Flash Protection and Mitigation by Design
Objective
Reduce the Amount of Incident Energy
10Incident Energy
The amount of energy impressed on a surface, a
certain distance from the source, generated
during an arc event. Incident energy is
measured in calories/cm2 or Joules/cm2.
(Ref NFPA 70E 2003 ROC, IEEE 1584)
11Arc Flash Protection and Mitigation for
Phase to Ground Arc Flash Hazards
Phase to Phase Arc Flash Hazards
12Arc Flash Protection and Mitigation by Design
- High Resistance Grounding
- Phase to ground faults are most likely and HRG
Systems limits the fault current so that no arc
flash hazard exists - NFPA70E - HRG is a technique available to reduce
the Arc Flash Hazard of the System - Arc Flash Mitigation
- For phase to phase faults where arcing is
initiated fast detection and tripping will reduce
the arc energy and thus reduce the hazard risk
category
13Reduce the Time of
Detection and Isolation
One of the Keys to Mitigation
14I-GARD Arc Flash
Mitigation/Detection
Relay
FALCON
15Falcon AFMD Relay
- I-GARD Falcon Arc Flash Relay Detects, Initiates
and Isolates providing Mitigation in 1
millisecond - Reduction of Arc Flash energy by fast detection
and tripping of Main Breaker - Minimizing total clearing time
- Reliability
- Ensures fastest possible reaction time with out
nuisance tripping - Use shunt trip of circuit breaker to isolate
- Combines Optical light sensing and over-current
protection to achieve this
16Falcon Master Main Unit
17Falcon AFMD Relay
- Main Master Unit
- Either 20 light only sensor inputs or 16 light
sensor inputs plus combination of Slave Units - 20 Light Sensor Inputs 1 16 plus L1 L4 or
- 16 Light Sensor Inputs 1 16
- Light Sensitivity Threshold Dial is located on
front of the Master Unit - L1 L4 Interconnect Slave Units
- Total of 4 Communication Channels to interconnect
either Arc Light or Current CR Slave Units - D1 D4
- RJ45 Communication cable used to interconnect
either Arc or Current CR Slave Units to Main
Master - Transmits alarms, self diagnostics, communication
and provides power
18Falcon AFMD Relay
- Main Master Unit
- Photoelectric cable used to transmit light and or
over current detection from Slave Units to Main
Master Unit lt 100m - L1 L4
- Input Voltage
- 85 264V AC
- 80 350VDC
- Output Voltage 12VDC
- 4- Isolated Solid State outputs, 1msec, trip
sequence - 6- isolated relay out put contacts, 8 10msec
- Continuous Self test diagnostics
- Alarm Messages displayed on the Front of Main
Unit
19Falcon AFMD Relay
- Configurable tripping sequence including delay
functions for selectivity and back up protection
Flexibility - Arc Light Slave Unit
- Total of 6 Modules per Communication Channel can
be interconnected via RJ45 and photoelectric
Cable lt100m - 10 Light Sensor Inputs per Slave Unit 0 9
- Optical fibre cable connects light sensor
directly to Arc Slave Unit - Light Sensitivity Threshold Dial located on front
of the Arc Slave Unit
20Falcon AFMD Components
- Light sensor installed directly in the line-up
- Expandable to 256 optical sensor inputs
- Over Current Slave CR Unit
- 1A, 2A or 5A, sec CT
- Sensitivity Threshold Dial located on front of
the CR Slave Unit - RJ45 and photoelectric cable used to interconnect
Current CR Slave Unit to Main Master lt100m - Each Arc or CR Slave Unit will have a designated
address that enables the Main Master Unit to
identify actual location within the system
21Falcon AFMD Components
- Application suitable for LV Switchboards, LV
switchgear, Metal-clad and Metal enclosed
Switchgear
22Falcon Arc - AFMD Unit
- 10 light receivers/unit
- Threshold level of light receiver can set by
potentiometer 30 50k lx - Tripping can be tested from TEST-button
- Indication LED flashes green when functioning
is normal - LED is turned red when light is detected
- Flashing red indicates no longer light detection
23Falcon Current AFMD Unit
- Can be used for single or 3 phase applications
- Current measurement can be from 1A, 2A or 5A
current transformers - Threshold Current level can set from 50 500 of
nominal current - Tripping can be tested from TEST-button
- Indication led flashes green when functioning
is normal - led is turned red when over current is detected
- flashing red indicates no longer over current
Burden lt .223VA
24Master Unit L1 L2 L3 L4 D1 D2 D3 D4
CR Slave Unit
Arc Slave Unit
CR Slave Unit
Arc Slave Unit
25Light Sensor
26Light Sensor
27Falcon Main Unit
28Slave Arc Light Sensor Module
29Current CR Module
30FALCON AFMD Relay
- Reduce the time Reduces the damage
- Reduces Hazard
cal/cm2 - Reduces Hazard
Risk -
-
31Summary
- NFPA70E addresses worker safety and work
practices - OSHA is citing NFPA70E
- NFPA70E will be referenced in work injury
litigation - Requirements for compliance
- Perform Arc Flash Hazard Analysis
- Label electrical equipment designating the
required PPE - Train workers and update work practice procedures
- Deploy products, solutions, and methods to limit
arc flash hazards whenever possible HRG - Reduce PPE requirements by ARC Flash Protection
- Falcon Arc Flash Detection/Mitigation Relay
32Thank You
