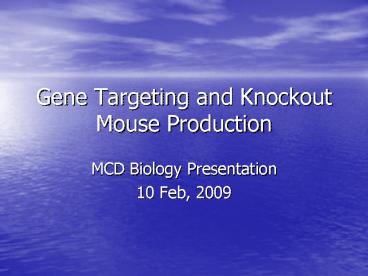

Gene Targeting and Knockout Mouse Production

1
Gene Targeting and Knockout Mouse Production

• MCD Biology Presentation
• 10 Feb, 2009

2
(No Transcript)
3
Gene Targeting and Transgenic Technologies
4
Find the right poison, make the right mutant
5
Three flavors

• Gain of function transgenics, gene repair.
• Loss of function (knockout, knockdown, and
  conditional.)
• Neutral i.e. knockin (reporter assay), tissue
  specific Cre recombinase expression.
• Expression of a reporter linked to endogenous
  gene function.

6
Two strategies

• Manipulate cells in vitro and transfer them into
  an early embryo.
• Produces a chimera (part to whole)
• Introduce DNA directly into a fertilized oocyte
  (in vivo.)
• Theoretically produces a hemizygous mouse with a
  copy of the gene in EVERY cell.
• Usually over-expressed, can be tissue specific.

7
Vectors, Stem Cells and Gene Targeting

• Gene targeting vectors
• Vectors are a mechanism for inserting DNA into
  chromatin.
• Two basic designs
• Replacement vectors interrupts or deletes and
  replaces coding region of a gene (most common.)
• Insertion vectors

8
Replacement Vectors

• Contains positive selection marker, homologous
  sequence (targeting portion), linearization site
  and plasmid backbone. May also contain negative
  selection marker.
• Positive selection marker is used to identify
  cells that have undergone a successful
  transfection.
• Homologous sequence is isogenic to wild type gene
  locus.
• Linearization site is necessary for
  recombination. Can be manipulated to reduce
  reversible integration.
• Negative selection marker is used to select for
  clones that only have targeted insertions.

9
Replacement Vectors or Generation of Knockouts
(null allele.)

• Oversized insertion at 5 locus disrupts gene.
• Must be familiar with RNA splicing, insertion may
  be spliced out of final transcript.
• Introduction of a stop codon early in coding
  sequence.
• May produce a truncated transcript
• Deletion or insertion of base pairs to create
  frameshift mutation.
• All methods may create secondary phenotypes by
  producing truncated proteins or perturbing
  activation of downstream alleles.
• WT compensation for gene ablation.

10
Replacement Vector Interruption of targeted
allele (knockout.)
Plasmid Backbone
Homologous Sequence
Positive Selection Marker
Targeting Vector
Exon
Negative Selection Marker
Wild type allele
Result Integration
11
Positive Selection Elements

• Positive integration confers resistance to drug
  treatment. Kills or delays proliferation of
  cells that do not contain transcript.
• Typically dominant selectable markers are used
  because they are rare in ES cells.
• G418 (neo), Puromycin, Hygromycin B and
  Mycophenolic acid.

12
Negative Selection Markers

• Placed outside sequence of homology to detect
  integration of plasmid backbone.
• Kills cells that have random integrations of
  entire vector sequence.
• 6TG (Glancovir), FIAU
• After positively selected cells are replated and
  amplified, TX with negative selection drug kills
  cells with random integrations.

13
Site Specific Recombination

• Creates specific recombination sites that are
  activated by a recombinase. Faithful excision
  without gain or loss of single base pair.
• 34 bp. recognition site, orientation specific.
• Two most common types are Cre/loxP (prokaryotic
  origin) and Flp/FRT (eukaryotic origin.)
• Two step process
• Standard replacement vector with addition of loxP
  or FRT sites surrounding sequence that you wish
  to remove/ replace.
• Transfection with plasmid containing
  recombination enzyme (and conditional promoter/
  enhancer sequence if desired) or breeding against
  tissue specific Cre/Flp mouse.
• Composed of two elements recombinase enzyme and
  DNA sequence recognized by the recombinase enzyme.

14
Some Applications for recombinase mediated
mutations

• Deletions
• Removal of selection marker genes
• Swapping sequences
• Conditional gene (in)activation
• Inversions
• Conditional gene expression
• Human (inversion) disease models
• Translocations
• Human (translocation) disease models

15
Plasmid Backbone
Homologous Sequence
Positive Selection Marker
Targeting Vector
Negative Selection Marker
Wild type allele
Result Integration
Positive Selection Marker
Cre/Flp
Positive Selection Marker

Result Deletion
loxP or FRT site
16
Part II. Embryo Manipulation
17
Now what?

• ES cells with desired mutation must be introduced
  into the germline in vivo.
• Two basic methods shake and bake (aggregation)
  and microinjection (MI).
• Aggregation inexpensive, excellent for embryonic
  lethal mutations.
• Microinjection expensive, requires microsurgical
  skills.
• At UCSC we utilize both methods for different
  reasons.

18
Aggregation vs. Microinjection

• Aggregation combines a compact morula with ES
  cells in an enclosed environment.
• ES cells fuse with host embryo and migrate to
  various tissues.
• Microinjection involves direct, surgical transfer
  of ES cells into the interior of a blastocyst.
• ES cells fuse directly with cells from the inner
  cell mass of the embryo with very high
  efficiency.
• ES cells migrate to gonads, offspring are 100
  mutant.

19
Basic Steps

• Create ES line and select for targeted clones.
  Amplify. (Start months in advance.)
• Induce ovulation in mice, harvest embryos at E3.5
  (blastocysts.)
• Generate surrogate mothers (pseudo pregnant)
  mate females against vasectomized males.
• Delay by one day to compensate for culture
  conditions and damage to embryos during
  microinjection.

20
(No Transcript)
21
Gene Targeting, /- selection and amplification
of targeted clones.
In Vitro Studies
In Vivo (phenotypic Studies
22
(No Transcript)
23
Basic Steps

• Prepare ES cells by treating with trypsin to
  create single cell suspension and inject cells
  into host embryo.
• Transfer into pseudo pregnant mice.
• Score and mate high percentage chimeras to
  generate F1 (heterozygous) progeny.
• Intercross F1s to produce homozygous mutants.
• Study phenotype.

24
(No Transcript)
25
What this really looks like
26
ES Cell Transfer by Microinjection
(Hogan, et. Al.)
Inner Cell Mass
Trophectoderm
ES Cells
27
Normal C57BL/6 Blastocyst (black)
ICM
agouti black
ES cells 129/SvJ (agouti)
28
(No Transcript)
29
(No Transcript)
30
(No Transcript)
31
(No Transcript)
32
(No Transcript)
33
(No Transcript)
34
(No Transcript)
35
Is this a useful chimera?
YES!
36
(No Transcript)
37
(No Transcript)
38
(No Transcript)
39
Acknowledgements

• A. L. Joyner (ed.) (2000) Gene Targeting, A
  Practical Approach 2nd ed., Oxford University
  Press.
• B. Hogan, et. Al. (1994) Manipulating the Mouse
  Embryo 2nd ed., Cold Spring Harbor Laboratory
  Press.
