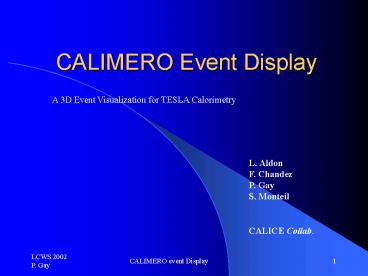

CALIMERO Event Display

A 3D Event Visualization for TESLA Calorimetry
L. Aldon F. Chandez P. Gay S. Monteil
CALICE Collab.
2
Out line

• Motivations
• Structure
• Main Features
• Conclusions

CALorimeter IMagE for RecO
3
Motivation and framework
High granularity Calorimeters Visualisation event
(Si-W Ecal and Digital Hcal)

• Draw pretty views but mainly provide a tool for
  event analysis (study shape showers, clustering,
  track separation, ) and guideline for
  reconstruction

• Application
• user-friendly,
• versatile
• And accept future evolution (esp. wrt Geometry)

4
Structure

• With respect to the previous version
• Whole architecture revisited
• New features (Navigation, files access, sorting,
  etc)

• Input files ASCII files
• .HEPEvt (Generator level)
• .HITS from MOKKA
• Cf P. M. de Freitas Talk
• Tables for ECAL/HCAL Geometry managed w/ MySQL
  database

• Graphics are handled with OpenGL GLUT, creation
  of graphics interface with Fast Light Tool Kit
  (FLTK), MySQL database, C

5
Control and management
Main Window, navigation w/ Mouse or keyboard
Control Window
6
Selections Standard
Generator Level after hadronisation anyway
Select an event
Select particles hits
scale
7
Selections basic objets
Select volumes
Select a given track
8
Points of Views
Besides Classic XY, XZ YZ views, various
center of rotation are allowed.

• wrt to a module face center of rotation is
  center of entry plate module
• wrt to a track center of rotation is origin of
  the track
• wrt to a hit center of rotation is the hit
  position it self
• 3 angles may be chosen to define the direction of
  the visualization

9
Picking
Direct access to the hit information from the
screen

Standard Fields
Extra Fields (added during creation of HITS file
by user)
10
Selections more complex operation
Write an elaborate selection condition in SQL
language combining information including extra
fields
Example Piece 5 and Stave 7 and Emax between
2000 and 3000 and Icode ltgt 321  Select all hits
in stave 7 of HCAL barrel w/ Energy ? 2, 3 GeV
which arent K
11
Save/Load Context
Save Context Collect all informations which
defined the present situation and load them in a
dedicated file .context
Load Context recover directly the
environnement defined by the .context file
Fast recover of the situation May be
used/imposed to others events
Context file is ASCII w/ simple grammar Easily
modificated
12
Conclusions

• 3D navigation
• Analysis tool w/ evoluate sorting based on simple
  grammar and environnement memory
• Open to next evolution of MOKKA simulation
• Available under Windows and LinuX plate-forms
• Future
• Improvements !
• Interfaces with reconstruction programs
• Relationships w/ general simulation tool and
  other detector visualisator (tracker system esp.)
