Precise Polymer Processing

1

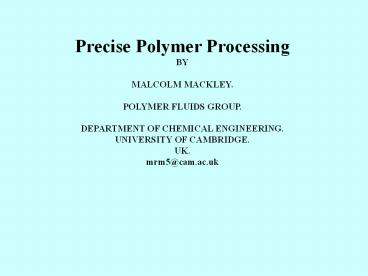

Precise Polymer Processing BY MALCOLM
MACKLEY. POLYMER FLUIDS GROUP. DEPARTMENT OF
CHEMICAL ENGINEERING. UNIVERSITY OF
CAMBRIDGE. UK. mrm5_at_cam.ac.uk
2
Background

• MPR1, commissioned in 1995
• Microscale Polymer Processing initiative, 2000
  onwards
• Cross slot development
• Ability to rank numerical simulation against
  experiment for small quantities of polymer.

3
The Multipass Rheometer (MPR)
4
MPR4
5
Key issues for Processing
in general Temperature Pressure
Flow Time
Key features of MPR
Temperature -10 to 210
Centigrade Pressure 1 to 200
bar Flow 1 to
10000 reciprocal seconds Time
ms to hours Enclosed small volume 20g
6
J Rheology 1995 Multipass steady mode.
Silicon oil
7
J Rheology 1995 Pressure dependant viscosity
silicon oil
8
J Rheology 1995 Linear viscoelastic response
Polymer solution
9
J Rheology 1995 Frequency response Polymer
solution
10
Steady Shear Response
MPR flow curves polymer melts
apparent viscosity vs shear rate polydisperse
polystyrene
PS680E at 200C
11
Polyethylene extrusion
A multi-pass steady-mode time profile of the
axial pressure difference and piston position
(piston speed 8.5 mms-1 piston amplitude
5.5 mm and idle time 3 seconds). The data was
obtained for a LLDPE at a temperature of 190oC
using a capillary of (L/a40/2).
Karen Lee 2001
12
3. Processing vs Simulation
Simulations used Polyflow Flowsolve In
conjunction with Prof Tom Mcleish Leeds
UK Rudyflow In conjunction with Dr Rudy Valette
CEMEF Sophia Antipolis France.
13
InSitu flow birefringence of polymer melts
Special optical cell as a central test
section Possibility to use polarised light for
visualisation of stresses by birefringence
1970s Han Drexler 1980s Wales
Mackley Meijer Agassant

Issues. 2D flow, Stress optical coefficient.
14
David Hassell
15
Flow
David Hassell 2006
16
(No Transcript)
17
(No Transcript)
18
(No Transcript)
19
(No Transcript)
20
Molecular Constitutive Equations Multi mode-Pom
Pom and Rolie Poly
21
Time 0.06 s
Time 2.76 s
Time 2.85 s
22
Pressure profiles
Rudy Valette
23
Pressure relaxation
Differential Pressure bars
compressible Carreau ( - - - ), incompressible
Rolie Poly ( ) and compressible Rolie Poly (
).
Rudy Valette
24
Absolute Pressure Prediction.
compressible Carreau ( - - - ), incompressible
Rolie Poly ( ) and compressible Rolie Poly (
).
Absolute Pressure bars
Time
Rudy Valette
25
4. Extensional Flow
26
The Cross Slot Geometry
Follow Eindhoven Group
27
Cross-Slot in the MPR
28
Apparatus Centre Section
Heating Oil Line
Quartz Window
Nitrogen Connection Flange
Cross-slot insert
Nitrogen line
29
Cross Slot- Lightly branched HDPE
David Hassell
30
Cross-Slot Stress build up
t time after beginning of flow
t 0s
t 0.26s
Black image no stress
Symmetric profile
Formation of cusps
Elongation of centreline fringes
31
Cross-Slot steady state
32
Simulation comparison Stress build up

• Lightly long chain branched PE

t time after beginning of flow

• Captures pattern of stress development,
• Over predicts the stress

POM-POM, q 1 and tb / ts 2 for all ?i modes
33
Crystallisation
34
David Hassell. slit crystallisation 2006
35
David Hassell Cross Slot crystallisation 2006
36
Relaxation spectrum?i contribution to zero
shear viscosity
