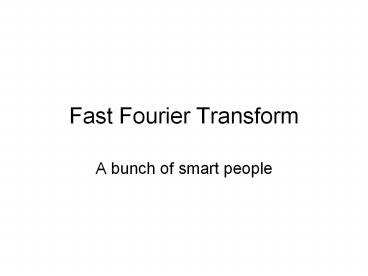

Fast Fourier Transform

• A bunch of smart people

2
Outline (hopefully)

• Finite discrete signals
• Linear shift-invariant filters
• Impulse responses
• Circular convolutions
• Discrete Fourier Transform
• The Fast Fourier Transform

3
Continuous signals
4
Finite signals

• Usually come from regular discretization

5
Finite signals

• Usually come from regular discretization
• Might as well think of them as vectors!

6
Discrete Fourier Transform
Complexity O(N2)
FFT is just an O(N log N) algorithm
7
Transformations on vectors
8
Transformations on vectors
Linear (i.e., matrices)
Shift invariant
(in a circular way)
9
Closer look at shift invariance
10
Closer look at shift invariance
L is shift invariant iff
11
The canonic basis of RN
12
How does matrix L look like?
h is the impulse response of L
It captures all information about L!
13
How does matrix L look like?
14
How do we multiply L by v?
This is why we care about convolutions!
15
The circular convolution
Complexity O(N2)
16
What we have so far

• We discretized a continuous function turning it
  into a vector in RN
• We defined a class of transformations from RN to
  RN that we care about
• Each linear shift-invariant transformations L can
  be written as a circular convolution
• The convolution is with the impulse response h of
  the transformation L
• We can compute it in O(N2)

17
This is too abstract!

• Want to make a recording of your voice sound as
  if you were inside a bathroom?
• Your bathroom transform sound in a linear, shift
  invariant way.
• Record the sound of a clap in the bathroom.
• Record your voice outside.
• Convolve the two signals!

18
Easy to do in Matlab

• a wavread('bathroom-ip.wav')
• b wavread('laugh.wav')
• a a / max(abs(a))
• b b / max(abs(b))
• c conv(a, b)
• c c / max(abs(c))
• p audioplayer(c, 44000)
• play(p, 1 length(c))

19
Better convolution strategy
O(N2)
Lv
v
convolution
FFT
IFFT
F-1LF F-1v
O(N)
F-1v
product
20
Diagonalizing L

• Need a basis of eigenvectors for L. Trick is to
  look at P first!
• Assume for now that P has distinct eigenvalues.
• If wi is an eigenvector of P, then it is also an
  eigenvector of L!

• Lwi is an eigenvector of P, with the same
  eigenvalue
• We must have

• wi is also eigenvector of L (for some other
  eigenvalue)
• Since P has a full set of wi, L is diagonalized
  by the same wi!

21
The eigenvalues of P
Indeed, P has a full set!
22
The eigenvectors wk of P
23
The eigenvectors wk of P
24
Better convolution strategy
O(N2)
Lv
v
convolution
FFT
IFFT
F-1LF F-1v
O(N)
F-1v
product
Not only does F exist. It does not depend on L!
25
How do F and F-1 look like?
26
How to compute F-1v?
27
The eigenvalues of L
Finally!!!
28
Discrete Fourier Transform
FFT is just an O(N log N) algorithm
29
Better convolution strategy
O(N2)
Lv
v
convolution
FFT
IFFT
F-1LF F-1v
O(N)
F-1v
product
30
Fast Fourier Transform
31
Fast Fourier Transform

• Coley and Tukey, 1965

• Gauss, 1805

32
Better convolution strategy
O(N2)
Lv
v
convolution
FFT
IFFT
F-1LF F-1v
O(N)
F-1v
product
33
Easy to do in Matlab

• a wavread('bathroom-ip.wav')
• b wavread('laugh.wav')
• a a / max(abs(a))
• b b / max(abs(b))
• c fftfilt(a, b)
• c c / max(abs(c))
• p audioplayer(c, 44000)
• play(p, 1 length(c))
