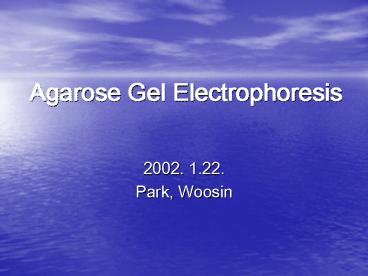

Agarose Gel Electrophoresis

1
Agarose Gel Electrophoresis

• 2002. 1.22.
• Park, Woosin

2
1. Principle

• DNA is cut up with restriction enzyme
• The DNA fragments are transferred
• through wells cut into a gel
• An electric charge is transferred through
• the gel. The negatively charged DNA
• fragments are repelled by the negative
• electrode and attracted to the positive
• electrode.
• As the size of fragment increases, the band
• appears near the negative electrode

3
2. Agarose gel

• Agarose gel conc. According to the size of DNA

Selected in this experiment
2.0 2g agar 100 ml TAE buffer
4
3. Making a gel plate (2.0 )

• Dissolve 2.0 g of agar powder into 100
• ml of TAE buffer
• Heat the mixture in a electric range at 600 w
• for 2 min
• Spread the solution 25 ml on a big plate and
• 10 ml on a small plate respectively and leave

• them in the air for 15 min
• Wells in the gel would be formed by using a comb

5

• Solidified agarose gel

Max. sample vol. 10 µl
Max. sample vol. 8 µl
Small gel plate
Big gel plate
6
4. Reagents

• DNA Ladder
• standard DNA showing the position of
• bands according to their lengths after
• electrophoresis
• Loading solution deep blue color
• Loading solution 1.8 µl (2.0 for big wells)
• sample 8 µl (10 for big wells) and 8 µl (10
• for big wells) of the mixture into each well
• One blank sample should be involved

7
Length
long
Size determination
short
Result of electrophoresis of DNA ladder
Sample 1
Sample 2
8
5. Condition for electrophoresis

• 100 v for 35 min or 50 v for 70 min

6. Dying

• Solution 2 µl Ethidium bromide TAE
• 200 ml
• Submerge the gel in the solution and
• shake very slowly for 20 -30 min

9
6. Trans-illumination with U.V.7. Take a picture
