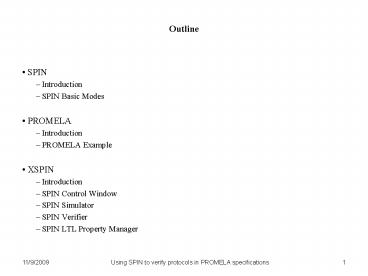

Outline

1
Outline

• SPIN
• Introduction
• SPIN Basic Modes
• PROMELA
• Introduction
• PROMELA Example
• XSPIN
• Introduction
• SPIN Control Window
• SPIN Simulator
• SPIN Verifier
• SPIN LTL Property Manager

2
SPIN

• SPIN is a popular open-source software tool that
  can be used for the formal verification of
  distributed software systems.
• The tool was developed at Bell Labs in the
  original Unix group of the Computing Sciences
  Research Center, starting in 1980.
• The software has been available freely since
  1991, and continues to evolve to keep pace with
  new developments in the field.
• The website of SPIN is found at
  www.spinroot.com.

3
SPIN Basic Modes

• SPIN can be used in three basic modes
• as a simulator, allowing for rapid prototyping
  with a random, guided, or interactive simulations

• as an exhaustive verifier, capable of rigorously
  proving the validity of user specified
  correctness requirements (using partial order
  reduction theory to optimize the search)
• as proof approximation system that can validate
  even very large system models with maximal
  coverage of the state space.
• All SPIN software is written in ANSI standard C,
  and is portable across all versions of Unix,
  Linux, cygwin, Plan9, Inferno, Solaris, Mac, and
  Windows.

4
PROMELA

• To verify a design, a formal model is built using
  PROMELA (a PROcess MEta LAnguage), served as
  input to SPIN.
• PROMELA is a non-deterministic language, loosely
  based on Dijkstra's guarded command language
  notation and borrowing the notation for I/O
  operations from Hoare's CSP language.

5
PROMELA Example

• This go-back-n sliding window protocol p5 follows
  the description from Tanenbaum. In file
  L2_gobackn1.txt is the PROMELA specification of
  that protocol, which includes some annotations to
  facilitate simulations.
• define MaxSeq 3 / window size /
• define Wrong(x) x (x1) (MaxSeq)
• define Right(x) x (x1) (MaxSeq 1)
• define inc(x) Right(x)
• /
  file ex.9 /
• chan q2 MaxSeq of byte, byte /
  message channel /
• active 2 proctype p5() / starts two copies
  of proctype p5 /
• The senders window size is defined as 3 2n
  -1, where n 2.
• In this example, there are 2 processes
  exchanging messages in bidirectional mode.
• q is an array of 2 (unidirectional) message
  channels. Each message channel can store up to 3
  messages. Each message consists of 2 bytes.

6
PROMELA Example

• active 2 proctype p5() / starts two copies
  of proctype p5 /
• byte NextFrame, AckExp, FrameExp, r, s,
  nbuf, i
• chan in, out
• in q_pid
• out q1-_pid
• xr in xs out / partial order
  reduction claims /
• do
• nbuf lt MaxSeq -gt / outgoing messages
  /
• q_pid?r,s -gt / incoming messages
  /
• timeout -gt / retransmission
  timeout /
• od
• Two channels of array q are assigned to each
  process as the input and output channels.
• Inside the loop is something like Dijkstra's
  guarded command language notation.

7
PROMELA Example

• nbuf lt MaxSeq -gt / outgoing messages
  /
• nbuf
• out!NextFrame , (FrameExp MaxSeq)
  (MaxSeq 1)
• inc(NextFrame)
• q_pid?r,s -gt / incoming messages
  /
• if
• r FrameExp -gt
• printf("MSC accept d\n",
  r)
• inc(FrameExp)
• else / ignore message /
• fi
• do
• ((AckExp lt s) (s lt
  NextFrame))
• ((AckExp lt s) (NextFrame lt
  AckExp))
• ((s lt NextFrame) (NextFrame lt
  AckExp)) -gt
• nbuf--
• inc(AckExp)
• else -gt break

8
PROMELA Example

• timeout -gt / retransmission
  timeout /
• NextFrame AckExp
• printf("MSC timeout\n")
• i 1
• do
• i lt nbuf -gt
• out!NextFrame , (FrameExp
  MaxSeq) (MaxSeq 1)
• inc(NextFrame)
• i
• else -gt break
• od
• To simplify the simulation, the start/stop
  activities of the timer associated with each
  outstanding message are all ignored in this
  specification.

9
XSPIN

• XSPIN is an optional, but highly recommended,
  graphical user interface to SPIN, written in
  Tcl/Tk.
• The easiest way to get started with SPIN is to
  use the graphical interface XSPIN.
• The graphical interface runs independently from
  SPIN itself, and helps by generating the proper
  SPIN commands based on menu selections.
• XSPIN runs SPIN in the background to obtain the
  desired output, and wherever possible it will
  attempt to generate a graphical representation of
  such output. XSPIN knows when and how to compile
  code for the model checkers that SPIN can
  generate, and it knows when and how to execute
  it, so there is less to remember.

10
SPIN Control Window
11
SPIN Simulation Styles

• Since PROMELA is a non-deterministic language,
  SPIN Simulator can run in three selected styles
  random, guided, or interactive.

12
SPIN Simulation Windows (interactive style)
13
SPIN Verification Options
14
SPIN LTL Property Manager
