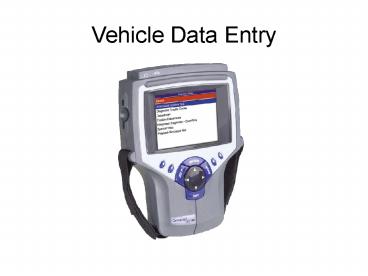

Vehicle Data Entry

1
Vehicle Data Entry
2
To perform Scan Tool functions scroll to Scan
Diagnostics and press Enter
Enter
Scroll to Scan Diagnostics
3
Scroll to the vehicle type you are working with
and press Enter
Enter
Scroll to USA Heavy Duty Standard
4
Scroll to the type Vehicle Connector, 9 Pin
Deutsch
Enter
Scroll to 9-Pin Deutsch
5
Press Enter if the correct connector has been
selected
Enter
6
Select the controller the vehicle is equipped
with, scroll to SAE J1939/CAN controller
Enter
Scroll to SAE J1939/CAN
7
Select the Computer you wish to test, scroll to
Engine and press Enter
Enter
Scroll to Engine
8
Select the correct cable to hook to the Vehicle,
hook up the cable, turn the ignition key on
9
For training purposes, press the Demo soft key
and then press Enter
Enter
Press the Demo soft key
