Submission of Pixel ROC in DSM

1

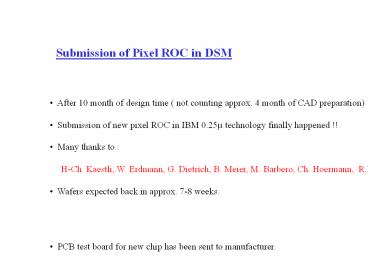

Submission of Pixel ROC in DSM

• After 10 month of design time ( not counting
  approx. 4 month of CAD preparation)
• Submission of new pixel ROC in IBM 0.25m
  technology finally happened !!
• Many thanks to
• H-Ch. Kaestli, W. Erdmann, G. Dietrich, B.
  Meier, M. Barbero, Ch. Hoermann, R.H.
• Wafers expected back in approx. 7-8 weeks.
• PCB test board for new chip has been sent to
  manufacturer.

2
Recticle of IBM-PSI46

• Recticle size 17400m x 21200m

ROC_C_TP

• 4 versions of ROC (A,B,C, C_TP)
• - various SEU power decoupling scenarios
• - Testpoint (TP) version of ROC_C
• SEU teststructures (2)
• HDI-LVDS-driver chip (2x)
• Kaptoncable-driver chip (3x)
• I2C-teststructures
• Analog readout chain teststructures
• Pixel teststructures (various)
• DAC,regulator,etc teststructures
• Bumpbonding alignement marks
• 62 recticles / 8 wafer

ROC_C
ROC_A
ROC_B
3
token out
HDI LVDS Driver Chip

• Chip size 2mm x 1mm
• Bandgap reference () voltage regulator
• Distributes 5 LVDS signals into 4 ports
• TBM replacement for first module tests
• Chip needs decoupling capacitors (2)
• Drives lines as capacitive loads

LVDS outputs
LVDS outputs
Reset (CMOS)
Reset (CMOS)
LVDS outputs
LVDS outputs
token out
() we thank group of P. Jarron , CERN
LVDS - inputs
4
Kapton Cable Driver Chip
LVDS input

• Chip size 3 mm x 1mm
• Bandgap reference () voltage regulator
• Drives 5 LVDS signals into transmission lines
• Back termination for Z 25 45 W
• Termination adjustment by 2 external resistors
• 4-bit setting (hex) of 0-3 nsec delay
• Chip needs decoupling capacitors (5x)
• Power dissipation 3 5 mA _at_ 2.5V

LVDS output
LVDS input
LVDS output
LVDS input
LVDS output
LVDS input
LVDS output
LVDS output
LVDS input
hex delay 0-3ns (wirebondable)
5
7900mm
DSM Pixel ROC
IBM_PSI46

• Chip considerable modified compared to DMILL
  version
• - should have uniform address levels
• External operation is same
• Less pads (35)
• - I2C clock only with 3 small reserve pads !
• less power voltages (2)
• less current ( 70mA)
• smaller in height ( 1mm)
• new features ( temp. sensor )

9800mm
6
SPICE simulation of complete chip

• extensive verifications simulations done ! !
• heavy CPU usage ! ! !

Analog out signal of ROC
7
Data losses of pixel ROC

• Original ROC design (TDR) was done for high
  lumi operation of 7cm layer!
• Use 0.25m ROC translation to optimize for new
  pixel size and 4cm radius !!

Data losses _at_ r4cm L1034 DMILL ROC DM_PSI43 150m x 150m pixel 0.25mm ROC IBM_PSI46 100m x 150m pixel
Timestamp ( buffers) 3.1 (8) 0.17 (12)
Data Buffers ( buffers) 0.1 (24) 0.15 (32)
Column Drain load cycle 3 0
Column Drain 3rd hit capability 1.4 0.25
Pixel overwrite 0.3 0.21
8
Parameters of new DSM Pixel Read Out Chip

• Chipname IBM_PSI46
• CMOS technology IBM 0.25mm, bulk, 5
  Metals (old DMILL_PSI43 0.8m BiCMOS, SOI, 2 Met
  )
• Size of final ROC layout 7900 m x 9800
  m (old DMILL_PSI43 7950m x 10800m )
• 52 x 80 pixel 4160 pixel (old
  DMILL_PSI43 52x53 pixel 2756 pixel )
• Pixel size (rj x z) 100 mm x 150 mm (old
  DMILL_PSI43 150m x 150m )
• Number of transistors 1280 K (old
  DMILL_PSI43 430 K )
• Number of supply pads 35 pads ( 175m
  pitch ) (old DMILL_PSI43 42 pads of 150m pitch
  )
• Number of external capacitors 2 (old
  DMILL_PSI43 6 )
• Number of supply voltages 2
  (2.5V,1.75V) (old DMILL_PSI43 4 (5V, 3.5V,
  3V, 2.5V) )
• Total supply current estim. 70 mA (old
  DMILL_PSI43 160 mA )

9
(No Transcript)
10
Pads of DSM ROC
Pad-No Signal Pad-size a i2c_clk small b i2c
_clk- small c i2c_clk_sel small 1 GND_CAP big
2 GND big 3 token_in big 4 token_in- big 5 r
eset big 6 aout big 7 aout- big 8 GND big
9 trig_out big 10 trig_out- big 11 CAP_VD big
12 cal_trig_res big 13 cal_trig_res- big 14 c
lk big 15 clk- big 16 VA big 17 VA big 18 V
C big 19 GND big 20 GND big 21 CAP_DAC big 22
i2c_a3 big 23 i2c_a2 big 24 i2c_a1 big 25 i2c_
a0 big 26 i2c_dat big 27 i2c_dat- big 28 token
_out big 29 token_out- big 30 CAP_dig_reg big
31 VD big 32 VD big 33 GND big 34 GND big 35
GND_CAP big
IBM_PSI46
11
Module dimensions for DSM ROC
12
Layout progress of HDI for new DSM Pixel ROC

• new HDI in the works ? expect submission
  Aug.03
• 3 layers design ( 7m Cu thick with 50 grid
  3-4m effective)
• try to design for good yield !
• improve mounting and bonding capability (
  lesson of 1st iteration)

13
Construction of DMILL modules
History of modules Module 00 PCB module, HDI ,
16 chips , dummy silicon sensor Module 0
Si-baseplate, HDI, 16 chips, silicon pixel
sensor (defect components) Module 1
Si-baseplate, HDI, 16 chips, silicon pixel
sensor (poor quality comp.) Module 2
Si-baseplate, HDI, 16 chips, silicon pixel
sensor (poor quality comp.) Module 3
Si-baseplate, HDI, 16 chips, silicon pixel
sensor (med. quality comp.) Module 4
Si-baseplate, HDI, 16 chips, silicon pixel
sensor (best quality comp)

• Fabrication of Module 1-4 with improved
  procedures and jigs
• HDI cables done with new module handles
• Chips bumpbonded and tested with 200g per chip
  pull test!
• Chip positions measured after bumpbonding (
  deviation lt 1-2m )

14
Module handles
15
Module handle on vacuum table
16
Module handles on vacuum table
17
HDI is placed held by vacuum to module
handle
18
TBM replacement, termination chips power cable
attached bonded
19
(No Transcript)
20
Kapton signal cable attached bonded
21
Details of TBM replacement chips (LVDS drivers)
22
Termination chips
23
Storage box for module-handles
24
Silicon baseplate with decoupling capacitors
25
Silicon sensor bumbonded to 16 chips
26
Final assembled pixel module
