Title: Distributed Services for Microsensor Networks

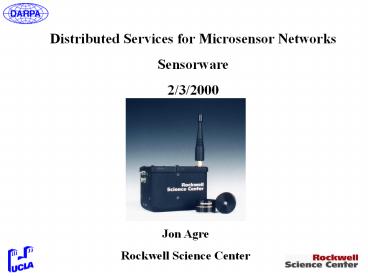

1
Distributed Services for Microsensor
Networks Sensorware 2/3/2000
Jon Agre Rockwell Science Center
2
Objectives for Sensorware
  • Improve Software Infrastructure for Sensor Nets
  • Deterministic Realtime Embedded Environment
  • Distributed Middleware Services
  • Scalable, Deterministic, Efficient, High
    Performance
  • Mobile Script Control
  • Demonstration of Distributed Services
    Technologies
  • Target Tracking with Mobile Script (using
    middleware services)

3
Related Microsensor Projects - Candidate
Software Functions for Middleware
  • DARPA AWAIRS
  • Multihop Routing, TDMA Protocol,
    Self-organization, Beamforming Algorithms
  • Synchronized Array Data Collection Application,
    Detection Network Application
  • ARL Sensors and Displays
  • Single-node Target Classification Algorithms for
    seismic, acoustic and magnetic,
  • Coordinate-based Displays, User Interaction
    Models, Hand-held Displays
  • Windows gateway (C)
  • Rockwell PLGR LAN
  • Multiple, slowly mobile user protocol (multihop)
  • GPS and positioning interface
  • ONR Condition-based Maintenance (CBM)
  • Machinery diagnostics with High speed vibration,
    temperature, pressure
  • Web-based control Interface (Java)
  • ONR Open Systems Architecture for CBM
  • Causal Network Diagnostics
  • Corba-based interface for distributed systems

4
Sensor Node Signal Processing Architecture
Alarms may be reported and awaken next layer
Beamformation
Fuse features with neighbors
cooperative
Query/corroborate with neighbors
Increasing Quality (decreasing false alarm
rate, increasing detection rate) Higher Power
Expended
Fuse multiple on-module sensors
autonomous
Process single sensor
Continuous sample, HW filter, threshold compare
5
User Interaction with Microsensor Network
Examples
  • Inform sensor system to save/expend energy
  • no enemy activity expected go to low alert (or
    vice versa high alert)
  • friendlies or noncombatants entering zone ignore
  • coverage by another sensor sleep
  • unimportant area of operations for some duration
  • Adjust energy expenditure in different dimensions
  • adjust level of decision detail (coarse - fine),
    both continuous and event-based
  • adjust required minimum latency (including
    heartbeat)
  • adjust required system lifetime
  • Ask for more detail from one or a small set of
    select nodes
  • Inform network of likely targets - adjust
    Bayesian priors
  • Inform network of spatial character expected of
    targets
  • Inform network of new target type - provide new
    template
  • Provide network new signal processing software
  • Command network to increase covertness (LPD/LPI)
  • remain radio silent until T minutes after target
    leaves area

6
User Interaction with Microsensor Network
(continued)
  • Inform network of conditions it cannot
    autonomously determine
  • from external sources weather (hail, snow,
    etc.), muddy terrain, animal movements, etc.
  • Manually aid decisioning based on explicit
    knowledge or inference
  • deduce 2 reported targets are actually one
  • help resolve target type based on deduction or
    fusion with external sources
  • Inform network of impending addition of more
    nodes (overseeding) and when to expect it to
    occur
  • network can expend more energy in anticipation of
    resupply
  • will adjust network entry access protocol to
    speed process and save energy
  • disconnected networks can anticipate bridging
    (merging)

Lifetime
User selects performance
Rapidity of info (latency -1)
Detail and/or Certainty
7
Situation Awareness in MOUT
Exercise at Ft Benning McKenna MOUT Facility
8
GPS Receiver Local Area Network (PLGR-LAN)
  • Low cost situational awareness and messaging tool
    for the warfighter.
  • Allows for localized C2 for the squad or platoon
    in an urban environment
  • Can also be used with distributed sensors to
    provide additional intelligence gathering and
    alerting capabilities.

Rockwell Collins
9
Condition-based MaintenanceFailure Prediction
for Individual Units and Complex Systems
  • Condition-based Maintenance/Failure Prediction
  • Motor Failure Prediction
  • Process Monitoring
  • High Value / Critical Asset Monitoring
  • Systems Monitoring
  • CBM / FP Provides for
  • Substantial Maintenance, Logistics and
    Unscheduled Down-time Cost Savings
  • Manpower Reduction
  • Increased Safety

10
Internet-based Demonstration of WINS for CBMWINS
Nodes In Chilled Water Pump Room
Ten wireless nodes transmit temperature and
vibration information to the basestation node -gt
internet server http//wins.rsc.rockwell.com
Web Server
Basestation Node
11
Internet-based Demonstration of WINS for CBM WINS
Network - Main Screen
Java Applet running on WINS webpage. http//wins.r
sc.rockwell.com
Sensor Node Icons present summary color-coded bar
graphs of bearing health indicators for quick
problem identification.
Gray colored icons are motors that are presently
turned off.
12
Poll sensor nodes for another test result
Adjustable scale settings
Double clicking on icon brings up Bearing
Diagnostics Detail Screen
Bearing Diagnostics Report
Baseline Reading
Largest Reading
Ball Pass Frequency, Inner Race Fault frequency
and 19 harmonics
13
ONR OSA-CBM Overall Program Goals
  • Develop an integrated, condition based monitoring
    (CBM) system
  • define the software infrastructure (or
    middleware)
  • define groups of software interfaces for each
    OSA-CBM layer
  • use existing standards if available
  • define non-existing standards
  • Demonstrate OSA-CBM capability
  • demonstrate capability and usability of developed
    standards on different diagnostic platforms (RSC
    Nodes)

14
OSA/CBM (PROPOSED)
MIMOSA OPC STEP
Presentation layer is the man/machine interface.
May query all other layers.
PRESENTATION
HTML XSL
Decision support utilizes spares, logistics,
manning etc. to assemble maintenance options.
DECISION SUPPORT
Prognostics considers health assessment,
employment schedule, and models/ reasoners that
are able to predict future health with certainty
levels and error bounds.
PROGNOSTICS
NETWORK
HEALTH ASSESSMENT The lowest layer of embedded
human intelligence
Health Assessment is the lowest level of goal
directed behavior. Uses historical and CM values
to determine current health. Multi-site
condition monitor inputs.
OSA/CBM XML Schema
CONDITION MONITORThe highest layer of machine
data
CM gathers SP data and compares to specific
predefined features. Highest physical site
specific application.
SIGNAL PROCESSING
Signal Processing provides low-level computation
on sensor data.
Data Acquisition- conversion/ formatting of
analog output from transducer to digital word.
May incorporate meta-data. Ala. 1451.X
DATA ACQUISITION
1451.X
SENSOR MODULE
The Vertical Arrows indicate Process (Logic)
flow, the Red Arrows indicate Network
(connection) flow.
TRANSDUCER
Transducer converts some stimuli to electrical
signal for entry into system.
15
Sensorware Progress
  • Task 1 Requirements Definition
  • SensorWare Operating System selected after
    evaluation
  • MicroC/OS - C-based, open source, lightweight,
    realtime OS, modifiable
  • Base middleware capabilities being defined in
    conjunction with SenseIT
  • Several specialized sensor network services
    defined
  • System Coverage
  • Signal Processing Architecture Stack (from
    AWAIRS)
  • Synchronized Sampling
  • Spatial-based Communication
  • Implementation of middleware will be in both
    Windows CE and MicroC/OS
  • Task 2 Low Level APIs
  • Draft version of C-based API document
  • Architecture improvements - (e.g., interrupt
    handling, radio interface) - Coding in progress
  • API Implementation - Coding initiated
  • Reference Applications (Dlog, Detection Net) -
    Coding in progress
  • System and software provided to UCLA
  • Port of Gateway DLL to Windows CE - Nearly
    complete
  • Emulation of PlatformConnect Windows CE to allow
    execution of SenseIT - Coding
  • Sensor.com API will be supported as feasible

16
Sensorware Progress (cont)
  • Task 3 Middleware Services
  • Mobile Scripting implementation - (UCLA)
  • New Coverage determination algorithm under
    investigation
  • Task 4 Sensor Node Improvements
  • New Processor Board
  • Increased SRAM (1 Mb) and Flash (2 Mb)
  • Parallel Bus Interface
  • Two RS-232, USB, Watchdog
  • New Sensor Modules
  • Acoustic
  • Accelerometer
  • New Package Design
  • Rechargeable batteries
  • Solar power
  • Task 5 Demonstration and Integration
  • Target tracking with mobile scripts
    demonstration on track
  • Joint demonstration of capabilites planned with
    DSN Project (ISI, VaTech, UCLA)

17
Improved Sensor Package
Solar Cell
Acoustic
GPS
Geo
Radio
Magnetic
Processor
Seismic
Power Supply
Batteries
Design Only
Power Supply (TOP)
Parallel Interface
Sensor Side
Processor (Bottom)
Processor (Top)
Serial Interface
18
Middleware Services
  • Base Services (Defined in Conjunction with
    SenseIT)
  • Communications Protocol Stacks
  • Signal Processing Stack
  • Power Management
  • User Interaction
  • Network Synchronization
  • Query Processing
  • Configuration (Bootup, health status,
    maintenance)
  • Fault Tolerance
  • Security/Authentication
  • Specialized Services
  • Mobile Script
  • System Coverage (Sensing)
  • Synchronized Sampling
  • Spatial-based Communication

19
What is Middleware?
  • Middleware Working Definition A software
    function(task) that satisfies
  • At least two applications use the function, or
  • the applications need to run on at least two
    different type platforms
  • Middleware has two primary functions
  • Stitch together low-level APIs (Platform
    Dependent) to implement service transparently to
    application
  • Provide distributed resource management/allocatio
    n (Field Organization)
  • e.g., More global knowledge is necessary
  • Network-wide power management
  • Computation performance optimization

20
Middleware Example
Need to Synchronize Samples of A and B and Send
to C for Processing
Application
SampleSynch(A,B) RouteData(A,C) RouteData(B,C)
Middleware
SendMsg(A,synch(B)) SendMsg(B,synch(A)) SendMsg(A,
RouteData(C)) SendMsg(B,RouteData(C))
Low Level APIs (at Source)
SendMsg(M2, synch (A,B)) SendMsg(M2,
ReturnData((A,B),C)
M2SendMsg(A,B, synch) M2SendMsg(A,B ReturnData)
M2SendMsg(A,B,Sample) ... ASendMsg(M1, Data)
BSendMsg(M1, Data) M2Msg(M1,RouteData(C))
ASendMsg(B, synch) ASendMsg(B, ReturnData(C)
ASendMsg(B, Sample)... ASendMsg(i, Data(C))
BSendMsg(i, Data(C))
Low Level APIs (at Node Participants)
A
D
A
M2
D
Physical Layer
M1
Master Cluster
B
Peer-to-peer
B
C
C
21
Coverage Service
  • Sensor Coverage Performance Characterization
  • Boundaries (perimeters)
  • Density
  • Susceptibility to Breach
  • Scalability
  • Bounded answer quantization/compression
  • Bounded Messaging Throughout Process of
    Determining Answer
  • Spatially bounded query/response
  • Algorithm
  • Distributed, incremental computation
  • Guaranteed termination
  • Efficient communications network support
  • Instantiation
  • Global characterization executed at bootup
  • User-activated query
  • Generalization
  • Viewpoint-dependent resolution distributed
    database updates

(Assume that each sensor node knows its
position.)
22
Coverage Performance Characterization
  • Coverage Boundaries
  • Given sensor detection range R, find the curve(s)
    that enclose the area covered by the sensors.
  • Generally there may be many curves due to
    holes concern for scalability.
  • Density of Sensor Field
  • Define in terms of distances associated with
    Voronoi vertices.
  • Susceptibility to Breach
  • A breach will be attempted between a given
    origin and destination. If the path having the
    least likely detection is taken (a geodesic),
    what is the detection probability?
  • Optimal path will occur along Voronoi edges.
  • Generalization Origin/destination selected from
    point set (e.g., line segment or region)

Approximate coverage boundary
Sensor node site
Breach origin
Breach destination
Radius of Delaunay circle characterizes Voronoi
vertex
23
Conclusion
  • All Tasks on track or ahead of schedule
  • Team in place and working with prototype sensor
    nodes and user interface software
  • Several new subtasks incorporated to insure
    integration with other SensIT projects
  • Joint demonstrations with DSN team (ISI, VaTech,
    UCLA) planned for August FY00, FY01 and FY02
  • Target Tracking with Mobile Scripts planned for
    August Demonstration
Write a Comment
User Comments (0)
About PowerShow.com
