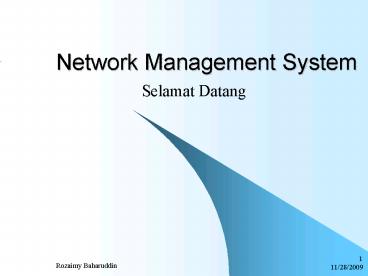

Network Management System

1
Network Management System

• Selamat Datang

2
Module

• Module 1 Introduction to Networking System
• Module 2 Networking Technology
• Module 3 Implementing And Managing Network
  System
• Module 4 Network Management System
• Module 5 Structured Cabling System
• Module 6 Firewall Management System
• Module 7 Windows NT Core Technologies
• Module 8 Network Troubleshooting And Diagnostics

3
Lecturer

• Rozaimy Baharuddin (19 24/5)
• Zamri Budiman (19 22/5)
• Bakhtiar Abdul Hamid (22 24)
• Md Razlan Md Raffi (22 24)

4
Overview

• The Networking System Management training has
  been designed for Polytechnics Lecturers.
• It is intended to provide an understanding of the
  network fundamentals, technologies in networking,
  structured cabling system and networking
  components.
• At the end of the course, participants will be
  able to design, build, administer and trouble
  shoot their network system.

5
Windows NT Core Technologies

• Installation and Implementation
• User and Group Management Workstation
• Domain Environment
• System Configuration
• Peripheral Management
• Disk and File Management

6
Network Management System

• Understanding of the Network Management Software
  and hardware platform Define ways to apply
  training
• System configuration of the NMS network
  management station
• Describe the function of HP Open View Network
  Node Manage (NNM)
• Understanding of the Network View feature for low
  cost ownership

7
Introduction to Networking System

• Describe the definitions of networking
• Understanding of OSI Networking Seven Layer
• Describe the components of networking system
  (Cabling, Repeater, Hub, Switch and Router)
• Understanding the different between repeater,
  hub, switch and router
• Understanding switch type in switch.

8
Introduction to Networking System - continue

• Understanding the concept of data communication
  (Flow control, Windowing, CSMA, ARP, RARP etc)
• Describe type of network topology (Bus, Ring,
  Star and Hybrid)
• Understanding of networking type (LAN, WAN, MAN,
  Internet, Intranet and Extranet)
• Describe type of protocol (RIP, TCP, UDP, OSPF
  etc) G\tcp simulation\AVIS\TCPIP.EXE
• Managing IP addressing and subnetting
• The features and benefits of networking
  systemG\tcp simulation\AVIS\SLIDE.EXE

9
Networking Technology

• Network Architectures
• Understanding of 10Base-T Technology
• Understanding of Fast Ethernet Technology
• Understanding of ATM Technology
• Understanding of Gigabit Technology
• Understanding of Wireless Technology
• Network Connectivity Devices

10
Implementing And Managing Network System

• Perform common setup operation via CLI (Command
  Line Interface)
• Configure and verify IP (Internet Protocol) and
  SNMP (Simple Network Management Protocol)
• Observe and interpret Web Console and device
  management
• Explain the purpose and general features of key
  high-speed Ethernet technologies such as trunking
  and 802.1Q frame tagging
• Understanding and configuration of IP, IP
  Multicast, RIP, OSPF and Static Route

11
Network Troubleshooting And Diagnostic

• Understanding network troubleshooting technique
• Using Network Analyzer for network
  troubleshooting
• Using Fluke equipment for monitoring and
  troubleshooting network problem
• Using utilities command from operating systems
  such as ping, tracert, arp and nbtstat

12
Firewall Management System

• Explain the purpose and architecture of firewall
• Installing Firewall (smoothwall)
• Configuration and setting up firewall policy

13
Structured Cabling System

• Understanding data communication/network medium
• Describe the concept of Structured Cabling System
  and networking standard
• Network cabling component
• Unshielded-Twisted Pair (UTP) Cabling System
• Fiber Optic Cabling System
• Cable Testing Equipment
• Perform full test of cables testing to meet the
  standard

14
Web Site

• www.komputer.com.my
• www.kedai.com.my
• windowsupdate.microsoft.com
• www.smoothwall.org
• openview.hp.com
