Title: Visual C Sharp File IO 1

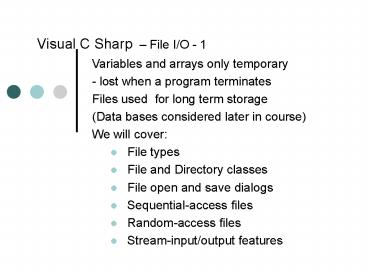

1
Visual C Sharp File I/O - 1
  • Variables and arrays only temporary
  • - lost when a program terminates
  • Files used for long term storage
  • (Data bases considered later in course)
  • We will cover
  • File types
  • File and Directory classes
  • File open and save dialogs
  • Sequential-access files
  • Random-access files
  • Stream-input/output features

2
Visual C Sharp File I/O - 2
  • File Types Text (ASCII) or Binary
  • Text files - ASCII characters with CR and LF.
  • Handled in a line-by-line, or sequential manner.
  • Binary Files - Typed and Untyped files
  • Binary files all values - cant be displayed -
    .EXE file.
  • Typed files - known format using data types -
    database. Untyped files - no rigid structure,
    sizes can vary.
  • E.g. EXE program files, BMP bitmap graphic files.
  • - Program using it knows how to deal with it.

3
Visual C Sharp File I/O - 3
  • Files and streams
  • C views files as a sequential stream of bytes.
  • File ends with EOF marker or after a byte count.
  • You open the file, read and write to it, then
    close it.
  • Uses StreamReader and StreamWriter Classes
  • They implement methods to read and write files.
  • Similar classes used to read/write to Internet or
    serial I/O

4
Visual C Sharp File I/O - 4
  • File and Directory Classes (static classes)
  • Can perform Directory or File handling
  • Directory
  • CreateDirectory, Delete, GetFiles, Exists
  • File
  • Exists does file exist?
  • Create creates file
  • CreateText creates a text file
  • AppendText appends or creates
  • Delete deletes the file
  • Open opens with desired R / W attributes
  • OpenRead opens for read-only
  • OpenText returns StreamReader (later)
  • OpenWrite returns FileStream (later)
  • Need using System.IO

5
Visual C Sharp File I/O - 5
  • First of all Menu and Dialog controls
  • Text Editor example
  • MenuStrip control used to create menus (File Edit
    Help)
  • C has FileDialog controls open and save files
  • OpenFileDialog SaveFileDialog
  • Rich Text box control will display text files
  • RT box has more functions than textbox cut,
    paste etc.

6
Visual C Sharp File I/O - 6
  • File Dialog controls
  • Open and Save dialogs
  • non visual (not on form appear when program
    runs)
  • ShowDialog displays the familiar open and save
    dialogs

7
Visual C Sharp File I/O - 7
  • MenuStrip control
  • Enter required main menu commands (File, Edit,
    Help)
  • Add submenus FilegtOpen, Help gt About etc.
  • To add code click File, double-click Open
  • Add code
  • if (openFileDialog1.ShowDialog( ) !
    DialogResult.Cancel)
  • richTextBox1.LoadFile(openFileDialog1.FileName,
  • RichTextBoxStreamType.PlainText)
  • // more detail later
  • ShowDialog method displays the familiar file
    handling dialog

8
Visual C Sharp File I/O - 8
  • Code to display FileDialogs. Use
  • openFileDialog1.ShowDialog( ) and
  • saveFileDialog1.ShowDialog( )
  • Need to check for OK or Cancel.
  • if (openFileDialog1.ShowDialog( ) !
    DialogResult.Cancel)
  • // filename is openFileDialog1.FileName
  • N.b.
  • File I/O needs namespace using System.IO

9
Visual C Sharp File I/O - 9
  • Open/Save File dialog properties
  • CheckFileExists, DefaultExt InitialDirectory
    etc.
  • File filter. Can set in code
  • openFileDialog1.Filter "All files
    (.).Text files(.TXT).txt"

10
Visual C Sharp File I/O - 10
  • Rich Text Box file handling
  • Easiest way to open and save text files is to use
    RTB
  • Open file
  • if (openFileDialog1.ShowDialog() !
    DialogResult.Cancel)
  • richTextBox1.LoadFile(openFileDialog1.FileName,
    RichTextBoxStreamType.PlainText)
  • RTB has methods, e.g
  • RTB.Find method finds strings in RTB (Search)

11
Visual C Sharp File I/O - 11
  • Rich Text Box file handling Save file
  • For MenuStrip FilegtSave, add
  • if (saveFileDialog1.ShowDialog( ) !
    DialogResult.Cancel)
  • RichTextBox1.SaveFile(saveFileDialog1.FileNam
    e,
  • RichTextBoxStreamType.PlainText)
  • Text editor created in a few lines of code.

12
Visual C Sharp File I/O - 12
  • Using StreamReader to read file into RichTextBox
  • StreamReader streamRdr new
    StreamReader(openFileDialog1.FileName)
  • richTextBox1.Text streamRdr.ReadToEnd( )
  • streamRdr.Close( )
  • Writing file using StreamWriter
  • StreamWriter streamWr new
  • StreamWriter(saveFileDialog1.FileName)
  • streamWr.Write(richTextBox1.Text)
  • streamWr.Close( )
  • Why use? may not want to use RT box to read file

13
Visual C Sharp File I/O - 13
  • Example code snippet read file
  • string filename
  • filename txtFilename.Text // read from textbox
  • if ( File.Exists(filename) )
  • string inputString File.ReadAllText(fileName)
  • textBox1.Text inputString

14
Visual C Sharp File I/O - 14
  • Example code snippet - write
  • string filename
  • filename txtFilename.Text // read from textbox
  • if ( File.Exists(filename) )
  • File.WriteAllText(filename, txtFileName.txt)
  • textBox1.Text inputString

15
Visual C Sharp File I/O - 15
  • Binary files
  • // Read
  • byte fileByteArray new byte1000
  • fileByteArray File.ReadAllBytes("test.bin")
  • // have to do something with the binary files to
    display them
  • // could split into upper and lower nibbles and
    add 40hex
  • // makes chars _at_ABC.. MNO
  • // To Write
  • File.WriteAllBytes("test.bin", fileByteArray)

16
Visual C Sharp File I/O - 16
  • Sequential-Access File Handling
  • Non-text files? E.g. Student record (integer,
    string, double)
  • Could create our own Record, Class, or even
    object for this.
  • Search - Start at beginning and read data until
    its found
  • Maybe necessary to do this lots of times
  • How do we save Objects?
  • Tell compiler our Class can be saved as bytes
    Serializable attribute
  • FileStream class used to writing of binary data
  • (instead of StreamReader/Writer)

17
Visual C Sharp File I/O - 17
  • Random Access File Handling
  • Allows instant access to information
  • - Individual records accessed without searching
    through file
  • Easiest when all records are a fixed length
  • Data can be inserted without destroying other
    data in file
  • Records can be updated without rewriting the
    entire file
  • Uses file-position pointer - points to next byte
    to be read or written - can be repositioned to
    any point in file
  • Uses class BinaryWriter and BinaryReader instead
    of serialization
  • By attaching a FileStream to it, bytes can be
    read/written directly to a file

18
Visual C Sharp File I/O - 18
  • Exception handling
  • Exceptions File may not exist, divide by zero,
    convert alpha string to number
  • Use Try .. Catch code
  • int number1123, zero 0
  • try
  • number1 number1 / zero
  • catch (DivideByZeroException)
  • MessageBox.Show("Something's
    wrong here")

19
Visual C Sharp File I/O - 19
  • Summary
  • File types
  • File and Directory classes
  • MenuStrip control
  • Text Editor example RTBox
  • Open / Save Dialogs
  • Files and Streams
  • Sequential-access files
  • Random-access files
