Stochastic Clustering for Organizing Distributed Information Sources

1

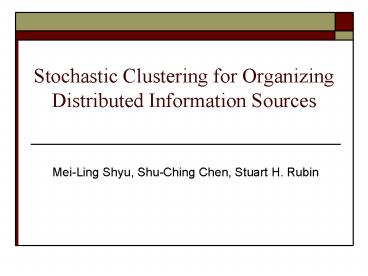

Stochastic Clustering for Organizing Distributed
Information Sources

• Mei-Ling Shyu, Shu-Ching Chen, Stuart H. Rubin

2
Motivation

• Efficiently and effectively navigate and retrieve
  information in a distributed information
  environment.
• Clusters provide a structure for organizing the
  large number of information sources for efficient
  browsing, searching, and retrieval.
• Each cluster shall show similarities in the data
  access behavior. That is, information sources in
  each cluster are expected to provide most of the
  required information for user queries that are
  closely related with respect to a particular
  application.

3
Two Basic Concepts

• Clustering
• Markov Model

4
Clustering

• Clustering is a process of grouping the data into
  clusters so that items within a cluster have high
  similarity in comparison to one another, but are
  very dissimilar to items in other clusters.
• Example

Clustering Result
5
Markov Model
State
Transition 0.22, 0.8, 0.9. Transition
Probability between States
Initial State Probability
6
Markov Model (cont.)
7
Markov Model (cont.)
How to pronounce the word of?
Observation Symbol (Output
Symbol) The probability of the word of is
pronounced ov is .7 x .9 .63
8
Map Markov Model to Database E-R Model
9
Database Markov Model
BranchInfo
State
Observation Symbol (Output Symbol)
Transition
Name
10
State Transition Probability
BranchInfo
T
T
T
T
T is the transition probability between states.
Database access log information is used to
compute T. It is subject to the affinity
relationship between entities in the database.
That is, when two entities are access together
more frequently, they are said to have a higher
relative affinity relationship and also a higher
transition probability.
11
Observation Symbol Probability
BranchInfo
Matrix BB
B
B
B
B
12
Observation Symbol Probability
BranchInfo
Normalized Matrix BB
B
B
B
B
13
Initial State Probability
BranchInfo
I
I
I is the initial state probability. It is defined
as the fraction of the number of occurrences of
entity m with respect to the total number of
occurrences for all the member entities.
14
Distributed Database Markov Chain
BranchInfo
ProductInfo
15
Browsing Graph

• Each information source is represented as a
  node.
• An arc connecting two nodes implies that two
  information sources have structurally equivalent
  entities.
• Two entities are said to be equivalent if they
  deemed to possess the same real world states.

16
Structurally Equivalent Entities
BranchInfo
ProductInfo
Company and Manufacturer are structurally
equivalent.
17
Similarity Measure
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
18
Stationary Probability

• is the stationary probability of each node
  on Markov chain.
• It is obtained from similarities S between
  nodes.
• First-order Markov Model is applied. The
  probability a node is chosen is only dependent on
  the last node on the chain but not on other
  previous chosen nodes.

19
Stochastic Clustering

• Browsing graph traversal based and greedy.
• Procedure
• Sort information sources according to stationary
  probabilities.
• Information source with highest stationary
  probability starts a cluster.
• Information source with next highest stationary
  probability that is accessible from starting node
  on browsing graph is added to the cluster.
• When the cluster fills up to a predefined size,
  next unclustered information source in the list
  starts a new cluster.

20
Experimental Results

• MMM proposed
• algorithm
• MCST maximum
• cost spanning tree
• MCC maximum
• cost chain connection
• BFS breadth first
• search
• DFS depth first
• search
• Random randomly
• generated sequence
• Single-Link
• Complete-Link
• Group-Average-Link
• BEA bond energy
• algorithm

number of inter-cluster accesses
Cluster Size
21
Conclusion

• The paper introduced a stochastically-based
  framework, MMM mechanism.
• Designed a conceptual information source
  clustering algorithm for a distributed
  information environment.
• A cluster consists of several related
  information sources are usually required for
  queries in the same application domain.
• Empirical studies shows that MMM mechanism
  performs best among the tested algorithms since
  it yields the smallest number of intercluster
  accesss.
