Air Quality Considerations

1

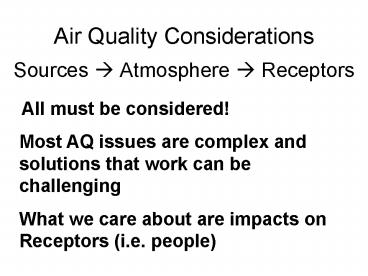

Air Quality Considerations

• Sources ? Atmosphere ? Receptors

All must be considered! Most AQ issues are
complex and solutions that work can be
challenging What we care about are impacts on
Receptors (i.e. people)
2
Sources

• No source no pollution!
• Amount, configuration, characteristics all
  important
• Total discharge of a particular source may not be
  as important as other factors (e.g. elevation of
  emission, distance from population)

3
Atmosphere

• Acts to dilute, disperse, transform, remove
  pollutants, as well as transporting them between
  source and receptor
• Most AQ episodes are due to atmospheric
  conditions, not emission changes
• Inversions and light winds associated with High
  Pressure systems cause episodes in PG

4
Receptors

• Where pollution is received and has impact (where
  people live and work)
• Different pollutants will have different impacts
  (e.g. PM vs TRS)
• Health issues, environmental degradation,
  visibility, nuisance / odor, etc.

5
Air pollution in the boundary layer

• There are several important emission properties
  amount, physical and chemical nature of
  pollutants, shape of emission area, duration of
  releases, effective height at which injection of
  pollutants occurs.
• After release, the dispersion of pollutants is
  controlled by turbulence or atmospheric motion.
• Stability, wind speed, roughness are some of the
  key atmospheric parameters, whereas wind
  direction variability determines the extent of
  wind spreading.

6

• While in the atmosphere, pollutants may undergo
  physical and chemical transformations that are
  related to meteorological characteristics water
  vapour/cloud, temperature, incoming solar
  radiation, etc.
• The removal of pollutants by precipitation
  (scavenging), by settling/absorption and
  impaction is related to the state of the
  atmosphere.
• In general the atmosphere is highly dispersive.

7
Oke (1987)
8
Sulfur Components

• Mostly SO2 (sulfur dioxide), H2S (hydrogen
  sulphide), but also sulfurous (H2S3) and sulfuric
  (H2SO4) acid.
• SO2 is a waste product from fuel burning.

9
Oxides of Carbon (COx)

• Carbon monoxide (CO) arises from incomplete
  combustion.
• Carbon dioxide (CO2) is a product from fossil
  fuel burning.

10
Hydrocarbons

• The most natural hydrocarbon is from
  decomposition of vegetation.
• It is also produced by combustion of fossil fuels
  and evaporation of gasoline.

11
Oxides of Nitrogen (NOx)

• Nitrogen oxides are naturally produced during
  decomposition.
• Anthropogenic releases accompany combustion of
  fuel -- nitric oxide (NO) which oxidizes to give
  nitrogen dioxide (NO2).
• This is a brown irritant from cars, coal,
  fertilizers, etc.

12
Particulates

• Approximately 90 of particulates are natural,
  and the other 10 have an anthropogenic source.
• Because of their weight, particulates tend to
  settle out near their source.
• Particles lt 10 µm can remain suspended longer,
  and those lt 1 µm may be in suspension for several
  days (such as during haze).

13
Other Pollutants

• In addition, there are a number of minor
  pollutants emitted in small quantities -- because
  of toxicity these may be significant (e.g.,
  hydrogen fluoride, fertilizers, toluene (paint
  and solvents), radioactive substances, ammonia
  (chemical fertilizer).
• There are also secondary pollutants that are
  created by chemical reactions in the atmosphere
  (between pollutants or between pollutants and
  natural constituents).
• For instance ozone (O3), peroxyacetyl nitrate
  (PAN) and aldehydes arise from photochemical
  reactions.

14

• Cars are the largest source of pollutants in
  North America so that the pollutant mix is
  dominated by CO, NO, NO2, HC and particulates.
• Add sunlight to the mix and the result is
  photochemical smog and secondary pollutants.
• Also require information on the source
  configuration ? shape, duration, height (point
  source, line source, area source).

15
Oke (1987)
16
Atmospheric Controls

• Largely controls vertical movements of
  pollutants.
• Unstable ? large eddies ? enhanced vertical
  diffusion.
• Stable ? decreased turbulence and diffusion.
• Presence of inversions is very important for
  vertical diffusion.
• There are several types of inversions 1)
  surface-based, nocturnal 2) subsidence warming
  and 3) advective (such as associated with warm
  fronts, advecting warm air over a cold surface).
• The latter are not as important for air pollution
  as the air is usually in movement.

17
Oke (1987)
18
Oke (1987)
19
Effect of wind

• Wind diffuses pollutants by stretching them along
  the wind direction.
• Wind speed also enhances turbulence, and thus
  vertical and horizontal diffusion.
• Variations in wind direction are also important
  as they lead to sinuous plumes

20
Oke (1987)
21
Oke (1987)
22

• The greatest potential for pollution is in low
  wind situations because horizontal transport and
  turbulent diffusion are both curtailed.
• Local circulations (land/sea breezes etc.) are
  not good pollution ventilators because they are
  associated with low wind speeds, they are closed
  systems, and there usually is a diurnal reversal
  ? pollution comes back.

23

• Depending on local meteorology, pollution may
  recirculate, thus increasing concentration over a
  period of days.
• Topography and/or climate conspires to limit
  ventilation (e.g., Vancouver, Prince George, Los
  Angeles, or Mexico City).

24
Pollutant removal

• Gravitational settling removes particulates gt 1
  µm, with those gt 10 µm settling quickly.
• Gaseous pollutants can be absorbed onto particles
  and removed with them.
• Deposition (surface absorption) is a turbulent
  transfer (flux) of pollution to the ground,
  analogous to heat, water vapour, etc., fluxes.

25

• Fp - KP ??/?z
• Where Fp is the pollutant flux that depends on
  the eddy diffusivity of the matter (Kp) and on
  the pollutant (?) concentration gradient.
• Another mechanism for pollutant removal is
  through precipitation that scavenges pollutants
  from the air.
• This effectively cleanses the air of gases and
  small particulates, some of which may become
  condensation nuclei for raindrops or snowflakes.
  Falling precipitation can also collect material
  (washout).

26
Processes of pollutant transformations

• This is a complex and not well understood topic
  (atmospheric chemistry).
• Two transformations of importance are
• 1) transformations of the oxides of sulfur ?
  sulfurous (London-type smog).
• 2) transformation of the oxides of nitrogen and
  hydrocarbons ? photochemicals (L.A. - type
  smogs).

27

• SO2 is a primary pollutant from the combustion of
  fuels ? oxidizes to form sulfur trioxide (SO3)
  that reacts with water vapour (H2O) in the
  presence of catalysts to form sulfuric acid mist
  (H2SO4).
• H2SO4 may combine with other things to form
  sulfate particles which settle out.
• An exceptional example occurred in London, in
  1952, where over a period of 4-5 days about 4000
  people were killed.

28

• From action of solar radiation on nitrogen oxides
  in the presence of secondary pollutants (ozone,
  oxygen, NO2, peroxyacetyl nitrates PAN)
• Odour, brownish haze (NO2 and particles), and
  throat irritations (O3), aldehydes, PAN), plant
  damage (O3, NOx, PAN, ethylene)
• Fullest expression is in low latitude (lots of
  solar radiation) in urban environments (lots of
  cars).

29
Air Quality Issues in Prince George
30
Air Quality Management

• Goal is to lower ambient levels of particular
  pollutants to a level sufficient to protect
  health, environment and quality of life
• Decision makers have to weigh information from
  various sources and experts, as well as
  potentially competing interests (e.g. health,
  environment, economy) on behalf of the public

31
BC Ambient Air Quality Objectives
32
1.
2.
3.
4. Also for PM2.5 Canada Wide Standard in
2010 will be 98th percentile of 30 µg / m3
averaged over 3 years (can exceed 30 only
2 of the time 7 days / year)
33
PG Topography

• PG in a bowl
• bowl restricts free mixing of air and dilution
  of pollution
• especially under inversion conditions and light
  winds

34

• Annual wind roses

35
source 2007 and 2003 Annual Air Quality Report
for Prince George, BCMOE

• TRS the smell
• Dominant source
• is pulp mills

36
source 2007 Annual Air Quality Report for
Prince George, BCMOE
37
(No Transcript)
38
Particulate Matter What is it?

• An airborne atmospheric particle
• PM10 - a particle of 10 microns, about 1/5th the
  width of a human hair.
• PM2.5 - a particle of 2.5 microns, about 1/20th
  the width of a human hair
• BC Ministry of Health has called PM single
  greatest air pollution problem in BC
• PM10 travels into the lungs and cause a variety
  of respiratory problems
• PM2.5- penetrates the respiratory system deeper
  and is therefore more of a problem than the sizes
  gt 2.5 microns

39

• PM size distribution is bi-modal.
• coarse mode generally results from mechanical
  breakdown of larger particles
• fine mode generally results from combustion
  processes and secondary particulates

Source Seinfeld (1986)

• PM2.5 is about 15 dust and the rest from
  combustion it can be used as a measure of
  ambient conditions due to combustion sources
• The coarse fraction (PM10 PM2.5) comprises 85
  of the dust

40
Typical PM2.5 Components

• Geological Material suspended dust consists
  mainly of oxides of Al, Si, Ca, Ti, Fe, and other
  metal oxides.
• NaCl salt is found in PM near sea coasts, and
  after de-icing materials are applied.
• Sulfate secondary particulate resulting from
  conversion of SO2 gas to sulfate-containing
  particles.
• Nitrate secondary particulate resulting from a
  reversible gas/particle equilibrium between NH3,
  HNO3, and particulate ammonium nitrate.

• Ammonium ammonium bisulfate, sulfate, and
  nitrate most common.
• Water (liquid) soluble nitrates, sulfates,
  ammonium, sodium, other inorganic ions, and some
  organic material absorb water vapor from the
  atmosphere.
• Organic Carbon (OC) consists of hundreds of
  separate compounds containing mainly carbon,
  hydrogen and oxygen.
• Elemental Carbon (EC) composed of carbon
  without much hydrocarbon or oxygen. EC is black,
  often called soot.

Chow and Watson, 1997
41
PM Bottom Line

• Smaller particles (PM2.5) are worse than larger
  particles (coarse part of PM10)
• Particles from combustion more harmful than
  particles from dust
• Many sources of PM are hard to quantify

42
Sources of PM

• Industrial processes
• Dust
• Locomotive engines
• Heating
• On-road mobile
• Burning
• Chemical transformations of gases (e.g. SO2) to
  sulfate (secondary particulates)
• Many others
• Diversity of Sources Makes PM difficult to manage!

43
Draft Emission Inventory (with rail emissions
revised, but further changes have also been
identified)
44
PM10 2007 (continuous)
BC Rail
Plaza
Gladstone
45

• Plaza PM10

46
PM2.5 2007 (continuous)
Plaza
Gladstone
47

• Plaza PM2.5

48
PM10 comparison with other BC communities
Risk factor is a relative health index
normalized to 2000 average values based on
increments gt 25 ug/m3
source 2004 Annual Air Quality Report for
Prince George, BCMOE
