A Hidden Markov Model for Progressive Multiple Alignment

1

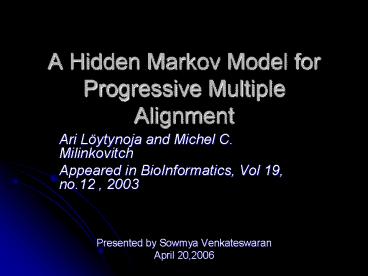

A Hidden Markov Model for Progressive Multiple
Alignment

• Ari Löytynoja and Michel C. Milinkovitch
• Appeared in BioInformatics, Vol 19, no.12 , 2003
• Presented by Sowmya Venkateswaran
• April 20,2006

2
Outline

• Motivations
• Drawbacks of existing methods
• System and Methods
• Substitution Model
• Hidden Markov Model
• Pairwise Alignment using Viterbi Algorithm
• Posterior Probability
• Multiple Alignment
• Results
• Discussion

3
Motivation

• Progressive alignment techniques are used for
  Multiple Sequence Alignment
• Used to deduce the phylogeny.
• Identify protein families.
• Probabilistic methods can be used to estimate the
  reliability of global/local alignments.

4
Drawbacks of existing Systems

• Iterative application of global/local pairwise
  sequence alignment algorithms does not guarantee
  a globally optimum alignment.
• A best scoring alignment may not correspond with
  true alignment. Hence reliability of a
  score/alignment needs to be inferred.

5
System and Methods

• The idea is to provide a probabilistic framework
  for a guide tree and define a vector of
  probabilities at each character site.
• Guide tree is constructed by using Neighbor
  Joining Clustering after producing a distance
  matrix. It can also be imported from CLUSTALW.
• At each internal node, a probabilistic alignment
  is performed. Pointers from parent to child sites
  are stored and so also is a vector of
  probabilities of the different character states(
  A/C/T/G/- for nucleotides or the 20 amino acids
  with a gap)

6
Substitution Model

• Consider 2 sequences x1n and y1m, whose
  alignment we would like to find and their parent
  in the guide tree is z1l.
• Pa(xi) is the probability that site xi contains
  character a.
• Pa(xi) 1, if a character a appears at
  terminal node, else it is 0.
• At internal nodes, different characters have
  different probabilities summing to 1.
• If the observed character is ambiguous,
  probability is shared among different characters.

7
Emission Probabilities

• Pxi,yj represents the probability that xi and yj
  are aligned.
• pxi,yjpzk(xi,yj)?pzka(xi,yj)
• Pzka(xi,yj)qa?bsabpb(xi)?bsabpb(yj)
• qa is the character background probability
• sab, probability of aligning characters a and b,
  is calculated with the Jukes Cantor Model
• sab1/n (n-1)/n e (n/n-1) v when ab
• sab1/n - 1/n e (n/n-1) v when a?b
• n is the size of the alphabet ,
• v is the NJ-estimated branch length

8
Probabilities

• To find pxi,- , the probability that zk evolved
  to a character on one of the child sites and a
  gap on the other child is
• pzka(xi,-)qa?bsabpb(xi)sa-
• The same applies for pxi,-. sa- is computed
  just like sab.
• Any other model can be used for calculation of
  sab, instead of the Jukes Cantor Model. Ex PAM
  (20 X 20) substitution matrix can be modified to
  include gaps and transformed to a (21X21) matrix,
  and the substitution probabilities can be derived
  from that.

9
Hidden Markov Model
X pxi,-
e
d
1-e
M pxi,yj
1-2d
1-e
d
Y p-,yj
e
10
Hidden Markov Model

• d probability of moving to an insert state (gap
  opening penalty) lower the value, higher the
  penalty.
• e probability of staying at an insert state
  (gap extension penalty) again, lower the value,
  more the extension penalty.
• pxi,yj ,pxi,- , p-,yj emission frequencies for
  match, insert X and insert Y states.
• For testing purposes, d and e were estimated from
  pairwise alignments of terminal sequences such
  that d1/2(lm1) and e1-1/(lg1) lm and lg are
  the mean lengths of match and gap segments.

11
Pairwise Alignment

• In this probabilistic model, the best alignment
  between 2 sequences corresponds to the Viterbi
  path through the HMM.
• Since there are 3 states in the model, and each
  state needs 2-D space, we have 3 2-D tables vM
  for match states, vX and vY for the gap states.
• A move within M, X or Y tables produces an
  additional match or extends an existing gap. A
  move between M table and either X or Y table
  closes or opens a gap.

12
Viterbi Recursion

• Initialization
• v(0,0) 1, v(i,-1) v(-1,j)0
• Recursion
• vM(i,j) pxi,yj max (1-2d) vM(i-1,j-1),
• (1-e) vX(i-1,j-1),
• (1-e) vY(i-1,j-1)
• vX(i,j) pxi,- max d vM(i-1,j),
• e vX(i-1,j)
• vY(i,j) p-,yj max d vM(i,j-1),
• e vY(i,j-1)
• Termination
• vEmax(vM(n,m),vX(n,m),vY(n,m))

13
Viterbi traceback

• At each cell, the relative probabilities of
  entering the different cells are stored. Ex
• pM-M (1-2d) vM(i-1,j-1)/N(i,j)
• where N(i,j) is the normalizing constant,
  given by
• N(i,j)(1-2d) vM(i-1,j-1)(1-e)vX(i-1,j-1)
  vY(i-1,j-1)
• The above equation is calculated for each of the
  3 tables
• Trace back algorithm used to find the best path
  a match step will create pointers from the parent
  site to the child sites, and a gap step will
  create pointer to one and a gap for the 2nd child
  site.

14
Posterior Probabilities-Forward algorithm

• Forward algorithm-sum of probabilities of all
  paths entering a given cell from the start
  position.
• Initialization
• f(0,0)1f(i,-1)f(-1,j)0
• Recursion
• i0,,n j0,,m, except (0,0)
• fM(i,j) pxi,yj (1-2d) fM(i-1,j-1) (1-e) (
  fX(i-1,j-1) fY(i-1,j-1))
• fX(i,j) pxi,- d fM(i-1,j) e fX(i-1,j)
• fY(i,j) p-,yj d fM(i,j-1) e fY(i,j-1)
• Termination
• fEfM(n,m)fX(n,m)fY(n,m)

15
Backward algorithm

• Sum of probabilities of all possible alignments
  between subsequences xin and yjm.
• Initialization
• b(n,m)1 b(i,m1) f(n1,j) 0
• Recursion
• in,,1 jm,,1, except (n,m)
• bM(i,j) (1-2d) px(i1),y(j1) bM(i1,j1)
• d px(i1),- bX(i1,j) p-,y(j1)
  bY(i,j1)
• bX(i,j) (1-e) px(i1),y(j1) bM(i1,j1) e
  px(i1),- bX(i1,j)
• bY(i,j) (1-e) px(i1),y(j1) bM(i1,j1) e
  p-,y(j1) bX(i1,j)

16
Reliability Check

• Assumption Posterior probability of the sites on
  the alignment path is a valid estimator of the
  local reliability of the alignment since it gives
  the proportion of total probability corresponding
  to all alignments passing through the cell (i,j).
• Posterior probability for a match is given by
• P(xi?yjx,y) fM(i,j) bM(i,j) / fE
• where fM and bM are the total probabilities of
  all possible alignments between subsequences x1i
  and y1j and xin and yjm respectively
• Similar probabilities are calculated for Insert
  X and Insert Y states too.

17
Multiple alignment

• Each parent node site has a vector of
  probabilities corresponding to each possible
  character state (including the gap). For a match,
• pa(zk)pzka(xi,yj)/?bpzkb(xi,yj)
• Pairwise alignment builds the tree progressively,
  from the terminal nodes towards an arbitrary
  root.
• Once root node is defined, trace-back is done to
  find multiple alignment of the nodes below since
  each node stores pointers to the matching child
  sites.
• If a gap occurs in one of the internal nodes, a
  gap character state is introduced in all of the
  sequences of that sub-tree, and recursive call
  will not proceed further in that branch.

18
Testing

• Algorithms tested on
• (i) simulated nucleotide sequences
• 50 random data sets generated using the program
  Rose. A root random sequence (length 500) was
  evolved on a random tree to yield sequences of
  low (no. of substitutions per site 0.5) and
  high (1.0) divergences. Also, the
  insertion/deletion length distribution was set to
  short or long.
• (ii) Amino acid data sets from Ref1 of the
  BAliBASE database. Ref1 contains alignments of
  less than 6 equi-distant sequences, i.e., the
  percent-identity between 2 sequences is within a
  specified range with no large insertion or
  deletion. Datasets were divided into 3 groups
  based on lengths, and further into 3 based on
  similarities.

19
Results of Simulation on Nucleotide Sequences
20
Type1 and Type 2 errors vs. minimum posterior
probability
21
Performance and Future Work

• ProAlign performs better than ClustalW for the
  nucleotide sequences, but not for amino acid
  sequences with sequence identity less than 25.
• Possible reasons may be that the model does not
  take into account, the protein secondary
  structure. So, the HMM can be extended to
  modeling protein secondary structure too.
• Minimum posterior probability correlates well
  with correctness can be used to detect/remove
  unreliably aligned regions
