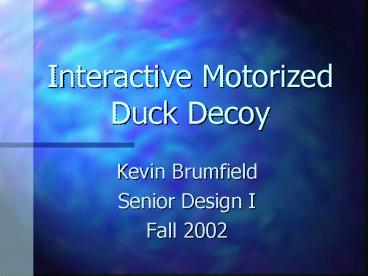

Interactive Motorized Duck Decoy

1
Interactive MotorizedDuck Decoy

• Kevin Brumfield
• Senior Design I
• Fall 2002

2
Team

• Team Leader
• Kevin Brumfield
• Team Members
• Bill Harned
• Abdul Mohamed
• Mark Williams

• Faculty Advisor
• Dr. Jeff Casady
• Sponsors
• Mike Gowan
• Michael Dean

3
Abstract

• Our goal is to design an improved radio
  controlled duck decoy. The duck decoys features
  will consist of variable speeds, ability to tow
  other decoys, and preprogrammed routes for
  hands-free operation.
• By doing so the decoy will provide a more
  effective and enjoyable means of duck hunting.

4
Task Breakdown
5
Previous Project

• Design
• Two DC motors (H-Bridge)
• Rechargeable battery pack
• Operation on one frequency

6
Previous Project

• Requirements
• 10 hours of operation
• 45 yard range
• Tow 3 decoys
• Operation on a single frequency

7
Previous Project

• Problems
• Straight Movement
• Battery Life
• Control
• Circuit Stability

8
New Design

• One DC motor to operate propeller
• One servo motor to operate rudder
• Standard AAA batteries (rechargeable) or 7.2
  rechargeable battery pack
• Variable Speed control
• Pre-programmed routes
• Operation at different frequencies
• Implement the use of a keel

9
Improvements

• Longer battery life
• Programmed movement
• One-hand operation
• More than one duck operating at a time
• Variable speeds
• Better maneuverability

10
Requirements

• RF Transmitter/Receiver System
• Operating frequency of 75 MHz
• Range
• Operation of over 150 feet (50 yards)
• Load Capacity
• 4 plastic decoys

11
Requirements

• Range of motion
• DC motor
• Rudder

12
Controller Chart
13
Transmitter

• Back of Transmitter

• Chip Integration

4-input Switch
14
Programmable route variables

• Channel 1 (Ch1) 4 low order bits of
• 8-bit output
• Channel 2 (Ch2) 4 high order bits of
• 8-bit output

15
Requirements

• Preset Movement
• Movement of the four programmed buttons

16
Software Flowchart
17
Chip Integration

• Powered through existing remote control power
• Requires a 5V voltage regulator
• Integrated to transmitter via switch
• Switch from preprogrammed routes to joystick

18
Microcontroller

• PIC 16F627
• Provides timing functionally
• Space (memory) for custom programming
• Compiling software included
• University provides equipment to program chip

19
Digital to Analog Conversion

• DAC needed from PIC to transmitter
• Can build DAC using R2R ladder
• Cost efficient
• Customizable to our needs

20
Example of Route

• To implement a L shaped pattern (12 seconds)
• Ch. 2 (DC motor) will run the entire duration (12
  sec.)
• Ch. 1 (servo motor / rudder) will not run until 8
  sec. has passed, then run for 4 sec.

21
Decoy Chart
22
DC Servo Motors

• DC Motor
• 20 Turn Double Wound
• 30 faster than the typical stock motor
• less windings produce a faster motor
• Double wound produces more Torque
• Servo Motor
• General purpose needed
• Cost effective

23
Requirements

• Power for decoy and remote
• Power to last for one day of hunting (est. 6-7
  hours)
• Frequency Change
• Implemented through the use of a crystal change
• Cost
• 180 Selling price of the decoy
• Competitive cost with todays market

24
Circuit Prototype
25
Duck Decoy Prototype
26
Summary

• Build a better decoy than what is currently on
  the market
• More functionality
• Live duck characteristics
• Cost effective

27
Acknowledgements

• We would like to thank the following people
• Bill Buchanan
• Jeff Casady
• Billy Collier
• Michael Dean
• Mike Gowan
• MFJ Enterprises

28
Questions?
