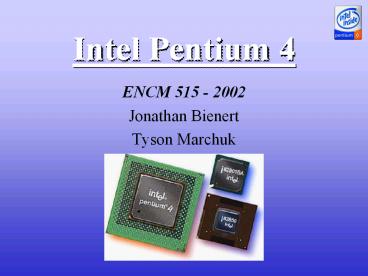

Intel Pentium 4

1
Intel Pentium 4

• ENCM 515 - 2002
• Jonathan Bienert
• Tyson Marchuk

2
Overview

• Product review
• Specialized architectural features (NetBurst)
• SIMD instructional capabilities (MMX, SSE2)
• SHARC 2106x comparison

3
Intel Pentium 4

• Reworked micro-architecture for high-bandwidth
  applications
• Internet audio and streaming video, image
  processing, video content creation, speech, 3D,
  CAD, games, multi-media, and multi-tasking user
  environments
• These are DSP intensive applications!
• What about uses other than in PC?

4
Hardware Features(NetBurst micro-architecture)

• Hyper pipelined technology
• Advanced dynamic execution
• Cache (data, L1, L2)
• Rapid ALU execution engines
• 400 MHz bus
• OOE
• Microcode ROM

5

6
Hyper Pipeline

• 20-stage pipeline!!!
• breaks down complex CISC instructions
• sub-stages mimic RISC
• faster execution

7
Filling the pipeline...

• Review of next 126 instructions to be executed
• Branch prediction
• if mispredict must flush 20-stage pipeline!!!
• branch target buffer (BTB)
• 4K branch history table (BHT)
• assembly instruction hints

8
Cache

• 8KB Data Cache
• L1 Execution Trace Cache
• 12K of previous micro-instructions stored
• saves having to translate
• L2 Advanced Transfer Cache
• 256K for data
• 256-bit transfer every cycle
• allows 77GB/s data transfer on 2.4GHz

9
Rapid ALU Execution Engines

• 2 ALUs
• allow parallel operations
• Many arithmetic operations take 1/2 cycle
• each 2X ALU can have 2 operations per cycle

10
Software Features

• Multimedia Extensions (MMX)
• 8 MMX registers
• Streaming SIMD Extensions (SSE2)
• 8 SSE/SSE2 registers
• Standard x86 Registers
• EAX, EBX, ECX, EDX, ESI, etc.
• Register rename to over 100

11
MMX (Multimedia Extensions)

• Accelerated performance through SIMD
• multimedia, communication, internet applications
• 64-bit packed INTEGER data
• signed/unsigned

12
SSE2 (Streaming SIMD Extensions)

• Accelerate a broad range of applications
• video, speech, and image, photo processing,
  encryption, financial, engineering, and
  scientific applications
• 128-bit SIMD instruction formats
• 4 single precision FP values
• 2 double precision FP values
• 16 byte values
• 8 word values
• 4 double word values
• 2 quad word values
• 1 128-bit integer value

13
SIMD Example(16-tap FIR filter - Real numbers)

• Applications for real FIR filters
• general purpose filters in image processing,
  audio, and communication algorithms
• Will utilize SSE2 SIMD instruction set

14
Thinking about SIMD

• SSE2 instruction format is 128-bits
• 128-bit SSE2 registers
• Many data formats!
• What precision do we want?
• Lets use 32-bit floating point for coefficients,
  input, output
• 4 data sets x 32-bit 128 bits

15
Parallelizing

• Require many single multiplications (coefficients
  x inputs), then add the results for output!
• Multiplications
• then need to perform additions...

16
Using SSE2 format

• Can hold 4 elements of an array (of 32-bit data)
  in each 128-bit register
• 4 single precision floating point ops per cycle
  (32-bit)

17
Additions...

• In both registers, now have 4 32-bit results
• First add the results into an accumulator
  register
• 4 single precision floating point ops per cycle
  (32-bit)

18
Additions...

• In a register, now have 4 32-bit results
• however, NO SSE2 instruction to add these 4!
• But can use other instructions
• Some BIT INTERTWININGthen add
• This will give results for several output values!


19
ADI SHARC 21k vs. P4

• Disadvantages
• Slower clock speed (40MHz vs 2400MHz)
• Less opportunities for parallelism (5 vs 11)
• Much less memory (Cache and System)
• Limited algorithm applicability
• Limited applications
• Older (Less support compiler)
• 1994 vs 2001

20
ADI Sharc 21k vs. P4

• Advantages
• Hardware loops
• Easier to program for optimal speed
• Cheaper
• Lower power consumption
• Runs cooler

21
FIR Performance

• Hard to obtain P4 performance numbers
• Can estimate based on 2 FP multiplies per clock,
  clock rate and assumption that pipeline can be
  kept full.
• 2 2.4GHz 4.8 billion multiplies per second
• If 4 multiplies per element 44000 samples/s
• FIR length gt 25k taps
• SHARC gt 200 taps (Lab 4)
• Factor of 125x

22
IIR Performance

• Hard to obtain P4 performance numbers
• No hardware circular buffers
• Does have BTB, BHT, etc.
• Prefetches 256bytes ahead of current position in
  code.

23
FFT Performance

• Hard to obtain P4 performance numbers
• Prime95 uses FFT to calculate Lucas-Lehmer test
  for Mersenne Primes
• Involves FFT, squaring and iFFT, etc.
• 256k points on P4 2.3GHz 10.517ms
• Compare to SHARC 2048 point FFT 0.37ms
• If SHARC could do 256k, 46.25ms (But)

24
Optimization Example

• Hard to optimize Pentium 4 assembly
• Example of multiplying by a constant, 10
• Taken mainly from www.emulators.com/docs/pentium_
  1.htm

25
Multiplying by 10

• Slowest way
• IMUL EAX, 10
• Usually optimal way (Visual C 6.0)
• LEA EAX, EAXEAX4
• SHL EAX, 1
• Shift Add Shift
• On most x86 processors takes 2 cycles
• Pentium MMX and before 3 cycles
• On Pentium 4 takes 6 cycles!

26
Multiplying by 10

• Optimal for Pentium 4
• LEA ECX, EAX EAX
• LEA EAX, ECXEAX8
• On most x86 still takes 2 cycles
• On Pentium 4 takes 3 cycles (OOE - ?Ops)
• But on older processors Pentium MMX and before
  this now takes 4 cycles!

27
Multiplying by 10

• Best generic case
• LEA EAX, EAX EAX4
• ADD EAX, EAX
• On most x86 still takes 2 cycles
• On older processors Pentium MMX and before this
  now takes 3 cycles again
• On Pentium 4 this takes 4 cycles
• Obviously really hard to optimize

28
REFERENCES

• Intel application note AP 809 - Real and Complex
  Filter Using Streaming SIMD Extentions
• graphics from http//www6.tomshardware.com/cpu/0
  0q4/001120/p4-01.html
